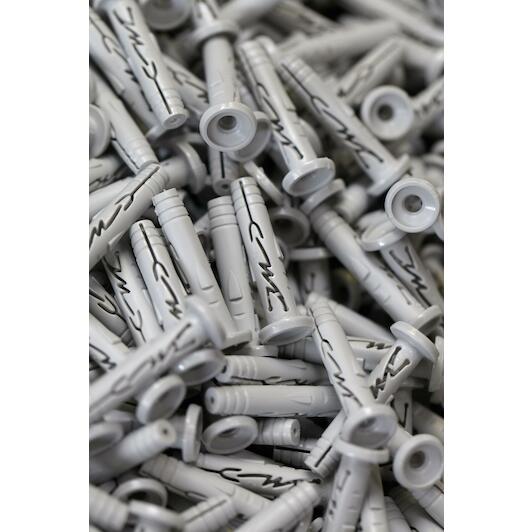

Product description
- High-performance percussion plug with collar for in all materials
- Easy to install and suitable for all materials
- CE certified percussion plug
- Spreading through hammer blows
- Perfect pressure due to flat collar
- Very good performance in hollow materials
- Flat finish due to countersunk head
- Available with large collar (Hit M-P20)
Applications

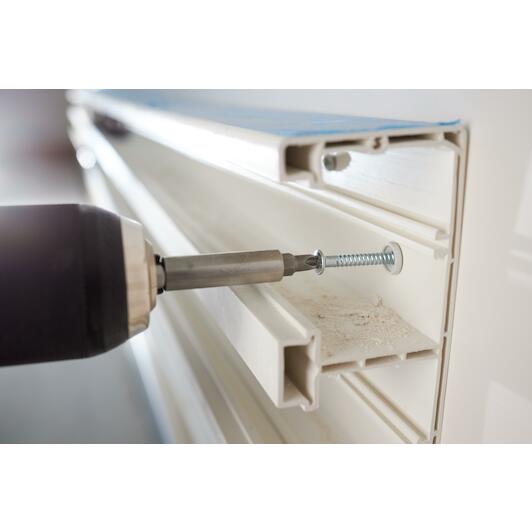

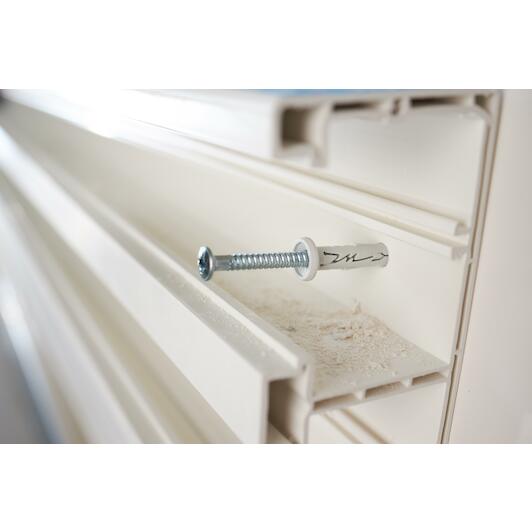

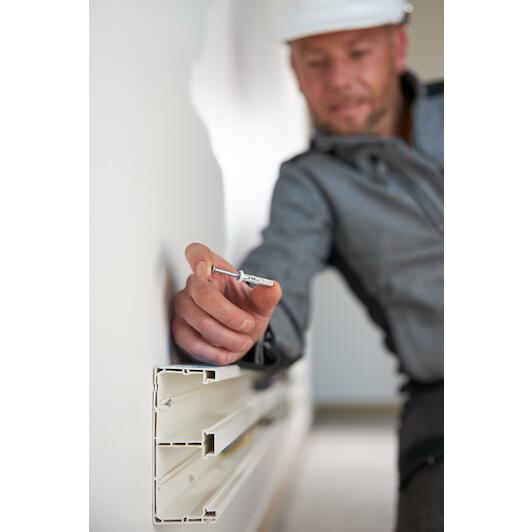

- Electrical installations

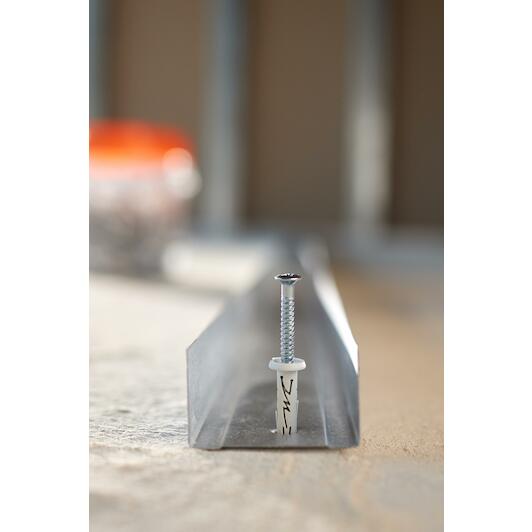

- Metal stud profile
- Beams and rafters
- Signalling
- Insulation supports
- Skirting boards
Key features according to our expert
-
Length (Wall plug): 92 mm
-
Material (wall plug): Plastic
-
Wall plug type: Hammer-in plug
-
With screw: Yes
-
With collar: Yes
-
Application: Brick; Aerated concrete
-
type (screw head): PZ2
-
Drilling diameter: 8 mm
Specifications / All features
-

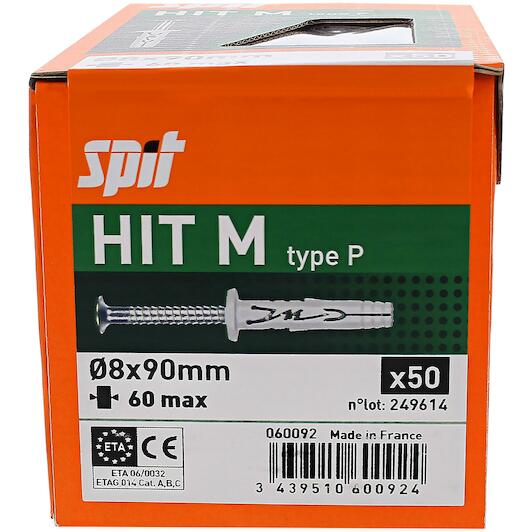

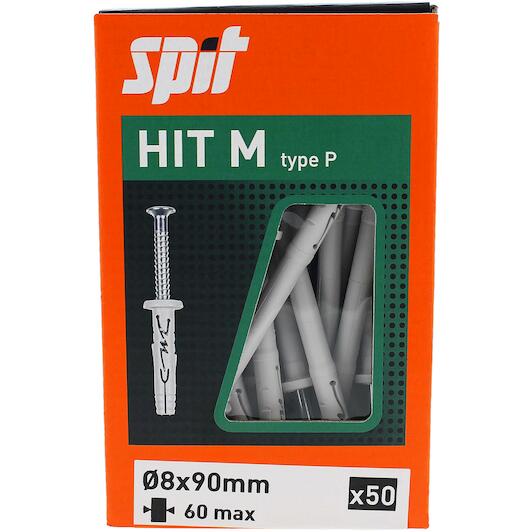

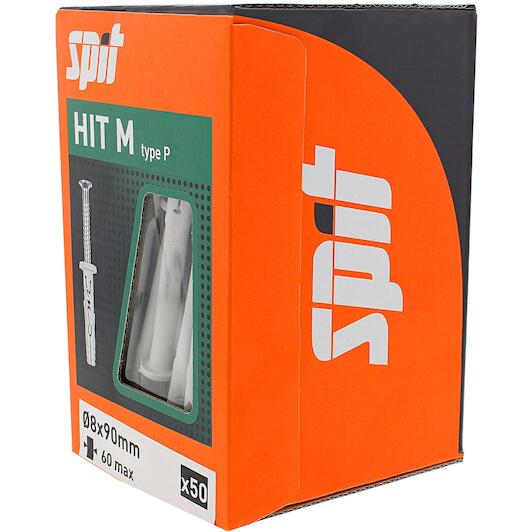

Brand:
SPIT
-
02608971
-
EAN:
3439510600924
-
Supplier number:
SPIT 060092
- Length (wall plug)
- 92 mm
- Material (wall plug)
- Plastic
- Wall plug type
- Hammer-in plug
- With screw
- Yes
- With collar
- Yes
- Application
- Brick; Aerated concrete
- Type (screw head)
- PZ2
- Drilling diameter
- 8 mm
- Maximum trapping
- 60 mm
- Bit size
- PZ 2
- Anchoring depth
- 30 mm
- Product material
- Nylon
- Anchor diameter
- 8.0 mm
- Min. anchor distance
- 100 mm
- Base material colour
- PURPLE
- Head type
- Flat head
- Minimum drilling depth
- 40 mm
- Min. thickness of base material
- 100 mm
- Surface treatment
- Galvanised
- Drill diameter
- 8.0 mm
- Maximum installation depth
- 30 mm
- Throughput diameter
- 8 mm
- Anchor length
- 92 mm
- Head diameter
- 13.0 mm
- Min. edge distance (mm)
- 100 mm
