Which threaded rod diameter is this anchor capsule designed for?

This Spit anchor capsule is designed specifically for M12 threaded rods.

What drill hole diameter and depth are required for this capsule?

For this 110 mm M12 capsule, use a 14 mm drill bit and a minimum drilling depth of 110 mm.

Do you need an injection gun to apply this capsule?

No, the pre-dosed capsule is inserted directly into the hole and the threaded rod is driven in mechanically.

Which substrates are suitable for the MAXIMA+ capsule?

It is suitable for heavy-duty anchoring in concrete and natural stone.

Can this chemical capsule be used in damp conditions?

Yes, the Spit MAXIMA+ capsule is suitable for installation in wet and damp drill holes.

SPIT 060206 MAXIMA+ capsule M12

Name: SPIT 060206 MAXIMA+ capsule M12
Brand: SPIT
SKU: 02949668
Price: 2.12 EUR
Availability: InStock

Supplier number: SPIT 060206 | EAN 3439510602065

2.12 tax incl.

€1.75 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 10.

Ordered before 20:00 - delivered as of 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable chemical anchoring in concrete

Practical benefits

Ready without injection tools: You install threaded studs quickly without an injection gun, thanks to the exact pre-dosed glass capsule system.
Ideal for damp conditions: You complete secure fastenings even in wet drill holes and during demanding overhead ceiling applications.
Strong and durable hold: You create high-strength anchors in concrete designed for heavy-duty M12 threaded rods.

In a nutshell

The right choise for

With the Spit MAXIMA+ anchor capsule M12X110, you create heavy-duty chemical anchors in concrete and natural stone quickly and cleanly. Because each glass capsule is pre-dosed for an M12 threaded rod, you do not need an injection gun or mixing nozzle. Simply insert the 110 mm capsule into a 14 mm drill hole and drive the threaded stud in mechanically. This eliminates resin waste and prevents messy dripping during overhead ceiling applications. Furthermore, the high-performance mortar bonds reliably even in wet or damp drill holes, allowing you to secure structural steel columns, balustrades, and heavy machinery without placing expansion stress on the surrounding substrate.

Product information FAQ

€2.12

In stock - tax incl.

Key features according to our expert

For diameter: 12 mm
Length: 110 mm
ADR class: 3
UN number: UN1866
Principal hazard property: GHS02 Flammable
ADR packing group: III
P-statements: P201; P202; P210; P260; P264; P280; P301 + P312; P303 + P361 + P353; P305 + P351 + P338; P308 + P313; P330; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501
Hazard class: GHS02 Flammable; GHS07 Harmful or irritant; GHS08 Health hazard
Physical state: Liquid
Flash point: 33 °C
Packaging: Cartridge
H-statements: H226; H302; H315; H317; H319; H360D; H372

Product description

Heavy-duty chemical capsule
Excellent performance and fast installation, all-in-one, easy-to-use complete system
ETA approved for non-cracked concrete from M8 to M30
Without injection system for easy and fast installation
No waste, no loss of product
Individual dose, you buy what you need
Capsule system; easy in ceiling applications
Ideal for installation in wet and humid conditions

Applications

20-month shelf life reduces waste
Constructive anchoring

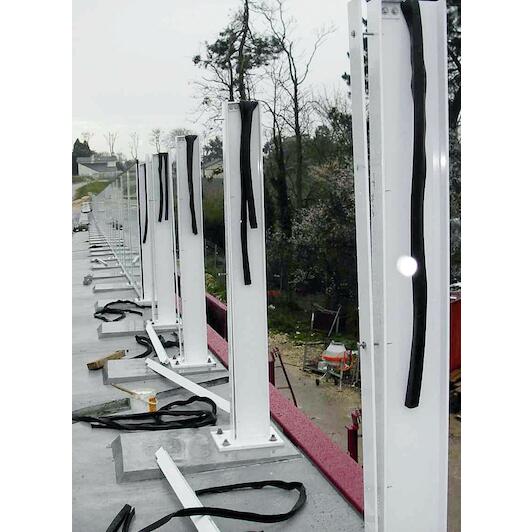

Safety fences

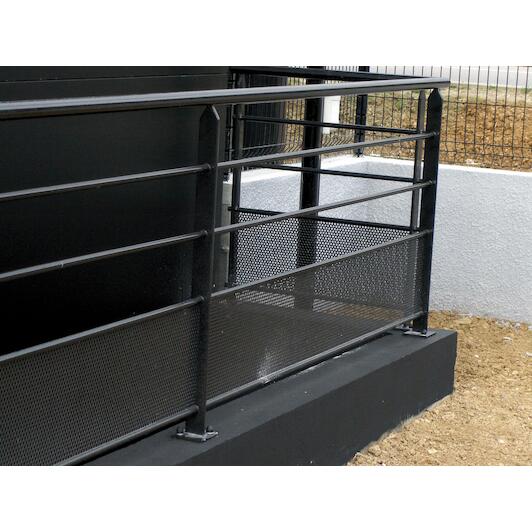

Balustrades
Curtain wall
Guardrails
High-end production line
Installation of equipment and machinery
Warehouses
Fencing for stadiums
Signage
Overhead applications

Precautionary statements

P201: Obtain special instructions before use.
P202: Do not handle until all safety precautions have been read and understood.
P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
P260: Do not breathe dust/fume/gas/mist/vapours/spray.
P264: Wash ... (see safety data sheet) thoroughly after handling.
P280: Wear protective gloves/protective clothing/eye protection/face protection.
P301 + P312: IF SWALLOWED: Call a POISON CENTER/doctor/… if you feel unwell.
P303 + P361 + P353: IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water (or shower).
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
P308 + P313: IF exposed or concerned: Get medical advice/attention.
P330: Rinse mouth.
P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
P337 + P313: If eye irritation persists: Get medical advice/attention.
P362 + P364: Take off contaminated clothing and wash it before reuse.
P403 + P235: Store in a well-ventilated place. Keep cool.
P501: Dispose of contents/container to ... (see safety data sheet).

Hazard statements

H226: Flammable liquid and vapour.
H302: Harmful if swallowed.
H315: Causes skin irritation.
H317: May cause an allergic skin reaction.
H319: Causes serious eye irritation.
H360D: May damage the unborn child.
H372: Causes damage to organs through prolonged or repeated exposure.

All Features

For diameter: 12 mm
Length: 110 mm
Adr class: 3
Un number: UN1866
Principal hazard property: GHS02 Flammable
Adr packing group: III
P-statements: P201; P202; P210; P260; P264; P280; P301 + P312; P303 + P361 + P353; P305 + P351 + P338; P308 + P313; P330; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501
Hazard class: GHS02 Flammable; GHS07 Harmful or irritant; GHS08 Health hazard
Physical state: Liquid
Flash point: 33 °C
Packaging: Cartridge
H-statements: H226; H302; H315; H317; H319; H360D; H372
Drill diameter: 14.0 mm
Curing time at 20°c: 20.0 Min.
Colour of chemical product: Yellow
Anchor diameter: 14.0 mm
Base material: Non-cracked concrete, Solid blocks, Solid brick, Stone
Threaded rod diameter applicability: M12 mm

Brand SPIT
02949668
EAN 3439510602065
Supplier number SPIT 060206

Frequently asked questions about this product

Answered by specialists

Which threaded rod diameter is this anchor capsule designed for?: This Spit anchor capsule is designed specifically for M12 threaded rods.
What drill hole diameter and depth are required for this capsule?: For this 110 mm M12 capsule, use a 14 mm drill bit and a minimum drilling depth of 110 mm.
Do you need an injection gun to apply this capsule?: No, the pre-dosed capsule is inserted directly into the hole and the threaded rod is driven in mechanically.
Which substrates are suitable for the MAXIMA+ capsule?: It is suitable for heavy-duty anchoring in concrete and natural stone.
Can this chemical capsule be used in damp conditions?: Yes, the Spit MAXIMA+ capsule is suitable for installation in wet and damp drill holes.
