Which threaded rod size is this anchor capsule designed for?

This 125 mm long capsule is specifically designed for use with M16 threaded rods.

Do you need an injection dispenser gun to install this anchor?

No, this is a pre-dosed glass capsule. You place the capsule in the drill hole and drive the threaded rod in with a rotary machine.

What base materials can the Spit Maxima+ be used in?

It holds an ETA approval for heavy-duty anchoring in non-cracked concrete and is suitable for wet and damp conditions.

Can this capsule be used for overhead applications?

Yes, the self-contained capsule design prevents dripping and allows for clean overhead installation.

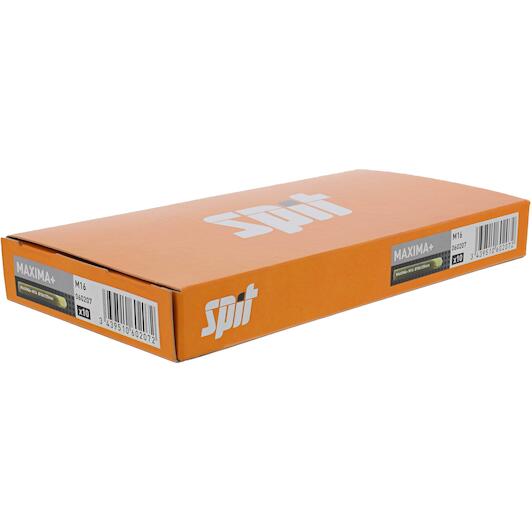

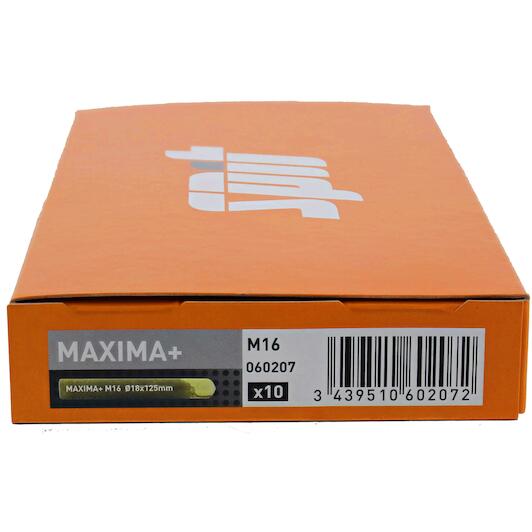

SPIT 060207 MAXIMA+ capsule M16

Name: SPIT 060207 MAXIMA+ capsule M16
Brand: SPIT
SKU: 02955891
Price: 2.34 EUR
Availability: InStock

Supplier number: SPIT 060207 | EAN 3439510602072

2.34 tax incl.

€1.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 10.

Ordered before 20:00 - delivered as of 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable chemical anchoring with Spit

Practical benefits

Fast setting without tools: You place the capsule directly into the drill hole to set threaded rods without an injection gun.
Exact dose without waste: The pre-dosed capsule provides the exact amount of vinylester resin needed for an M16 anchor.
Reliable in damp conditions: You achieve solid and approved fixings in non-cracked concrete, even when working in wet holes.

In a nutshell

The right choise for

With the Spit Maxima+ M16 anchor capsule, you achieve dependable heavy-duty fixings in non-cracked concrete without needing an injection gun or mixing nozzles. Simply insert the 125 mm long glass capsule into the drill hole and drive in the M16 threaded rod using a rotary machine. The pre-dosed vinylester resin delivers the exact amount of mortar required every time, eliminating mess and material waste. Its self-contained design prevents dripping, making it well-suited for overhead installations and damp or wet conditions. Secure structural steel, balustrades, or industrial machinery quickly and cleanly without expansion stress on the base material.

Product information FAQ

€2.34

In stock - tax incl.

Key features according to our expert

For diameter: 16 mm
Length: 125 mm
ADR class: 3
UN number: UN1866
Principal hazard property: GHS02 Flammable
ADR packing group: III
P-statements: P201; P202; P210; P260; P264; P280; P301 + P312; P303 + P361 + P353; P305 + P351 + P338; P308 + P313; P330; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501
Hazard class: GHS02 Flammable; GHS07 Harmful or irritant; GHS08 Health hazard
Physical state: Liquid
Flash point: 33 °C
Packaging: Cartridge
H-statements: H226; H302; H315; H317; H319; H360D; H372

Product description

Heavy-duty chemical capsule
Excellent performance and fast installation, all-in-one, easy-to-use complete system
ETA approved for non-cracked concrete from M8 to M30
Without injection system for easy and fast installation
No waste, no loss of product
Individual dose, you buy what you need
Capsule system; easy in ceiling applications
Ideal for installation in wet and humid conditions

Applications

20-month shelf life reduces waste

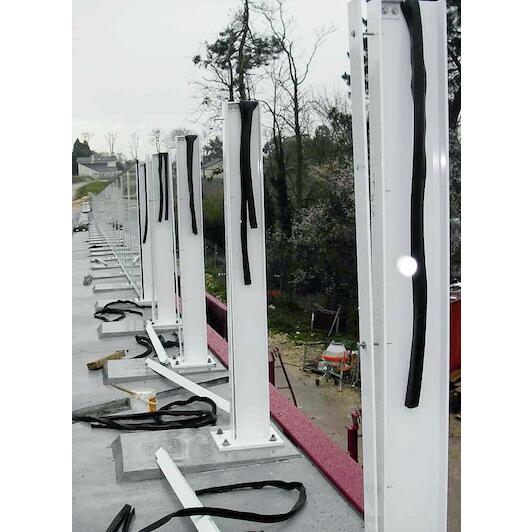

Constructive anchoring
Safety fences

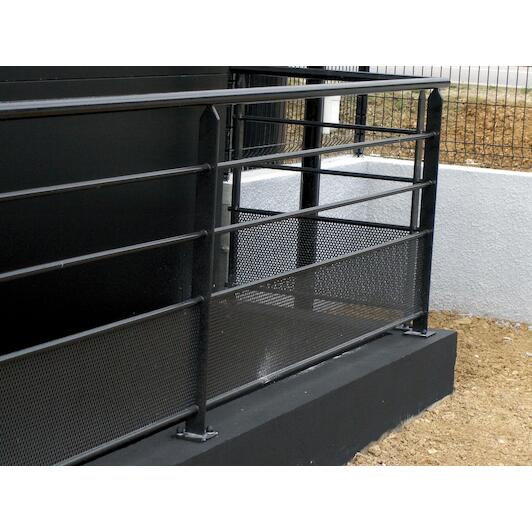

Balustrades
Curtain wall
Guardrails
High-end production line
Installation of equipment and machinery
Warehouses
Fencing for stadiums
Signage
Overhead applications

Precautionary statements

P201: Obtain special instructions before use.
P202: Do not handle until all safety precautions have been read and understood.
P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
P260: Do not breathe dust/fume/gas/mist/vapours/spray.
P264: Wash ... (see safety data sheet) thoroughly after handling.
P280: Wear protective gloves/protective clothing/eye protection/face protection.
P301 + P312: IF SWALLOWED: Call a POISON CENTER/doctor/… if you feel unwell.
P303 + P361 + P353: IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water (or shower).
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
P308 + P313: IF exposed or concerned: Get medical advice/attention.
P330: Rinse mouth.
P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
P337 + P313: If eye irritation persists: Get medical advice/attention.
P362 + P364: Take off contaminated clothing and wash it before reuse.
P403 + P235: Store in a well-ventilated place. Keep cool.
P501: Dispose of contents/container to ... (see safety data sheet).

Hazard statements

H226: Flammable liquid and vapour.
H302: Harmful if swallowed.
H315: Causes skin irritation.
H317: May cause an allergic skin reaction.
H319: Causes serious eye irritation.
H360D: May damage the unborn child.
H372: Causes damage to organs through prolonged or repeated exposure.

All Features

For diameter: 16 mm
Length: 125 mm
Adr class: 3
Un number: UN1866
Principal hazard property: GHS02 Flammable
Adr packing group: III
P-statements: P201; P202; P210; P260; P264; P280; P301 + P312; P303 + P361 + P353; P305 + P351 + P338; P308 + P313; P330; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501
Hazard class: GHS02 Flammable; GHS07 Harmful or irritant; GHS08 Health hazard
Physical state: Liquid
Flash point: 33 °C
Packaging: Cartridge
H-statements: H226; H302; H315; H317; H319; H360D; H372
Drill diameter: 18.0 mm
Curing time at 20°c: 20.0 Min.
Colour of chemical product: Yellow
Anchor diameter: 18.0 mm
Base material: Non-cracked concrete, Solid blocks, Solid brick, Stone
Threaded rod diameter applicability: M16 mm

Brand SPIT
02955891
EAN 3439510602072
Supplier number SPIT 060207

Frequently asked questions about this product

Answered by specialists

Which threaded rod size is this anchor capsule designed for?: This 125 mm long capsule is specifically designed for use with M16 threaded rods.
Do you need an injection dispenser gun to install this anchor?: No, this is a pre-dosed glass capsule. You place the capsule in the drill hole and drive the threaded rod in with a rotary machine.
What base materials can the Spit Maxima+ be used in?: It holds an ETA approval for heavy-duty anchoring in non-cracked concrete and is suitable for wet and damp conditions.
Can this capsule be used for overhead applications?: Yes, the self-contained capsule design prevents dripping and allows for clean overhead installation.
