Scope of delivery
Product description
- Universal stainless steel construction plug with countersunk head and Torx connection
- Versatile frame & frame anchor with high performance
- ETA-approved for fixings in concrete and masonry
- Stainless steel for use in external applications
- Uniform expansion prevents rotation during application
- Short anchor depth: only 40 mm for concrete, therefore less fixing time
- High load values
- Extra long lengths: fixing thickness up to 250 mm
- Suitable for use in multiple materials, for a wide range of applications
- Fire and seismic test reports
Applications
- Windows
- Doors
- Fences

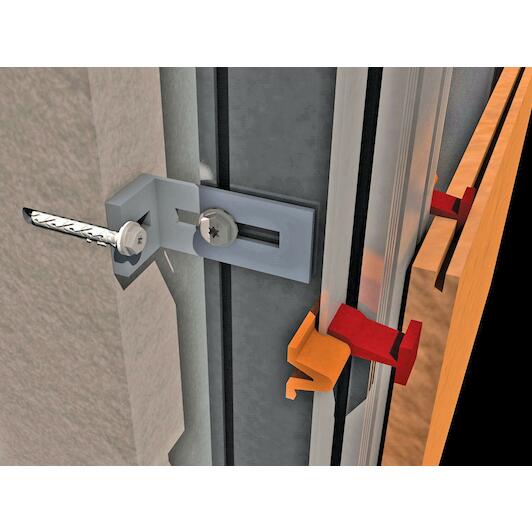

- Ventilated facades
- Cladding
- Metal framing
- Insulation supports
- Metal brackets and cross members
Key features according to our expert
-
Length (Wall plug): 80 mm
-
Material (wall plug): Plastic
-
Wall plug type: Hammer-in plug
-
With screw: Yes
-
Application: Brick; Aerated concrete
-
type (screw head): T30
-
Drilling diameter: 8 mm
Specifications / All features
-
Brand:
SPIT
-
02697284
-
EAN:
3439515679420
-
Supplier number:
SPIT 567942
- Length (wall plug)
- 80 mm
- Material (wall plug)
- Plastic
- Wall plug type
- Hammer-in plug
- With screw
- Yes
- Application
- Brick; Aerated concrete
- Type (screw head)
- T30
- Drilling diameter
- 8 mm
- Maximum trapping
- 30 mm
- Bit size
- TX 30
- Anchoring depth
- 50 mm
- Product material
- Nylon
- Anchor diameter
- 8.0 mm
- Min. anchor distance
- 200 mm
- Base material colour
- PURPLE
- Head type
- Countersunk head
- Min. thickness of base material
- 100 mm
- Tightening torque
- 12 N-m
- Anchor length
- 80 mm
- Minimum drilling depth
- 60 mm
- Drill diameter
- 8.0 mm
- Maximum installation depth
- 50 mm
- Throughput diameter
- 8 mm
- Surface treatment
- Stainless steel A4
- Min. edge distance (mm)
- 100 mm
