SPIT 567965 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x260/210 F TX40

Name: SPIT 567965 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x260/210 F TX40
Brand: SPIT
SKU: 02377684
Price: 4.4 EUR
Availability: InStock

Supplier number: SPIT 567965 | EAN 3439515679659

4.40 tax incl.

€3.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered as of 02/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

FISCHER 522707 construction plug SXRL 10 x...

5.95

€4.92 excl. VAT

Delivery time average 10 days.

Secure anchoring with Spit frame plugs

Practical benefits

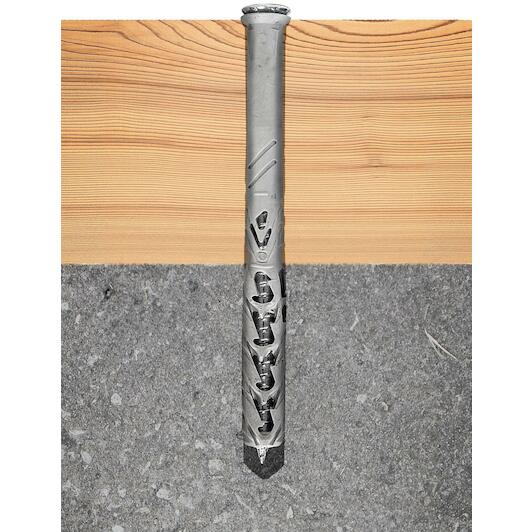

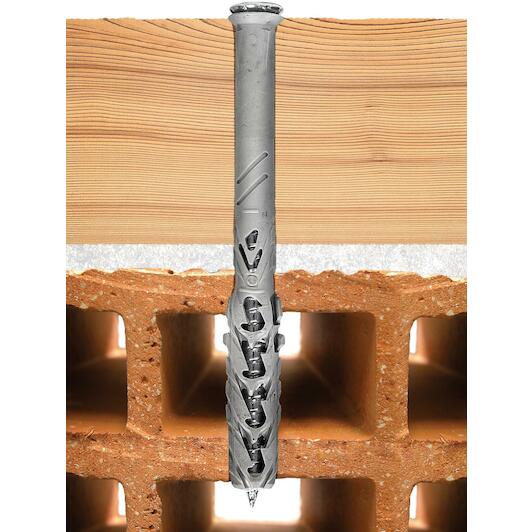

Stable hold in masonry: The uniform expansion prevents rotation during installation, providing a reliable and secure grip in brick and aerated concrete.
Clean and flush finish: Thanks to the countersunk head, you achieve a neat, seamless surface without protruding hardware on your fixtures.
Efficient torque transmission: The precise TX40 drive prevents slipping and bit wear, allowing you to drive the included screw quickly and smoothly.

In a nutshell

The right choise for

With the Spit b-long universal frame plug, you achieve dependable anchoring for heavy timber framing, battens, and frames in solid and hollow materials such as brick and aerated concrete. Thanks to its 260 mm length, you can effortlessly clamp fixtures with thicknesses of up to 210 mm. The uniform expansion prevents turning inside the 10 mm drill hole, ensuring a quick and solid installation. The included zinc-plated countersunk screw sinks neatly into the wood for a flush, professional finish, while the T40 drive provides slip-free torque transmission without damaging the bit or screw head.

Product information FAQ

€4.40

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 260 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T40
Drilling diameter: 10 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

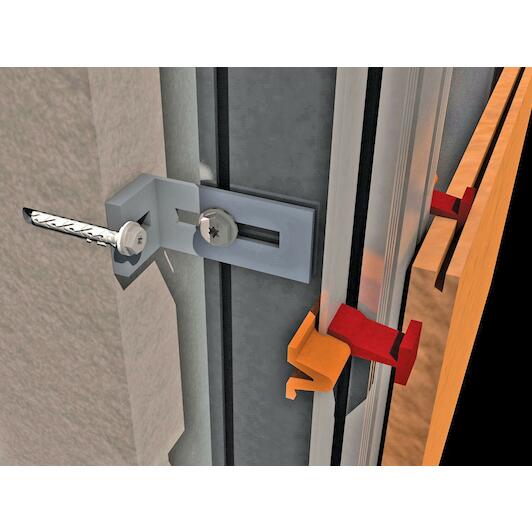

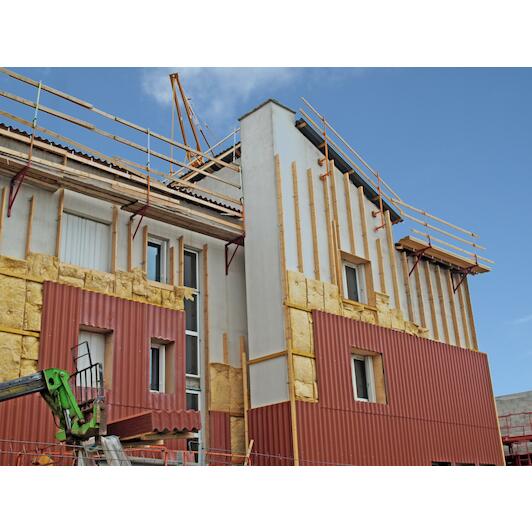

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 260 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T40
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Anchoring depth: 50 mm
Maximum trapping: 210 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 16 N-m
Bit size: TX 40
Anchor length: 260 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02377684
EAN 3439515679659
Supplier number SPIT 567965

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this frame plug?: You need a drill bit with a diameter of 10 mm.
Which screw bit fits the included screw?: The countersunk screw requires a TX40 bit.
Which base materials are suitable for this Spit B-Long plug?: This anchor is suitable for fixings in brick, aerated concrete, and concrete.
Does the frame plug come with a matching screw?: Yes, this plastic hammer-in plug includes a matching zinc-plated screw.
What are the dimensions of this anchor plug?: The plug has a diameter of 10 mm and a total length of 260 mm.
