What drill diameter is required for this anchor?

You need to use a drill bit with a 10 mm diameter.

Which drive tool fits the screw head?

You can tighten the screw using a SW13 hex socket or a TX40 bit.

Does this plug come with the matching screw?

Yes, this universal frame plug is supplied with the matching screw.

Which base materials are suitable for this plug?

This plug is suitable for anchoring into materials such as brick and aerated concrete.

What is the maximum fixture thickness for this anchor?

With an anchor length of 160 mm, the maximum usable fixture thickness is 110 mm.

SPIT 567974 B-LONG universal construction plug with collar, hexagon with Torx connection 10x160/110 HS SW13 TX40

Name: SPIT 567974 B-LONG universal construction plug with collar, hexagon with Torx connection 10x160/110 HS SW13 TX40
Brand: SPIT
SKU: 02454483
Price: 2.63 EUR
Availability: PreOrder

Supplier number: SPIT 567974 | EAN 3439515679741

2.63 tax incl.

€2.17 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered as of 23/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

FISCHER 522724 construction plug SXRL 10 x...

1.96

€1.62 excl. VAT

Delivery time average 9 days.

Solid anchoring with Spit B-LONG

Practical benefits

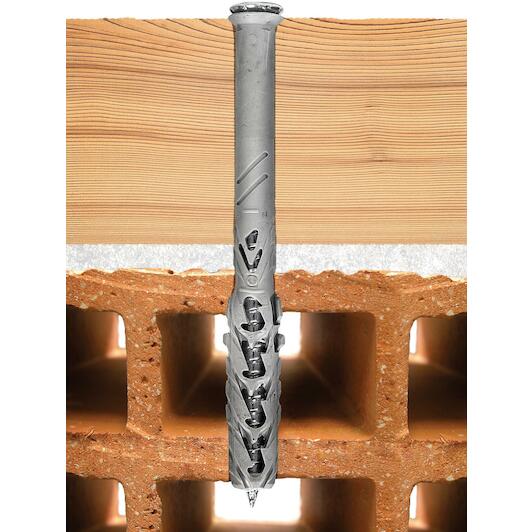

Strong multi-material grip: You achieve dependable holding power across brick, aerated concrete, and solid substrates through uniform sleeve expansion.
Flexible dual drive system: The SW13 hexagonal head paired with a TX40 socket ensures you transfer torque efficiently without slipping.
High fixture thickness capacity: With an overall length of 160 mm, you securely fasten thick construction elements up to 110 mm.

In a nutshell

The right choise for

With the Spit b-long universal frame plug, you securely anchor thick construction components into brick and aerated concrete. Thanks to its overall length of 160 mm and a usable fixture thickness of 110 mm, you can fasten battens, beams, and frame structures directly through the fixture. The plastic sleeve expands evenly across the substrate, preventing spinning during installation. Supplied with the matching screw, it offers flexible tightening options using either an SW13 hex socket or a TX40 bit. The built-in collar prevents the anchor from slipping too deep into the 10 mm drill hole, giving you maximum control on every fastening job.

Product information FAQ

€2.63

tax incl.

Key features according to our expert

Length (Wall plug): 160 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Drilling diameter: 10 mm

Product description

Universal construction plug with collar, hexagon with Torx connection
Versatile frame & frame anchor with high performance

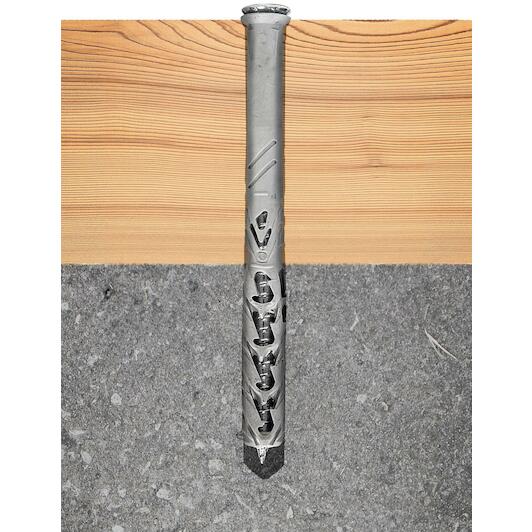

ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 250 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

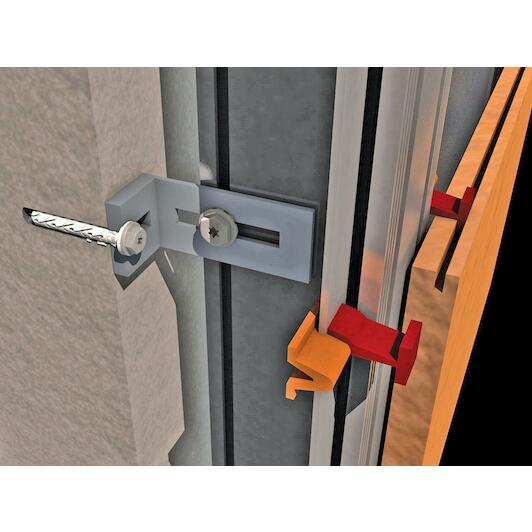

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 160 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Tightening torque: 16 N-m
Maximum trapping: 110 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Hexagon head
Product material: Nylon
Minimum drilling depth: 60 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Anchor length: 160 mm
Key size: 13.0 mm
Treatment: Galvanised

Brand SPIT
02454483
EAN 3439515679741
Supplier number SPIT 567974

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this anchor?: You need to use a drill bit with a 10 mm diameter.
Which drive tool fits the screw head?: You can tighten the screw using a SW13 hex socket or a TX40 bit.
Does this plug come with the matching screw?: Yes, this universal frame plug is supplied with the matching screw.
Which base materials are suitable for this plug?: This plug is suitable for anchoring into materials such as brick and aerated concrete.
What is the maximum fixture thickness for this anchor?: With an anchor length of 160 mm, the maximum usable fixture thickness is 110 mm.
