What drill diameter is required for this Spit frame plug?

You need a drill bit with a diameter of 10 mm.

Which tool drive fits the screw head?

The screw can be driven using a TX40 bit or an SW13 hex socket.

Which base materials is this plug suitable for?

This plug is suitable for anchoring into concrete, brick, and aerated concrete.

What is the maximum fixture thickness for this plug?

With an overall plug length of 300 mm, the maximum fixture thickness is 250 mm.

Is the screw included with the plug?

Yes, this construction plug comes complete with the matching hex screw.

SPIT 567980 B-LONG universal construction plug with collar, hexagon with Torx connection 10x300/250 HS SW13 TX40

Name: SPIT 567980 B-LONG universal construction plug with collar, hexagon with Torx connection 10x300/250 HS SW13 TX40
Brand: SPIT
SKU: 02454495
Price: 6.22 EUR
Availability: InStock

Supplier number: SPIT 567980 | EAN 3439515679802

6.22 tax incl.

€5.14 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 06/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

FISCHER 522729 construction plug SXRL 10 x...

7.53

€6.22 excl. VAT

Delivery time average 9 days.

Spit frame anchor for deep fixings

Practical benefits

Solid grip in masonry: You achieve reliable holding values in brick and aerated concrete for various structural installations.
Extended reach for fixtures: The 300 mm plug length allows you to secure thick timbers and frames up to 250 mm thick.
Dual drive installation option: The hex head with integrated TX40 recess lets you drive the screw with a socket or torx bit.

In a nutshell

The right choise for

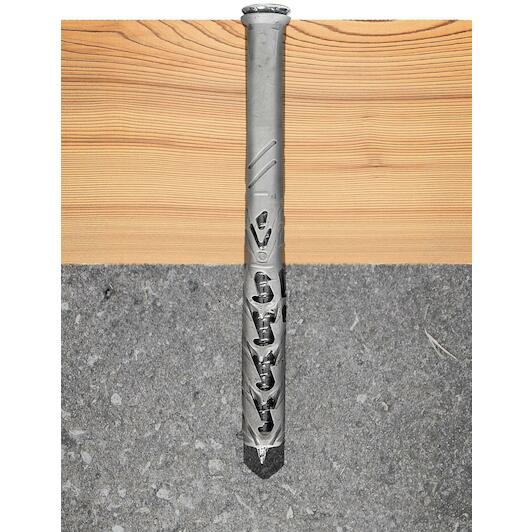

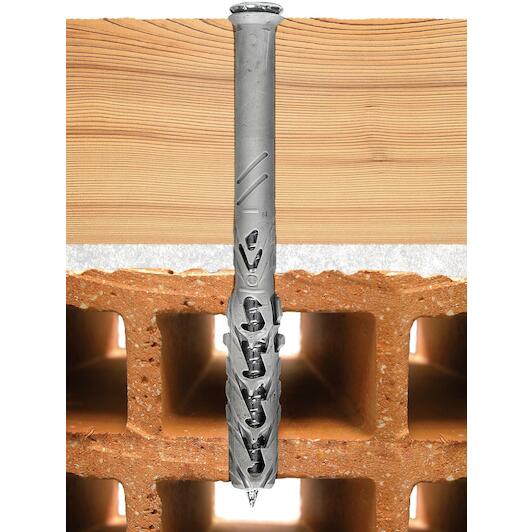

With the Spit b-long frame anchor, you achieve a deep and dependable fixing in base materials such as brickwork and aerated concrete. Thanks to the total plug length of 300 mm, you can easily secure thick fixtures up to 250 mm, making it ideal for heavy timber frameworks, beams, and window frames. This plastic collared plug comes complete with its matching hex screw. When installing into a 10 mm drill hole, you benefit from full flexibility by driving the screw with either a TX40 bit or an SW13 socket. It ensures a solid, efficient, and controlled installation on every project.

Product information FAQ

€6.22

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 300 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Drilling diameter: 10 mm

Product description

Universal construction plug with collar, hexagon with Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 250 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

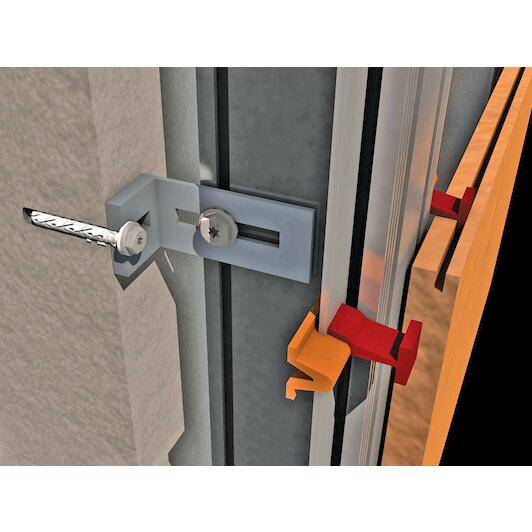

Ventilated facades
Cladding
Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 300 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Tightening torque: 16 N-m
Maximum trapping: 250 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Hexagon head
Product material: Nylon
Minimum drilling depth: 60 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Anchor length: 300 mm
Key size: 13.0 mm
Treatment: Galvanised

Brand SPIT
02454495
EAN 3439515679802
Supplier number SPIT 567980
