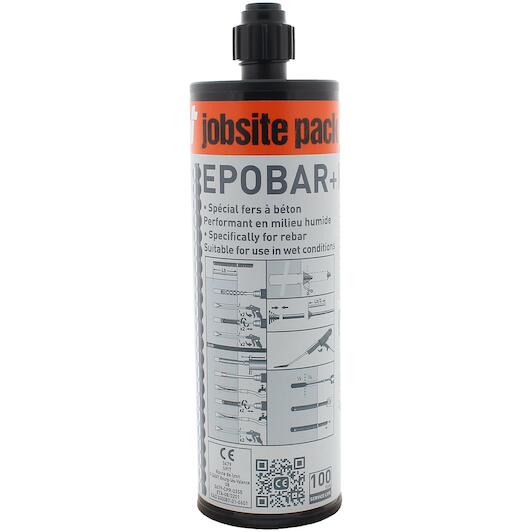

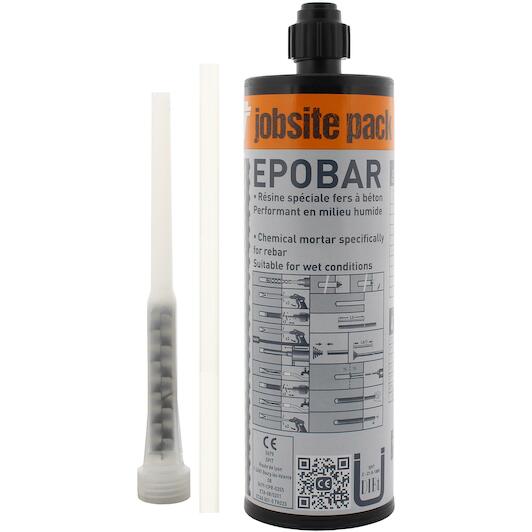

Product description

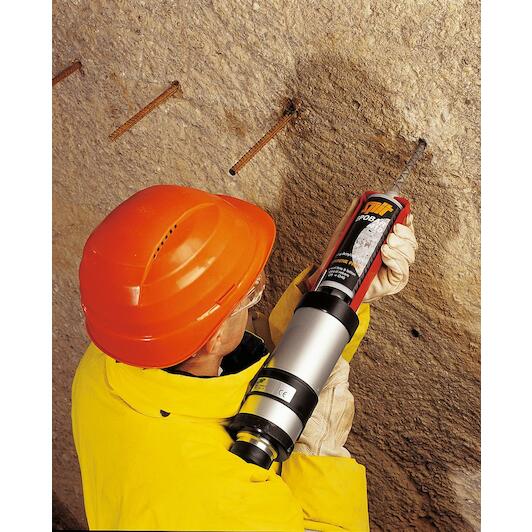

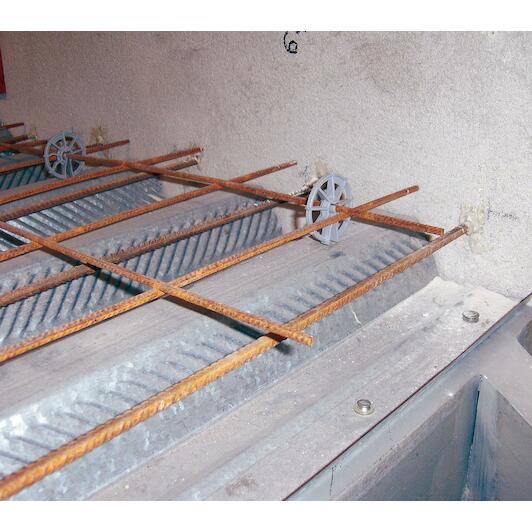

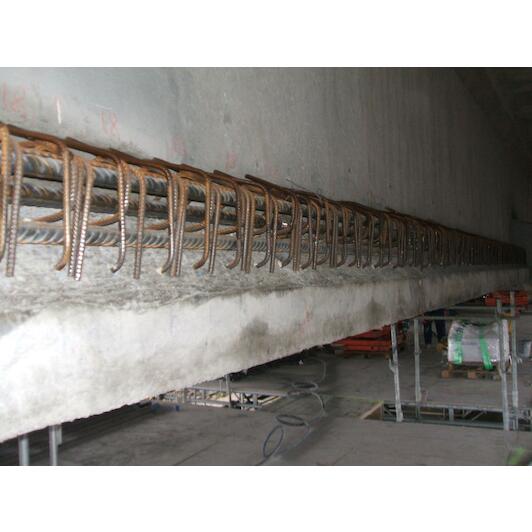

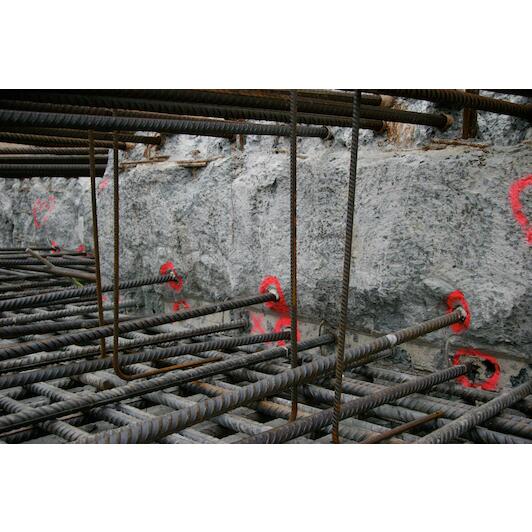

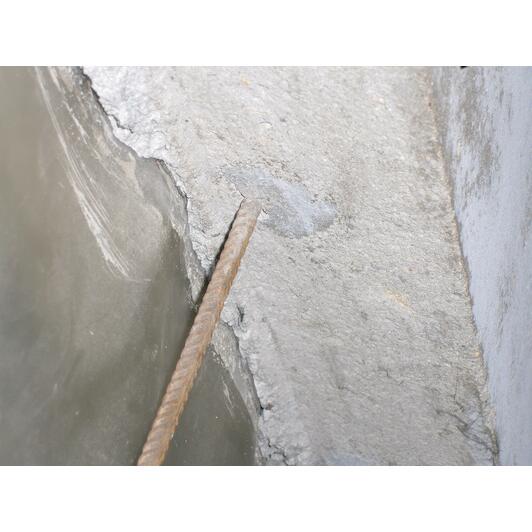

- Vinylester styrene-free chemical anchorage specially developed for reinforcing bars
- Strong chemical anchorage with high adhesion strength
- ETA-approved for reinforcing bars Ø8 to Ø32 mm
- Approved for fire safety up to 4 hours, easy to inject, odourless
- Suitable for damp holes
- Suitable for use in diamond-drilled holes
- No cleaning required when using the SPIT XTD drill bits
- Curing time ideal for deep holes or large diameter holes
- Suitable for use at working temperatures from -5 ºC to 40 ºC
- Volatile organic compound (VOC) rating A++
- Shelf life 16 months
Applications
Key features according to our expert
-
Net volume: 410 ml
-
H-statements: H242; H317; H319; H400; H226; H315
-
Conseils de prudence (P): P101; P102; P103; P210; P220; P234; P261; P264; P273; P280; P302 + P352; P303 + P361 + P353; P305 + P351 + P338; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501; P321; P370 + P378; P391; P410; P411 + P235; P420
-
Hazard class: GHS02 Flammable; GHS07 Harmful or irritant; GHS09 Environmental hazard
Precautionary statements
- P101: If medical advice is needed, have product container or label at hand.
- P102: Keep out of reach of children.
- P103: Read label before use.
- P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
- P220: Keep away from clothing and other combustible materials.
- P234: Keep only in original packaging.
- P261: Avoid breathing dust/fume/gas/mist/vapours/spray.
- P264: Wash ... (see safety data sheet) thoroughly after handling.
- P273: Avoid release to the environment.
- P280: Wear protective gloves/protective clothing/eye protection/face protection.
- P302 + P352: IF ON SKIN: Wash with plenty of water/…
- P303 + P361 + P353: IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water (or shower).
- P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
- P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
- P337 + P313: If eye irritation persists: Get medical advice/attention.
- P362 + P364: Take off contaminated clothing and wash it before reuse.
- P403 + P235: Store in a well-ventilated place. Keep cool.
- P501: Dispose of contents/container to ... (see safety data sheet).
- P321: Specific treatment (see ... on this label).
- P370 + P378: In case of fire: Use … (see safety data sheet) to extinguish.
- P391: Collect spillage.
- P410: Protect from sunlight.
- P411 + P235: Store at temperatures not exceeding...°C/...°F (see safety data sheet). Keep cool.
- P420: Store separately.
Hazard statements
- H242: Heating may cause a fire.
- H317: May cause an allergic skin reaction.
- H319: Causes serious eye irritation.
- H400: Very toxic to aquatic life.
- H226: Flammable liquid and vapour.
- H315: Causes skin irritation.
Specifications / All features
-
Brand:
SPIT
-
03309745
-
EAN:
3439510601860
-
Supplier number:
SPIT 060242
- Net volume
- 410 ml
- H-statements
- H242; H317; H319; H400; H226; H315
- Conseils de prudence (p)
- P101; P102; P103; P210; P220; P234; P261; P264; P273; P280; P302 + P352; P303 + P361 + P353; P305 + P351 + P338; P333 + P313; P337 + P313; P362 + P364; P403 + P235; P501; P321; P370 + P378; P391; P410; P411 + P235; P420
- Hazard class
- GHS02 Flammable; GHS07 Harmful or irritant; GHS09 Environmental hazard
- Max. ø threaded rod
- 30 mm
- Health and safety
- Eye protection, Gloves, Hearing protection, Helmet
- Minimal processing temperature chemical product
- -40 °C
- Maximum operating temperature
- 80 °C
- Product material
- Vinylester resin
- Processing time at 20°c
- 6.0 Min.
- Min. ø reinforcement rod
- 8 mm
- Curing time at 20°c
- 110.0 Min.
- Drilling method
- Diamond, Hammer, Pneumatic
- Max. ø reinforcement rod
- 32 mm
- Min. ø threaded rod
- 8 mm
- Maximum processing temperature
- 40 °C
- Colour of chemical product
- Grey
- Minimum processing temperature
- -5 °C
- Base material
- Cracked concrete, Non-cracked concrete
- Volume
- 410 ml
