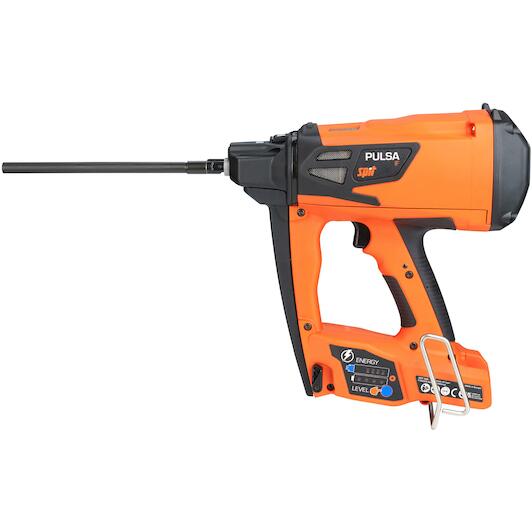

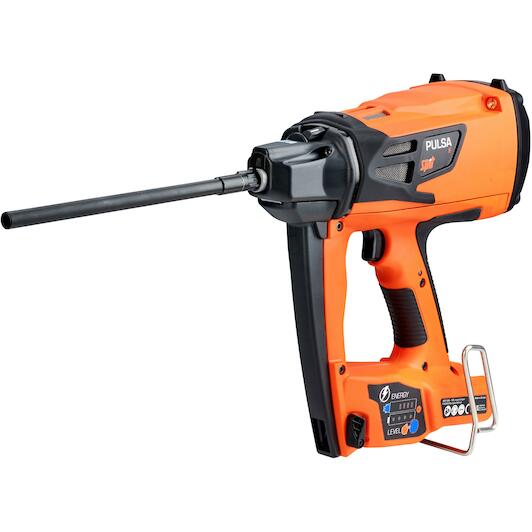

SPIT PULSA INSULFAST 27IF cordless gas-powered nail gun in case (for insulation) - 019917

Supplier number: SPIT 019917 | EAN 3439510199176
1,572.14 tax incl.
€1,299.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

Fast insulation fixing with Spit

Practical benefits
  • Rapid installation without drilling: You fix soft and semi-rigid insulation to concrete and masonry significantly faster than traditional drilling and plug methods.
  • Effortless overhead operation: The balanced 3.2 kg tool body and low actuation force let you complete ceiling fixings comfortably with minimal fatigue.
  • Wide insulation thickness range: Secure panels from 60 to 200 mm thick using dedicated fasteners designed for curtain walls and solid ceilings.

In a nutshell

The right choise for

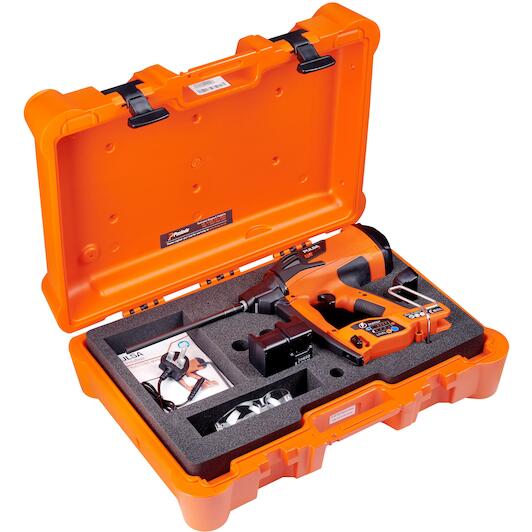

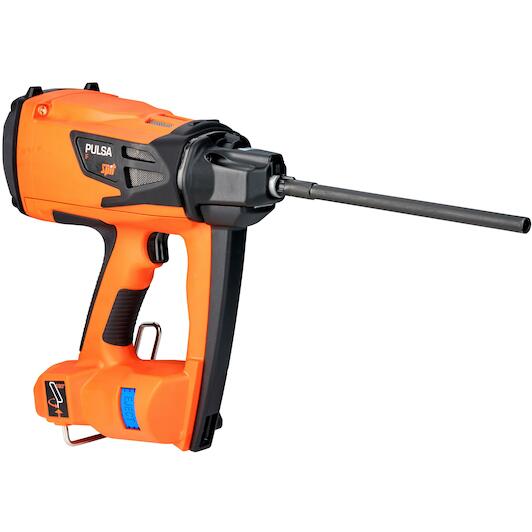

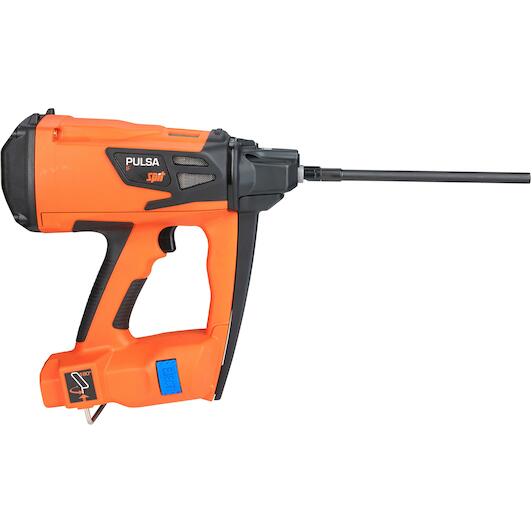

With the Spit Pulsa Insulfast 27IF cordless gas nailer, you fix soft and semi-rigid insulation boards directly to concrete and sand-lime brick without any pre-drilling. This direct fixing method significantly cuts down installation time on facades and solid ceilings. Weighing just 3.2 kg with a low actuation force, the tool minimizes physical fatigue during prolonged overhead applications. It smoothly handles if insulation fasteners for insulation thicknesses from 60 to 200 mm with a 2.6 mm nail diameter. An integrated led display clearly shows both battery charge and gas fuel levels. The complete set comes in a heavy-duty carry case with one 3.6V 2.5Ah battery, a charger, a single-shot nail guide, safety glasses, and accessories.



€1,572.14
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 3,6 V
  • Nail thickness: 2,6 mm
  • Number of batteries included: 1
  • UN number: UN3481
  • Weight: 3,2 kg
  • Type of system case: Not applicable
  • Magazine angle: 0 °
  • Supplied in: Case
  • Max. nail thickness: 2,6 mm
  • Min. nail thickness: 2,6 mm
  • Magzine capacity: 1 ea
  • Max. nail length: 200 mm
  • Min. nail length: 60 mm
  • Capacity (battery): 2,5 Ah

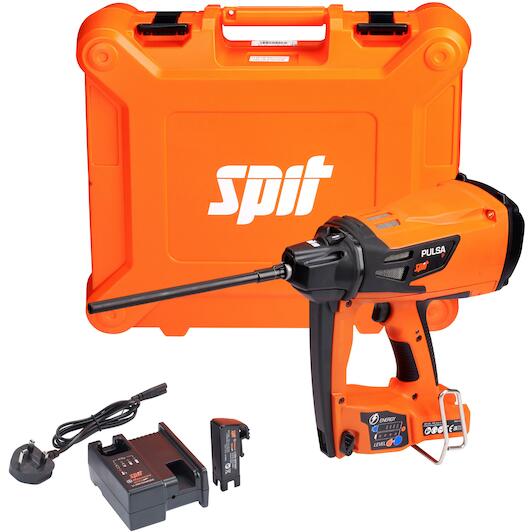

Scope of delivery

  • 1x Pulsa Insulfast
  • 1x Battery
  • 1x Battery charger
  • 1 x Single-shot nail guide
  • Safety glasses
  • Allen spanner
  • Manual
  • Safety instructions
  • EC declaration of conformity

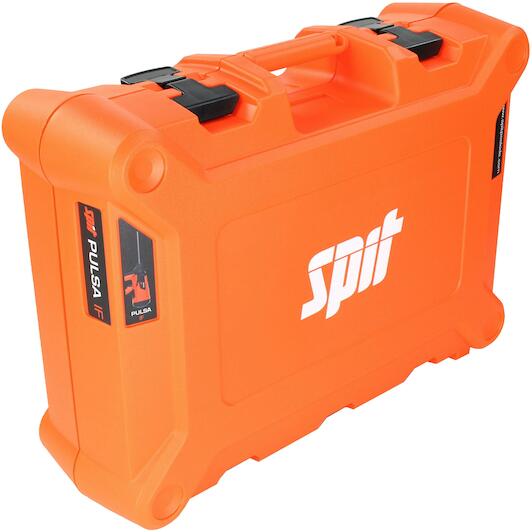

  • Case

Product description

  • Cordless nailer for insulation
  • Increase your work speed - work faster than ever before

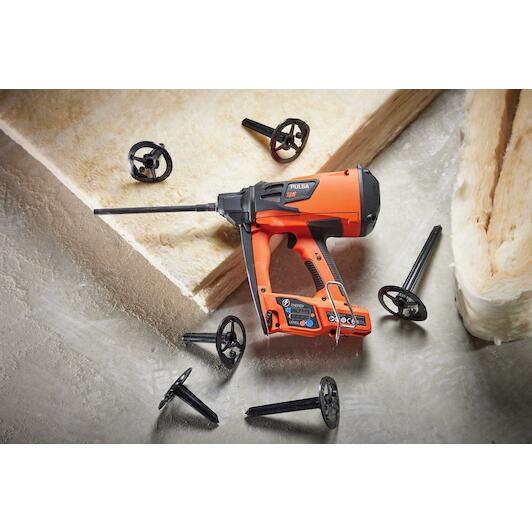

  • Wide range of IF plugs for insulation thicknesses from 60 to 200mm
  • Cordless technology - 6 times faster than drilling and 2 times faster than powder shot fitting
  • Low noise and vibration levels

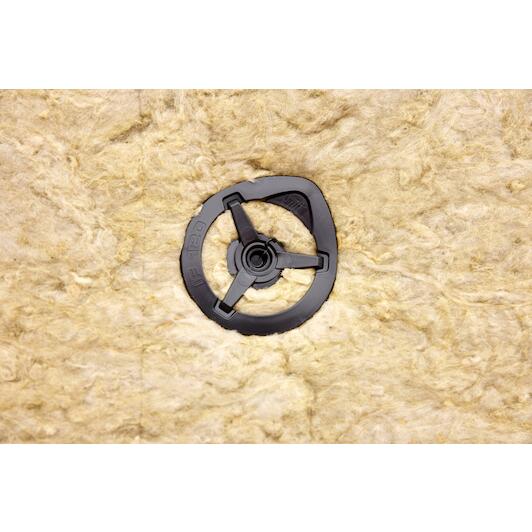

  • Insulation plugs with cap to eliminate cold bridges
  • Lower contact pressure, works faster, easier and less tiring
  • LED display indicates fuel and battery level
  • No downtime: high-quality, reliable and proven technology for over 35 years

Applications

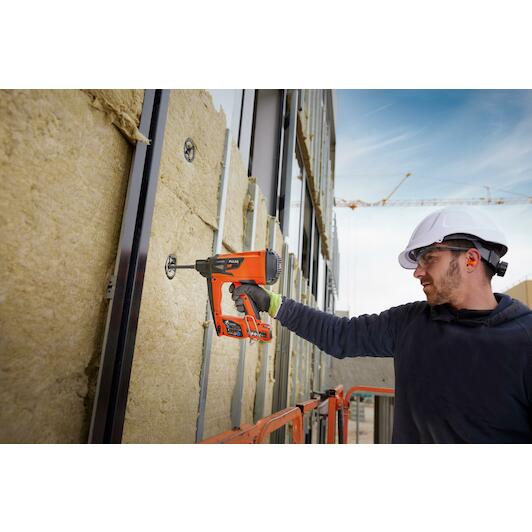

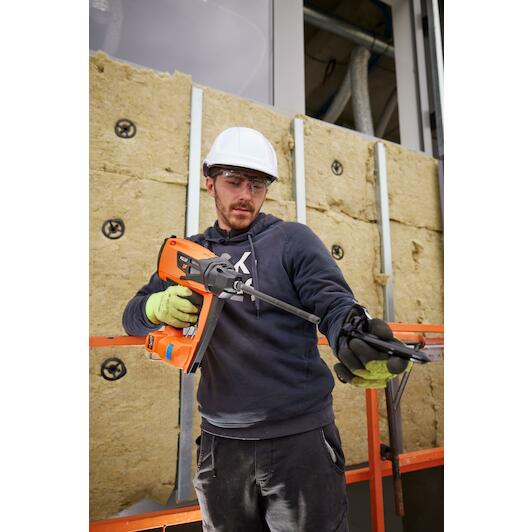

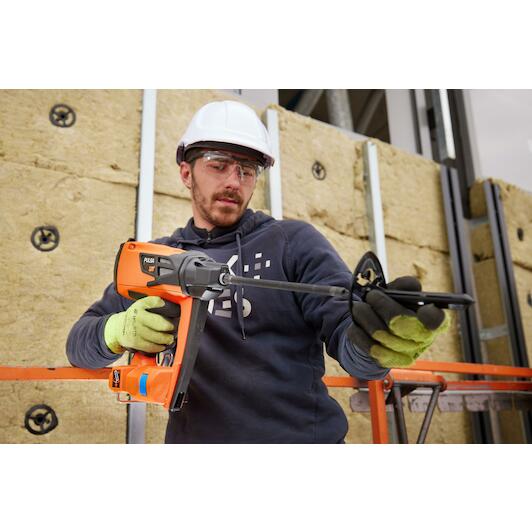

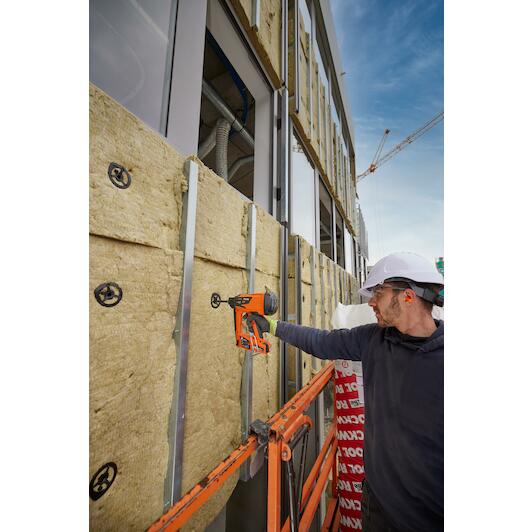

  • Fixing soft and semi-rigid insulation materials in ventilated curtain wall and ceiling applications
  • Against concrete and sand-lime brick

All Features

Battery voltage
3,6 V
Nail thickness
2,6 mm
Number of batteries included
1
Un number
UN3481
Weight
3,2 kg
Type of system case
Not applicable
Magazine angle
0 °
Supplied in
Case
Max. nail thickness
2,6 mm
Min. nail thickness
2,6 mm
Magzine capacity
1 ea
Max. nail length
200 mm
Min. nail length
60 mm
Capacity (battery)
2,5 Ah
Tightening force
4.2 kg
Warehouse capacity
1 nail
Type of fastening
Nails
Number of batteries
1 pcs
Minimal processing temperature chemical product
-5 °C
Anchor diameter range
2.6 mm
Number of degrees of nail connection
0 °
Nail length (mm)
60-200
Maximum operating temperature
49 °C
Noise level (en 12549) lpa
91.0 dB
Energy
Gas
Battery capacity
2.5 Ah
Vibration (en iso 8662-11) hav
5.5 m/s²
Maximum cycles per hour
1000 shots
Impact
95 J
Sound level (en 12549) lpc
132.7 dB(C)
Number of attachments per battery
10000 shots
Operating temperature
-15°C...+49 °C
Maximum cycles per second
1 nail
Base material
Non-cracked concrete, Hollow blocks (with plaster coating), Hollow bricks (with plaster coating), Steel
Power
Without tools
Number of fixings per gas cartridge
600 shots
Battery technology
Lithium
Health and safety
Eye protection, Gloves, Hearing protection, Helmet

Frequently asked questions about this product

Answered by specialists
What is the Spit Pulsa 27IF Insulfast used for?
This cordless gas nailer is designed for fixing soft and semi-rigid insulation panels directly into substrates like concrete and sand-lime brick.
Which insulation thicknesses and nail lengths are supported?
The tool is compatible with IF insulation fixings ranging from 60 mm to 200 mm in length, with a 2,6 mm pin diameter.
What items are included in the carry case?
You receive the Pulsa 27IF nailer, one 3,6V 2,5Ah battery, a charger, a single-shot nail guide, safety glasses, an Allen key, and a carry case.
What is the weight of the nailer?
The tool weighs 3,2 kg, providing comfortable handling and balance for wall and overhead applications.
How can you check the battery and gas levels?
An integrated LED display clearly shows the remaining charge of the battery and the fuel level of the gas cartridge.
