Scope of delivery
- 6003 Joker Pedal Combination wrench, 15 x 174 mm
Product description
The extra thin pedal wrench 6003 Joker Pedal is ideal for narrow installation spaces.
- Especially suitable for tight spaces
- The special open end geometry expands the placement possibilities of the tool
- The low return angle in the open end "takes" the screw every 15°

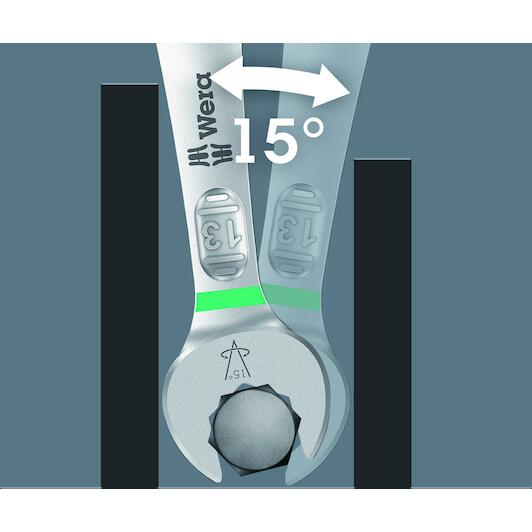

- Slim ring side with 15° crank
- Joker 6003 pedal size 15 with flat open end to mount and dismount pedals
Application
- Hexagon bolts and screw heads
Design
- Combination wrench, extra-flat open end side; open end side offset by 7.5°; ring side pivoted by 15°; with Take it easy tool finder: colour coding by size
Features and benefits
- Joker 6003 pedal size 15 with flat open end to mount and dismount pedals
- The extra thin pedal wrench (6003 Joker 15 Pedal) is ideal for narrow installation spaces

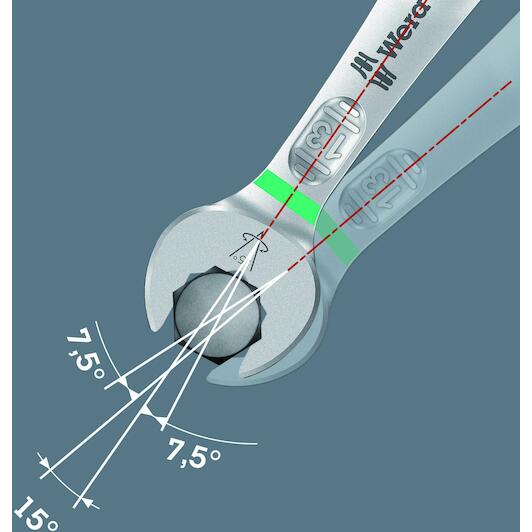

- The Joker 6003 ring spanner with its special open end geometry - open end offset by 7.5° and the double hexagon profile - doubles the placement possibilities when repeatedly turning the wrench 180° around the longitudinal axis. Bolts and screw heads can be "accessed" every 15°. The Joker 6003 will automatically find the respective placement point after every turn.
- Thanks to the open end side offset by 7.5°, double hexagon geometry and an adjusted application method (placement - screwdriving - turning - replacement - screwdriving - turning, etc), even screwdriving challenges allowing a return angle of less than 30° can be solved.
- The double hexagon geometry on the open end and ring sides secures the positive connection with the screw head or bolt and reduces the risk of slipping.
- The ring side is tilted at 15° to the tool axis to prevent injury.

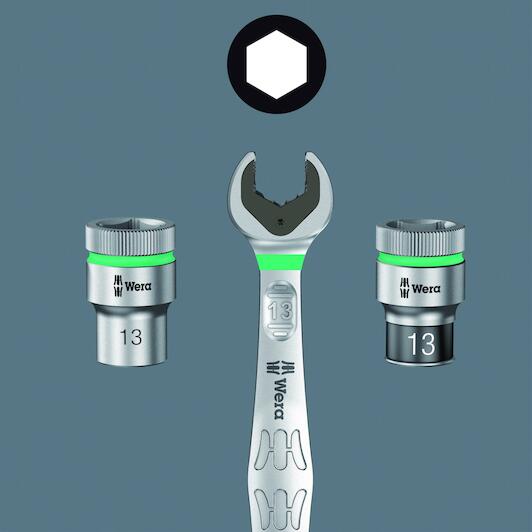

- Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets).
