Which screw type is this bit suitable for?

This bit is designed for Torx Plus IPR security screws featuring a 5-flank profile with a centre pin.

What is the difference between Torx Plus IPR and standard Torx?

The Torx Plus IPR profile has 5 flanks with a bore hole, whereas a standard Torx profile features 6 flanks.

What drive connection does this Wera bit have?

It features a standard 1/4" hexagon drive fitting holders according to DIN ISO 1173-D 6.3.

What are the dimensions of this bit?

This bit has a tip size of 8 IPR and a total length of 25 mm.

Is this bit VDE insulated for electrical work?

No, this bit is not VDE-certified and is not rated for live electrical work.

WERA 867/1 IPR TORX PLUS bit with bore, 8 IPR x 25 mm - 05134699001

Name: WERA 867/1 IPR TORX PLUS bit with bore, 8 IPR x 25 mm - 05134699001
Brand: WERA
SKU: 02646595
Price: 7.66 EUR
Availability: PreOrder

Supplier number: WERA 05134699001 | EAN 4013288034878

7.66 tax incl.

€6.33 excl. VAT (incl. all environmental contributions)

On order: delivered from 24/10/2026

The minimum purchase order quantity for the product is 10.

Ordered before 20:00 - delivered as of 24/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Secure drive for tamper-resistant screws

Practical benefits

Wera bit for security screws: You effortlessly fasten and loosen TORX PLUS IPR tamper-resistant screws with safety pins using the specialized bore hole.
Tough viscous durability: The tough-hard construction absorbs torque peaks, preventing premature tip breakage during demanding fastening tasks.
Universal hexagonal compatibility: Designed with a standard 1/4" hex drive, this bit fits all conventional holders conforming to DIN ISO 1173-D 6.3.

In a nutshell

The right choise for

With the Wera 867/1 ipr Torx Plus screwdriver bit, you reliably fasten and loosen 5-flank Torx Plus tamper-resistant screws fitted with a centre safety pin. The integrated bore hole fits squarely over the safety pin, preventing tool slippage and head damage when working on sensitive electronics, automotive ecu modules, or industrial machinery. Its tough-viscous construction absorbs extreme torque peaks to prevent premature tip breakage during demanding fastening jobs in hard materials. Featuring a standard 1/4" hexagon drive conforming to din iso 1173-D 6.3 and a compact length of 25 MM, this 8 ipr bit inserts seamlessly into any conventional bit holder.

Product information FAQ

€7.66

tax incl.

Key features according to our expert

Length: 25 mm
Drive profile size (bit): 8
Blade thickness: Not applicable
Type of drive profile (bit): Torx Plus Tamper Resistant
Connection size (bit): 1/4"
VDE approved: No
Bit profile: IPR8

Scope of delivery

867/1 IPR TORX PLUS® bits with bore hole, 8 IPR x 25 mm

Product description

High quality bits for recessed TORX PLUS® screws with safety pin. A 5-flank TORX PLUS® profile with bore hole. Tough viscous for universal use. 1/4" hexagon, suitable for holders as per DIN ISO 1173-D 6.3.

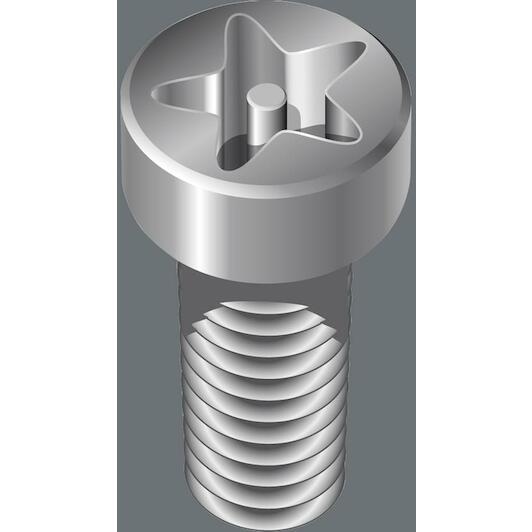

For recessed TORX PLUS® IPR screws with safety pin
TORX PLUS® IPR bit with bore hole on the output side
Tough for hard materials
1/4" hexagon drive (Wera connecting series 1)

Application

TORX PLUS® IPR socket screws with safety pin

Drive

1/4" hexagon, suitable for DIN ISO 1173-D 6.3 bit holders

Design

Tough, for universal use

Features and benefits

A 5-flank TORX PLUS® profile with a borehole. This drive geometry has only five flanks instead of the usual six and a borehole to protect safety screws against unauthorised unfastening. The screws cannot be turned with conventional, widely available tools.
Tough Wera bits prevent the tip from breaking prematurely. Z-bits usually are the bit for universal screwdriving applications.

All Features

Length: 25 mm
Drive profile size (bit): 8
Blade thickness: Not applicable
Type of drive profile (bit): Torx Plus Tamper Resistant
Connection size (bit): 1/4"
Vde approved: No
Bit profile: IPR8
Tip size: 8 IPR

Brand WERA
02646595
EAN 4013288034878
Supplier number WERA 05134699001

Frequently asked questions about this product

Answered by specialists

Which screw type is this bit suitable for?: This bit is designed for Torx Plus IPR security screws featuring a 5-flank profile with a centre pin.
What is the difference between Torx Plus IPR and standard Torx?: The Torx Plus IPR profile has 5 flanks with a bore hole, whereas a standard Torx profile features 6 flanks.
What drive connection does this Wera bit have?: It features a standard 1/4" hexagon drive fitting holders according to DIN ISO 1173-D 6.3.
What are the dimensions of this bit?: This bit has a tip size of 8 IPR and a total length of 25 mm.
Is this bit VDE insulated for electrical work?: No, this bit is not VDE-certified and is not rated for live electrical work.
