Scope of delivery
- 9726 Foam insert 8007 B VDE Zyklop VDE ratchet set 1, 3/8", 28 pieces
- 1x 8007 B VDE Zyklop ratchet, insulated, with switch lever, with 3/8" drive: 3/8" x 222 mm
- 1x 410 i VDE B VDE-insulated T-handle adapter screwdriver for 3/8" sockets: 3/8" x 130 mm
- 14x 8790 B VDE Zyklop 3/8" socket, insulated: 6x46 mm, 7x46 mm, 8x46 mm, 9x46 mm, 10x46 mm, 11x46 mm, 12x46 mm, 13x46 mm, 14x46 mm, 15x46 mm, 16x46 mm, 17x46 mm, 18x46 mm, 19x46 mm
- 6x 8767 B VDE HF TORX® Zyklop bit socket, insulated, with holding function, 3/8" drive: TX 20x55 mm, TX 25x55 mm, TX 27x55 mm, TX 30x55 mm, TX 40x55 mm, TX 45x59 mm
- 4x 8740 B VDE HF Zyklop Hex bit socket, insulated, with holding function, 3/8" drive: 4x55 mm, 5x55 mm, 6x55 mm, 8x59 mm
- 1x 8794 SB VDE Zyklop extension, insulated, short, 3/8": 3/8" x 91 mm
- 1x 8794 LB VDE Zyklop extension, insulated, long, 3/8": 3/8" x 166 mm
- 1x 9826 Foam insert 8007 B VDE Zyklop VDE ratchet set 1, 3/8", empty: 344 x 30 x 392 mm
Product description

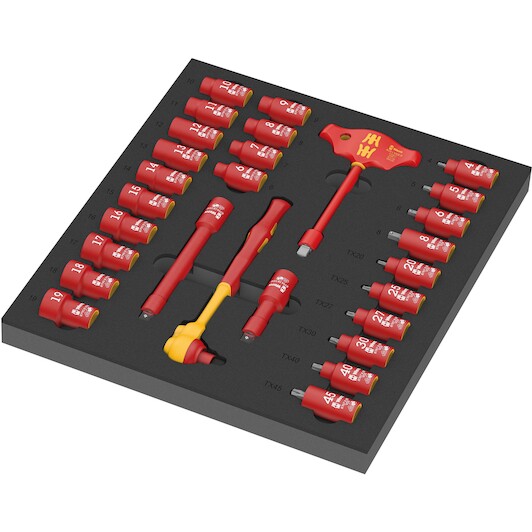

Durable foam insert; two-coloured for quick identification of missing parts; suitable for the Tool Rebel roller cabinet. Equipped with one Zyklop 8007 B VDE ratchet with reversing lever, one 410 i VDE B T-handle adapter screwdriver, 14 Zyklop 8790 B sockets, 6 Zyklop 8767 B HF bit sockets with holding function for TORX® screws, 4x 8740 B HF bit sockets with holding function for hexagonal socket screws, 2 Zyklop extensions (short and long).
- Durable foam insert, each tool has its own place; two-coloured, missing tools will quickly be noticed
- High-quality, durable foam insert without chemical vapours
- Insulated and 100% individually tested Zyklop 8007 B ratchet for safe working up to 1,000 volt
- Fine-toothed ratchet with 80 teeth for a return angle of only 4.5°
- Extremely slim design with a soft, ergonomic grip zone for easy work even in very confined spaces
Features and benefits

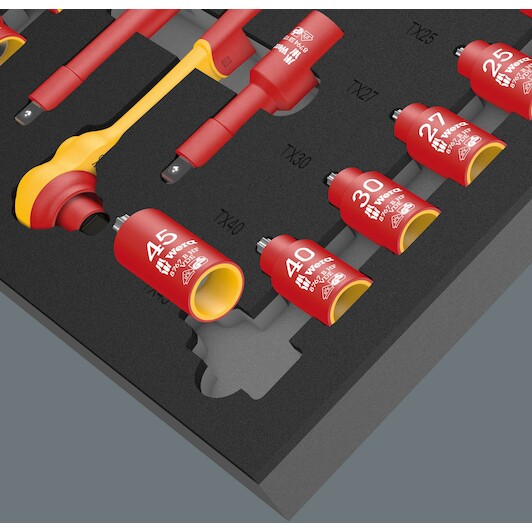

- The tools sit securely in the foam thanks to precise contour cutouts, but are easy to remove. The carefully designed arrangement of the tools ensures space-saving storage and quick access to each tool.

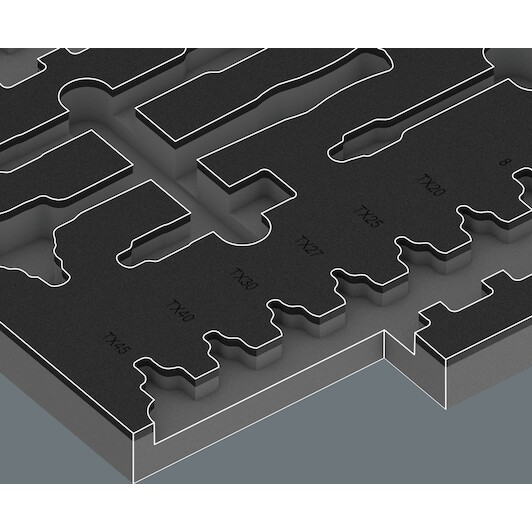

- After removing the tool the light grey second foam becomes visible and therefore missing tools are quickly identified.
- Safe working at voltages up to 1,000 V is guaranteed as all tools are individually tested at 10,000 V as per IEC 60900.

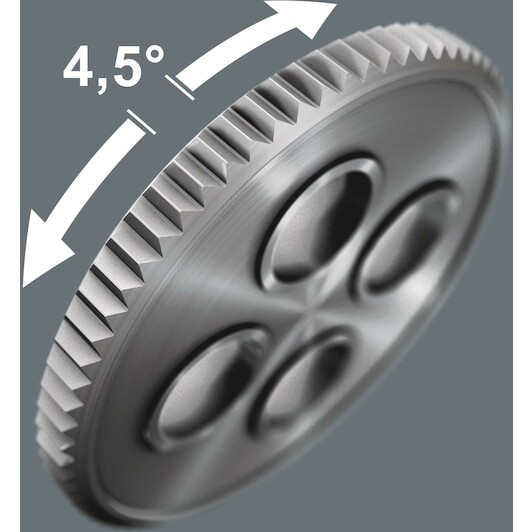

- The Zyklop VDE ratchet allows a short return angle of only 4.5 ° thanks to its 80 teeth.

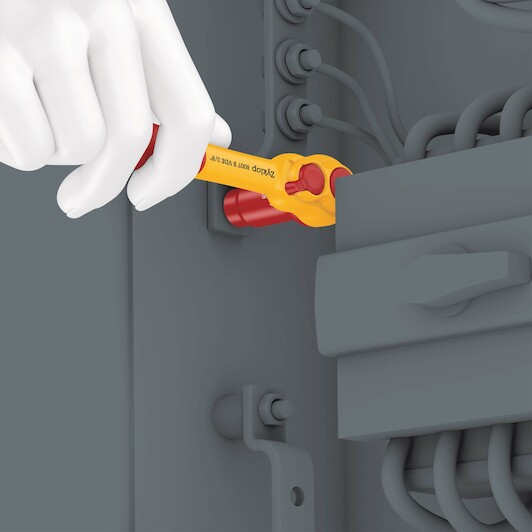

- The extremely slim design of the Zyklop VDE ratchet makes it easy to work, even in confined spaces.

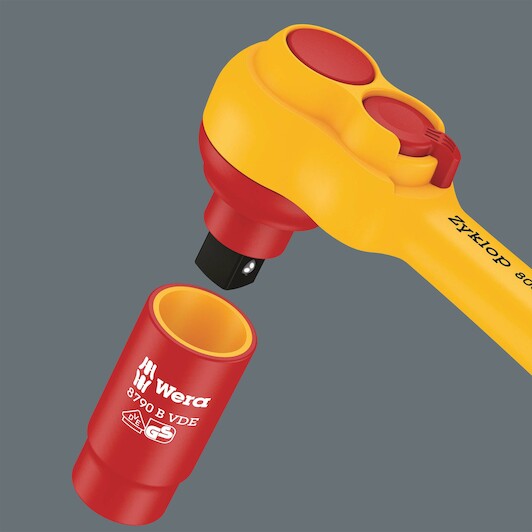

- The ball lock ensures sockets and accessories fit securely, providing increased safety during operation. A short press on the release button allows the tool to be changed quickly.

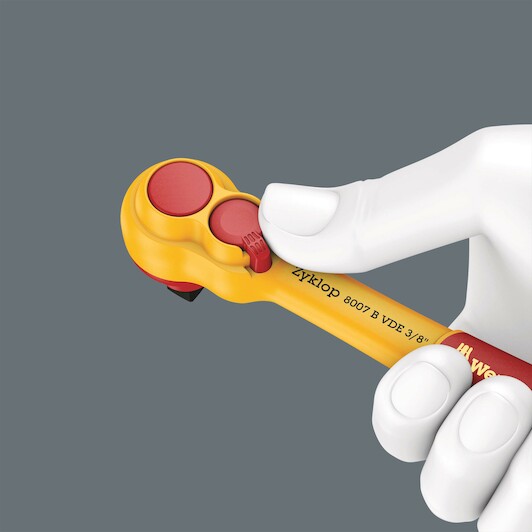

- Switch lever for convenient change of direction.

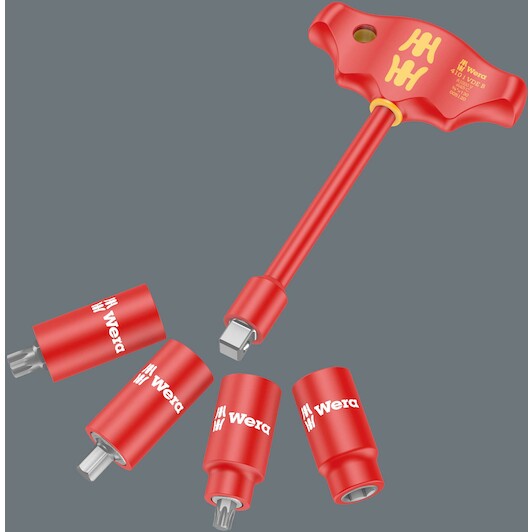

- The 410 i VDE B VDE-insulated T-handle adapter screwdriver may only be used with the 3/8" VDE bit sockets and sockets of the Wera Zyklop VDE series 8740, 8760, 8767 and 8790.
