WERA Bicycle Set 12 ring spanner set 12-piece - 05004181001

Scope of delivery

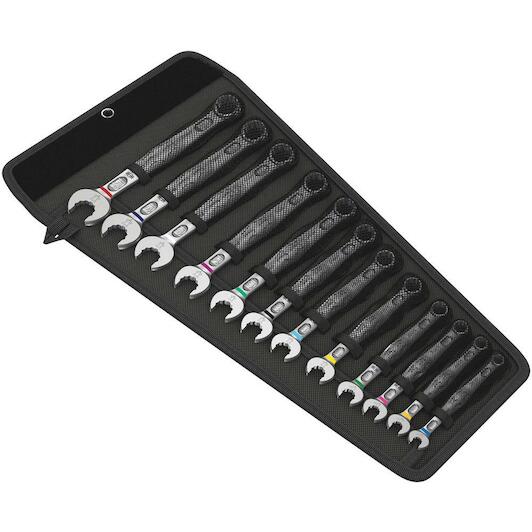

• Bicycle Set 12, 12 pieces
• 11x 6003 Joker Combination wrench: 6x105 mm, 7x110 mm, 8x115 mm, 9x120 mm, 10x125 mm, 11x135 mm, 12x148 mm, 13x160 mm, 14x167 mm, 16x182 mm, 17x190 mm
• 1x 6003 Joker Pedal Combination wrench: 15 x 174 mm

Product description

12-piece Joker 6003 spanner set; size 15 in an extra-slim design. As the working space is very narrow when working on your bike, tools are necessary that enable users to work successfully even in such situations. Narrow spaces require additional placement points of the tool. Can spanners be modified so that the placement possibilities of the tool increase? The combination of the 7.5° offset open end and the double hexagon geometry doubles the placement points. A repeated 180° turn of the wrench around the longitudinal axis during screwdriving provides four placement possibilities, and bolts or screw heads can be engaged every 15°. The Joker 6003 with its smart open end geometry significantly expands the range of uses in confined spaces. The Joker 6003 will automatically find the respective placement point after every turn. The slim yet robust ring side is tilted by 15° to the tool axis. The high-quality surface treatment achieves a high and long-lasting corrosion protection. With tool finder Take it easy: colour coding by size. The Joker pouches are suitable for attachment to walls, shelves, workshop trolleys and the Wera 2go system thanks to the hook and loop fastener system on the back.

• Particularly suitable for narrow screwdriving situations on the bike

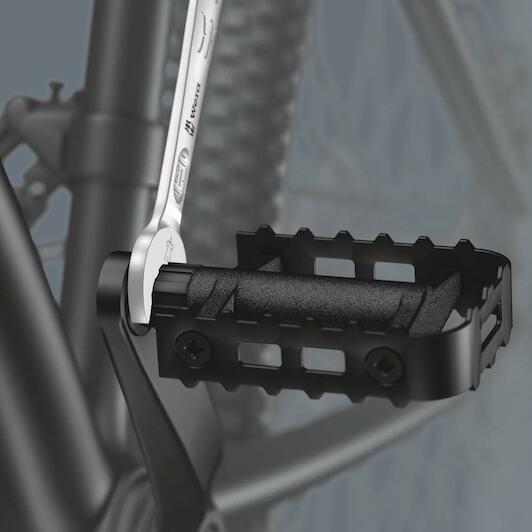

• Joker 6003 pedal size 15 with flat open end to mount and dismount pedals
• Joker 6003 size 9 for use in switchgears (bicycle gearshift)
• The special open end geometry expands the placement possibilities of the tool
• The low return angle in the open end "takes" the screw every 15°

Features and benefits

• Joker 6003 size 9 for use in switchgears (bicycle gearshift)

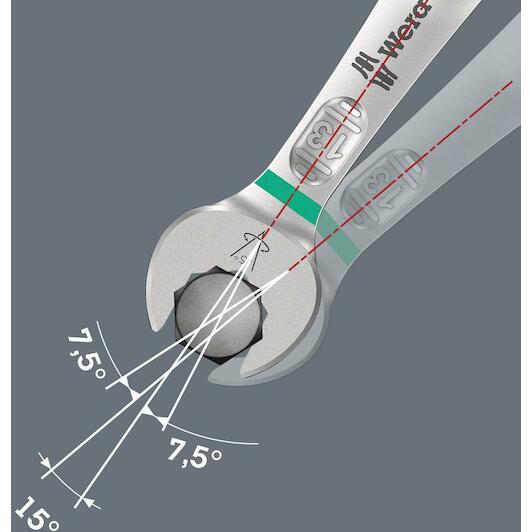

• The Joker 6003 ring spanner with its special open end geometry - open end offset by 7.5° and the double hexagon profile - doubles the placement possibilities when repeatedly turning the wrench 180° around the longitudinal axis. Bolts and screw heads can be "accessed" every 15°. The Joker 6003 will automatically find the respective placement point after every turn.

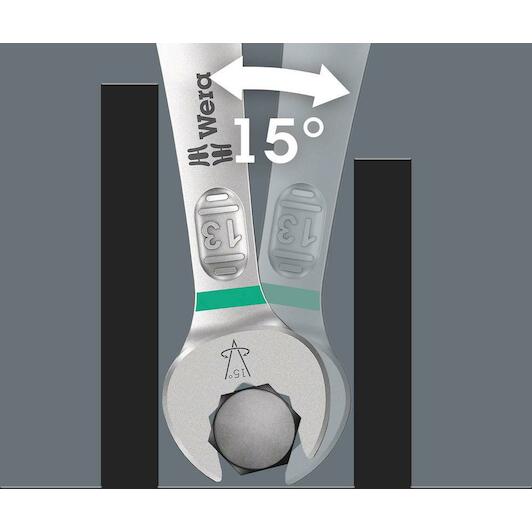

• Thanks to the open end side offset by 7.5°, double hexagon geometry and an adjusted application method (placement - screwdriving - turning - replacement - screwdriving - turning, etc), even screwdriving challenges allowing a return angle of less than 30° can be solved.

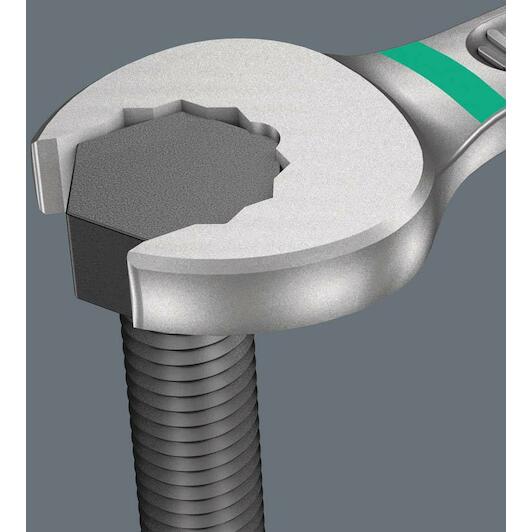

• The double hexagon geometry on the open end and ring sides secures the positive connection with the screw head or bolt and reduces the risk of slipping.
• The ring side is tilted at 15° to the tool axis to prevent injury.
• The extra thin pedal wrench (6003 Joker 15 Pedal) is ideal for narrow installation spaces

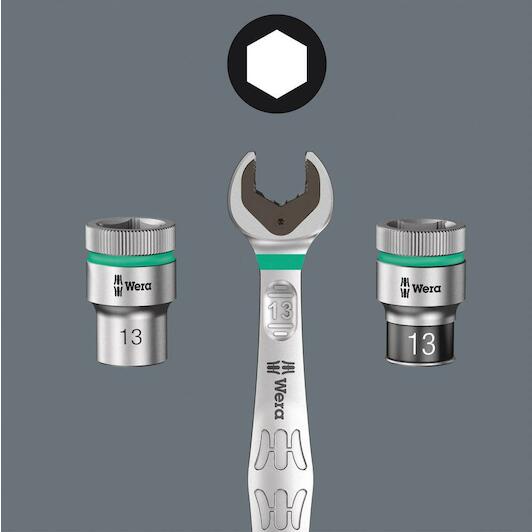

• Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets).

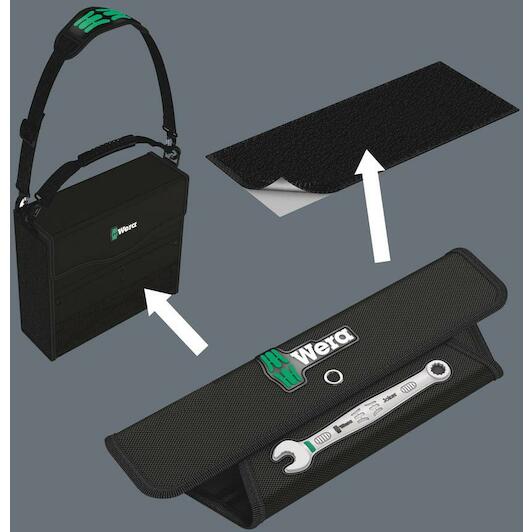

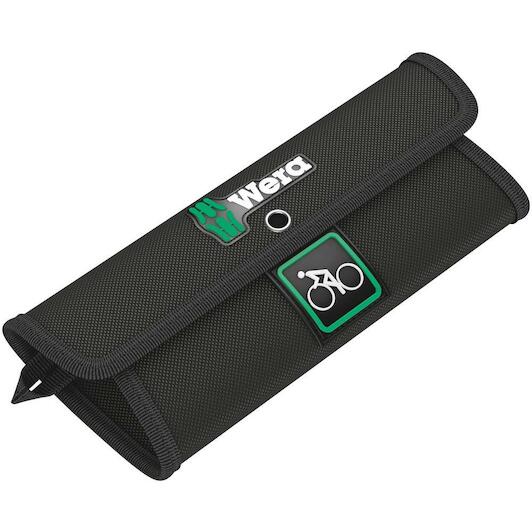

• The Joker pouches are suitable for attachment to walls, shelves, workshop trolleys and the Wera 2go system thanks to the hook and loop fastener system on the back.
