Scope of delivery
- Click-Torque E 1 Push R/L adjustable torque wrench for clockwise and anti-clockwise torque-control, 200-1000 Nm, 3/4" x 200-1000 Nm
Product description
Click torque wrench in the unmistakable Wera design. For clockwise and anti-clockwise torque-control. Very robust design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. With captive 3/4" square head insert to change direction.
- For clockwise and anti-clockwise torque-control thanks to smooth reversing of the captive square head insert
- Measuring range: 200-1000 Nm; precise to ± 3% as per DIN EN ISO 6789-1:2017-07
- 45 teeth and 3/4" square head drive
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values

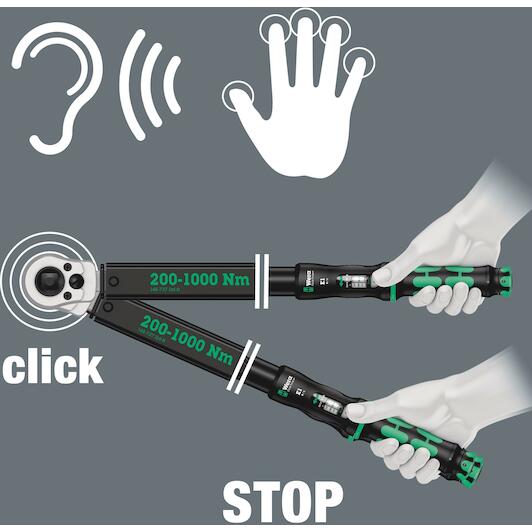

- Audible and tactile release mechanism when the set torque value is reached
Application
- For clockwise and anti-clockwise torque-control
Precision
- Precise to ±3 % of the set value, as per DIN EN ISO 6789-1:2017-07
Design
- With 3/4" square head drive, square head insert to change the tightening direction, fine-teethed ratchet mechanics, 45 teeth; easy setting and saving of the desired torque, with audible and tactile locking when the scale values are reached (fine scale only in Newton meters), audible and tactile release mechanism when the torque value is reached
Handle
- Ergonomic 2-component handle
Features and benefits

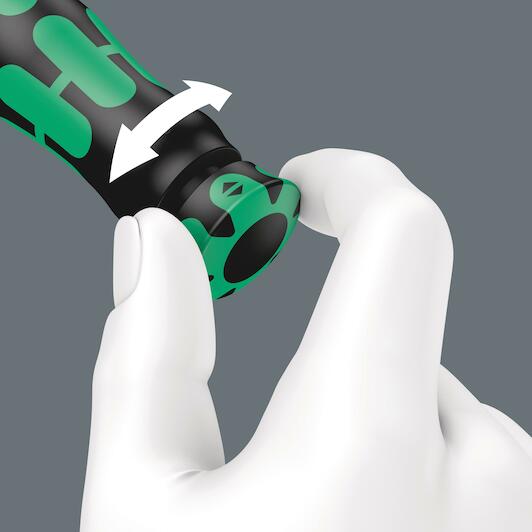

- Reversing with square head insert
- The Click-Torque torque wrench is suitable for clockwise and counterclockwise torque operation. Very smooth change of direction thanks to captive square head insert.
- Precision of ±3 % as per DIN EN ISO 6789-1:2017-07.

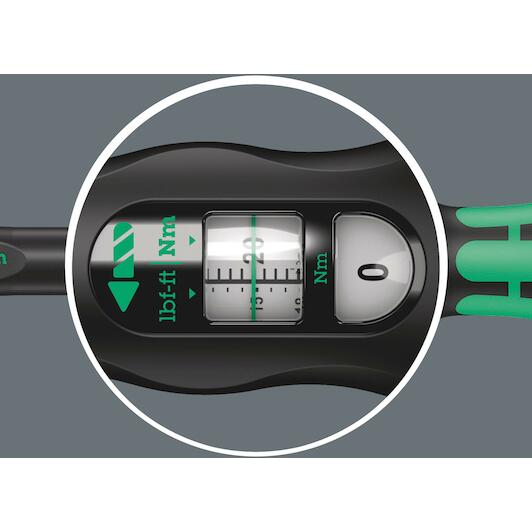

- Easy setting and saving of the desired torque value; easy to read on main and fine scales.
- With audible and tactile locking when the scale values are reached.
- On reaching the desired torque value, an audible and tactile mechanism is triggered.
