Scope of delivery

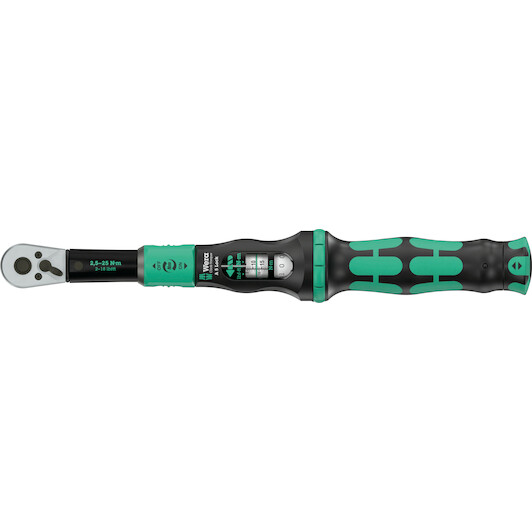

- Click-Torque Lock A 5 Torque wrench, adjustable, Torque Lock function, reversible ratchet, clockwise torque operation, 2.5-25 Nm, 1/4" x 2.5-25 Nm
Product description
Adjustable torque wrench for controlled clockwise torque operation. With 1/4" square head drive. The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±4 % as per DIN EN ISO 6789-1:2017-07.
- With 1/4" square head drive

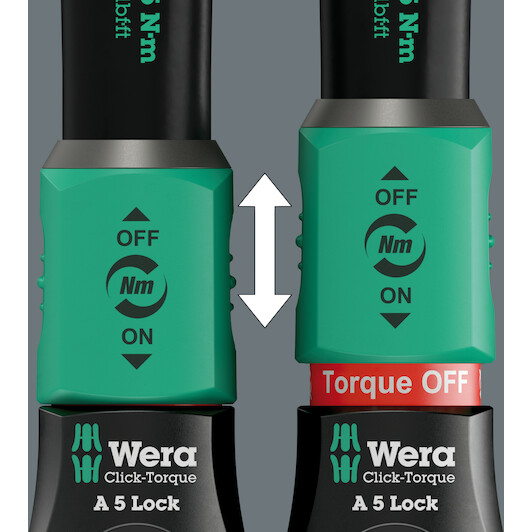

- Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening screws and bolts
- Extra click: audible and tactile torque setting

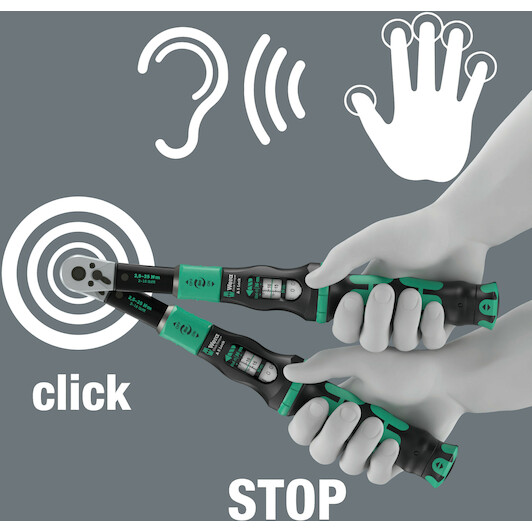

- Torque wrench gives an audible and tactile signal
- Measuring range: 2.5-25 Nm; precision ±4 % as per DIN EN ISO 6789-1:2017-07
Application
- For clockwise torque operation. The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening.
Precision
- Accuracy ±4 % of the set value, as per DIN EN ISO 6789-1:2017-07
Design

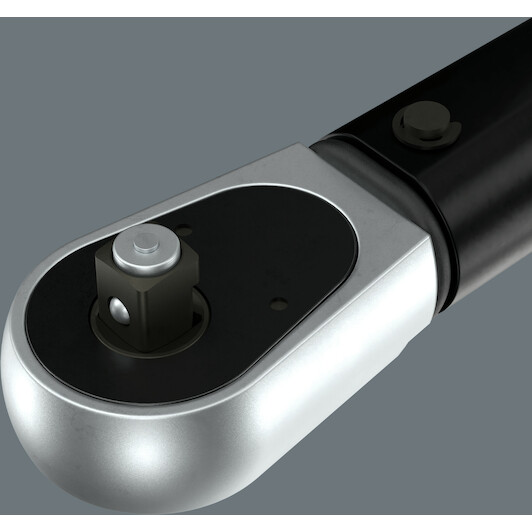

- With 1/4" square head drive, reversible ratchet, 45 teeth; easy setting and saving of the desired torque value, with audible and tactile locking when the scale values are reached (fine scale only in Newton meters), audible and tactile release mechanism when the set torque value is reached
Handle
- Ergonomic 2-component handle
Features and benefits
- The torque function can be deactivated so that the tool can also be used for loosening.
- With 1/4" external square head tip (including patent-registered socket locking).
- Precision of ±34 % as per DIN EN ISO 6789-1:2017-07.

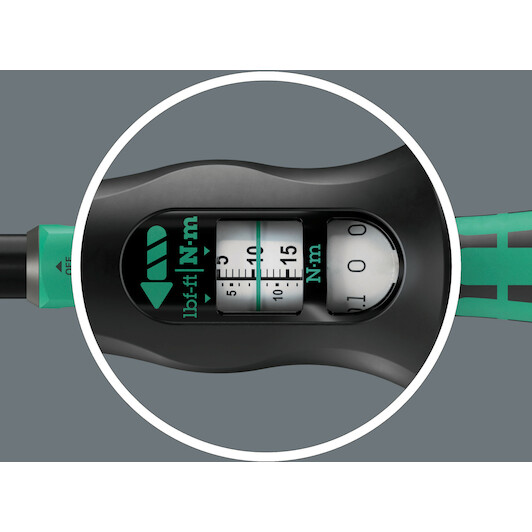

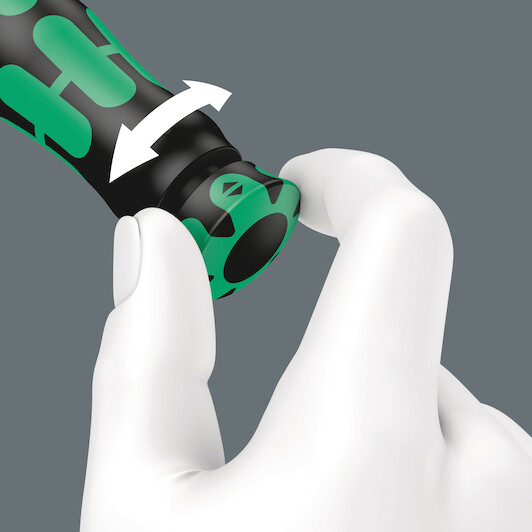

- Easy setting and saving of the desired torque value; easy to read on main and fine scales.
- With audible and tactile locking when the scale values are reached.
- On reaching the desired torque value, an audible and tactile mechanism is triggered.
