WERA Kraftform Kompakt H 1 tool set for wood in fabric case 41 pieces - 05135939001

Scope of delivery

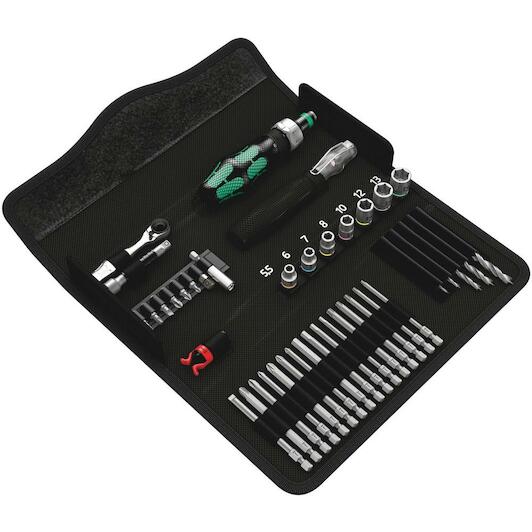

• Kraftform Kompakt H 1 Woodcraft, 41 pieces
• 1x 838 RA-R L Bitholding screwdriver with ratchet functionality, 1/4": 1/4" x 140 mm
• 1x 8001 A Bit Ratchet 1/4": 1/4" x 87 mm
• 1x 870/1 Adaptor: 1/4" x 25 mm
• 1x 8794 SA Zyklop extension with free-turning sleeve, short, 1/4": 1/4" x 75 mm
• 7x 8790 HMA Zyklop 1/4" socket: 5.5x23 mm, 6x23 mm, 7x23 mm, 8x23 mm, 10x23 mm, 12x23 mm, 13x23 mm
• 1x 893/4/1 K Universal Bit Holder: 1/4" x 50 mm
• 3x 851/4 Z bits: PH 1x89 mm, PH 2x89 mm, PH 3x89 mm
• 3x 855/4 Z bits: PZ 1x89 mm, PZ 2x89 mm, PZ 3x89 mm
• 3x 855/1 Z bits: PZ 1x25 mm, PZ 2x25 mm, PZ 3x25 mm
• 5x 867/4 Z TORX® BO bits with bore hole: TX 10x89 mm, TX 15x89 mm, TX 20x89 mm, TX 25x89 mm, TX 30x89 mm
• 2x 867/1 TORX® bits: TX 20x25 mm, TX 25x25 mm
• 4x 840/4 Z bits: 3x89 mm, 4x89 mm, 5x89 mm, 6x89 mm
• 1x 800/4 Z bits: 1 x 5.5 x 89 mm
• 1x 800/1 Z bits: 1 x 5.5 x 25 mm
• 5x 849 HSS Twist Wood Drill Bits: 3x70 mm, 4x74 mm, 5x85 mm, 6x95 mm, 8x110 mm
• 1x 247 Single-pole phase tester: 0.5 x 3 x 70 mm
• 1x 1441 SB Screw gripper attachment for screwdriver blades, long bits and L-keys, with holding function for screws: 4.5-6 x 41 mm

Product description

Compact tool set with the 41 most important screwdriving tools for applications involving wood. Includes the bit ratchet Zyklop Mini with extension and socket adaptor; 8 manual and power tool sockets, sizes 5.5-13, 1 ratchet holder 816 RA with ratcheting function, fine-pitched teeth for small return angle, switchover ring (right, fixed, left), maximum torque 50 Nm and bit take-up with the Rapidaptor technology; 1 universal bit holder; 6 bits in a length of 25 mm; 16 bits of a length of 89 mm; 5 wood twist drill bits with a diameter of 3-8 mm; 1 screw gripper for firmly holding screws; 1 single-pole phase tester 247; textile box, very robust and durable; can be positioned upright in the workshop shelf for convenient storage; additional surface protection thanks to the textile outer material; low weight and volume for simplified mobility.

• Robust Zyklop Mini ratchet suitable for take-up of bits and sockets
• Torque of over 65 Nm thanks to fine-pitched ratchet mechanism and small return angle of 6°
• Ratcheting screwdriver with Rapidaptor technology for rapid bit change
• High quality wood twist drill bits for drilling soft wood, hard wood and laminated panel material
• Set in robust textile box

Features and benefits

• Kraftform Kompakt user ranges - the new special sets - compact yet very versatile. Suitable for all sanitary, wood, metal or electrical applications.
• Compact tool set with the 41 most important screwdriving tools for jobs involving wood.

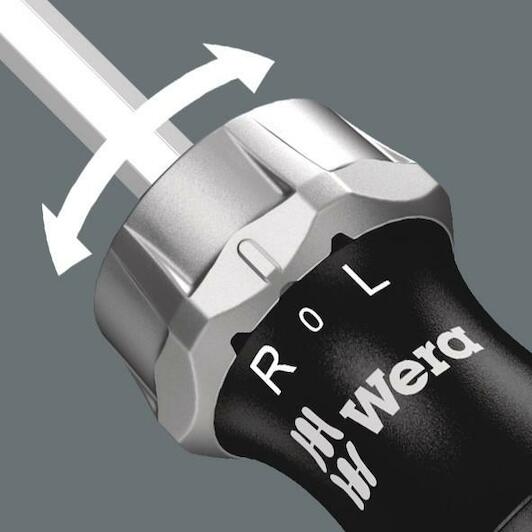

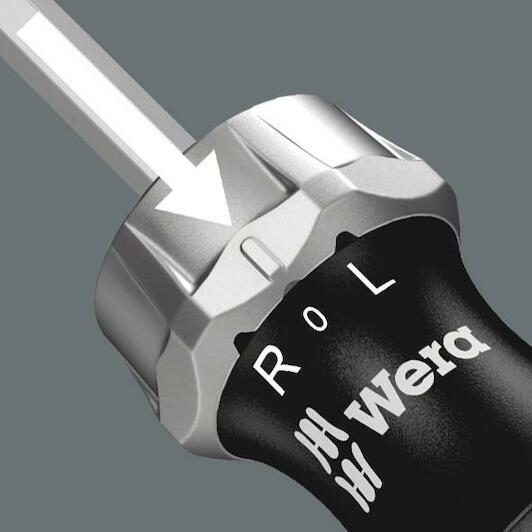

• Ratchet screwdriver, fine-tooth design for minimal return angle, switchover ring (right, locked, left), maximum torque of up to 50 Newton metres, 1/4" hexagon chuck with Rapidaptor technology i.e. rapid-in, rapid-out, rapid-spin, chuck-all and single-hand function for rapid bit change, magnetic, suitable for hexagon socket insert bits as per DIN ISO 1173-C 6.3 and E 6.3 and Wera series 1 and 4
• The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
• For all difficult-to-access applications.
• Twist drill bits - for wood applications
  • 1/4" drive suitable for holders as per DIN 3126-D 6.3 (ISO 1173)
  • Hexagon shaft for very high torque transfer
  • HSS = high speed steel
  • Finely adjusted material elasticity for long service life
  • Excellent concentricity
  • Tough-absorbing tempered bits for particularly long service life

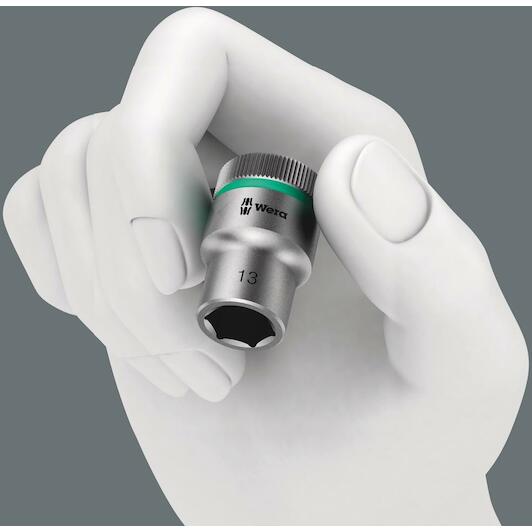

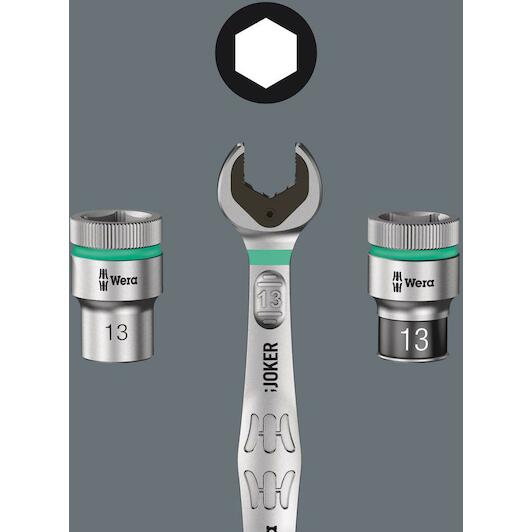

• The manual and machine sockets can be used both for hand and power tools use (non-impact). Users need just one socket set for all applications.
• The textile boxes offer dramatically improved portability, and are space-saving to boot! This means you can now carry the same collection of tools, in a much more compact and comfortable package. The hassle of running back and forth for the right tools has now become a thing of the past. And the much lower weight of a set makes carrying more convenient than ever before. The textile box including the tool will even survive a fall undamaged.
