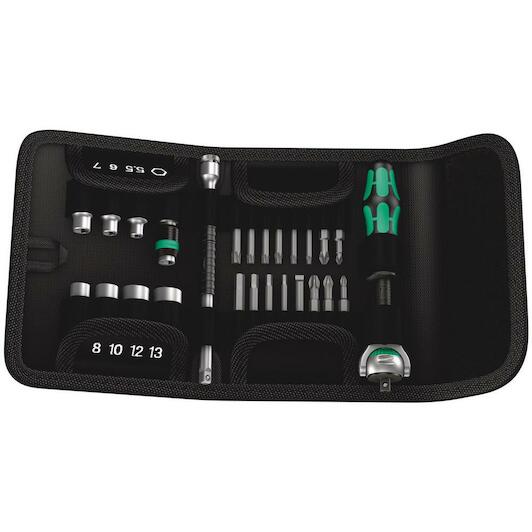

Scope of delivery
- Kraftform Kompakt Zyklop Speed, 26 pieces
- 1x 8000 A Zyklop Speed Ratchet with 1/4" drive: 1/4" x 152 mm
- 1x 8784 A1 Zyklop bit adaptor, 1/4": 1/4" x 37 mm
- 1x 8794 LA Zyklop extension with free-turning sleeve, long, 1/4": 1/4" x 150 mm
- 3x 851/4 TZ bits: PH 1x50 mm, PH 2x50 mm, PH 3x50 mm
- 2x 855/4 TZ bits: PZ 1x50 mm, PZ 2x50 mm
- 6x 867/4 Z TORX® bits: TX 10x50 mm, TX 15x50 mm, TX 20x50 mm, TX 25x50 mm, TX 27x50 mm, TX 30x50 mm
- 1x 800/4 Z bits: 1 x 5.5 x 50 mm
- 4x 840/4 Z bits: 3x50 mm, 4x50 mm, 5x50 mm, 6x50 mm
- 7x 8790 HMA Zyklop 1/4" socket: 5.5x23 mm, 6x23 mm, 7x23 mm, 8x23 mm, 10x23 mm, 12x23 mm, 13x23 mm
- 1x Hook and Loop Fastener Strip 70: 50 x 70 mm
Product description
Ratchet and screws in a Kraftform Kompakt format; including a Zyklop ratchet for incredibly high screwdriving speeds. Combines five different types of ratchet in one. Flywheel design and easy-to-grip, free-turning sleeve for fast working. Freely pivoting ratchet head; predefined locking at 0° and 90° to the left and right as well as 15° from 90° inwards; can be used as a conventional screwdriver in its 0° position. Simple push button release; left/right switchover, fine-toothing, small return angle of 5°. Multi-component Kraftform handle for low-fatigue working. 26-piece, in a pouch for belt attachment: 1 Zyklop ratchet with 1/4" drive, 7 Zyklop sockets (metric), 1 Zyklop extension (long) with free-turning sleeve, 1 adaptor, 16 bits in a length of 50 mm.
- Combines five different types of a ratchet in one
- Flywheel design and easy-to-grip free-turning sleeve for very high working speeds
- Can also be used as a screwdriver
- Fine-toothing for small return angle
- Pouch for belt attachment
Features and benefits
- 1. Fine-tooth ratchet 2. Flex-head ratchet 3. Angle ratchet 4. Quick-release ratchet 5. Power ratchet 6. Screwdriver

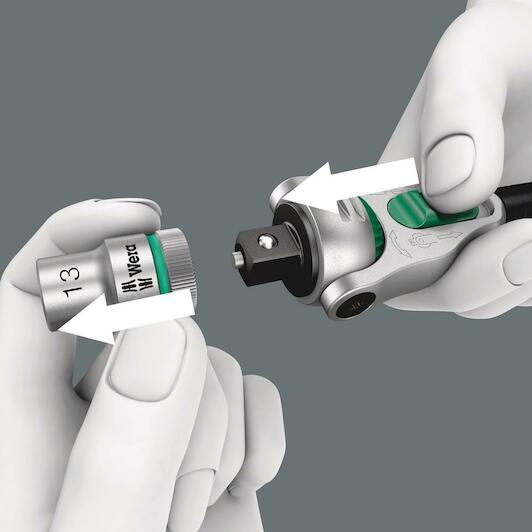

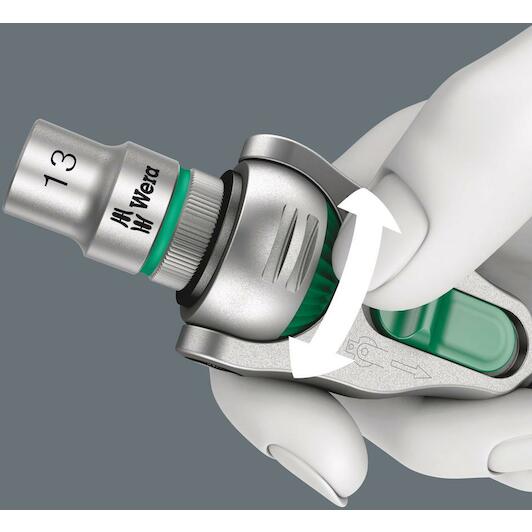

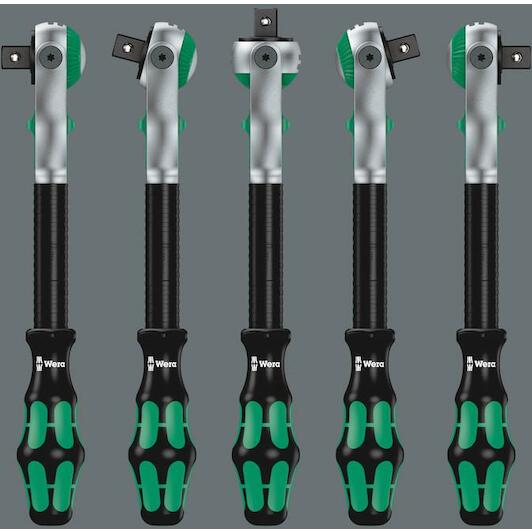

- The ratchet head pivots freely and can be locked into any defined position by using the slide switch that is positioned on either side. It is even possible to work in very confined and difficult-to-access areas with enhanced hand clearance. The predefined locking at 0°, 15° and 90°, both to the right and left, ensure safe working without any slipping of the ratchet head.

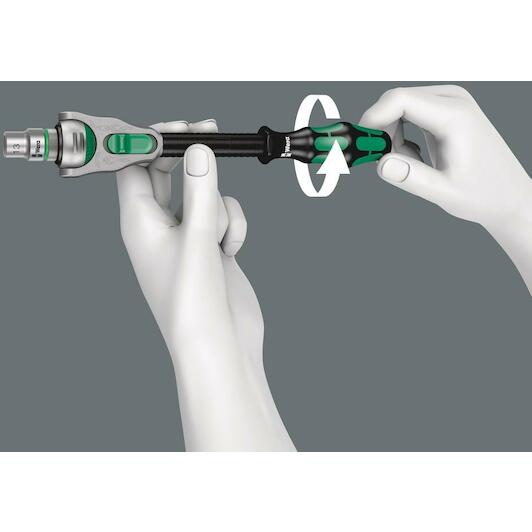

- The Zyklop Speed ratchets are really fast movers. The gyrating mass design means that screwdriving is accelerated. The rotation-symmetric structure of the Kraftform handle and the free-turning sleeve reinforce this rapid twisting process, particularly when the ratchet does not engage due to too little resistance in the thread.

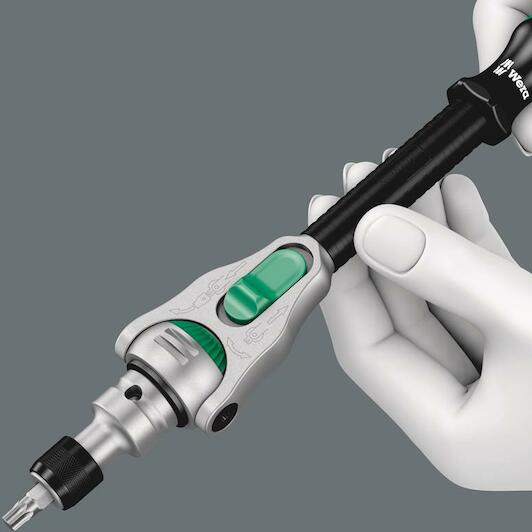

- All Zyklop Speed ratchets feature a thumbwheel that can be used to quickly and easily switch between clockwise and anticlockwise rotation, at any position. No complicated handling, no loss of time!

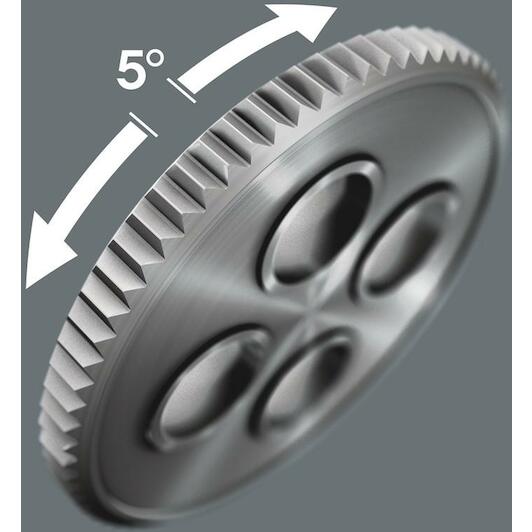

- The reversible ratchet with 72 fine-pitched teeth has a low return angle of only 5°. This short stroke allows fast and precise work in all types of installation.
- The ratchet can be used as a conventional screwdriver in the 0° position by attaching a bitholding adaptor and a bit.

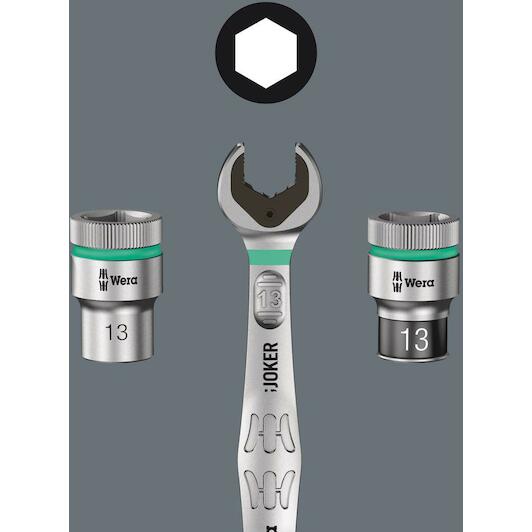

- Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets).
