Scope of delivery

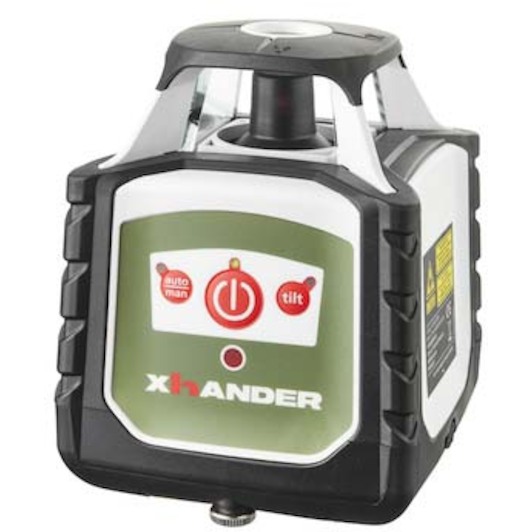

- Rotating laser
- Wall and tripod mount
- Electrical charger for laser

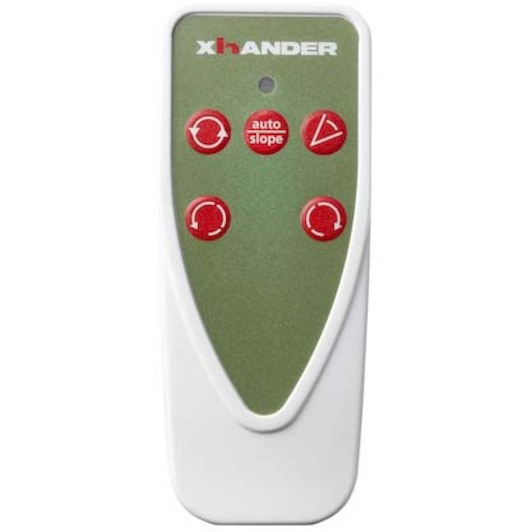

- Remote control supplied with batteries (2 x 1.5V LR03)

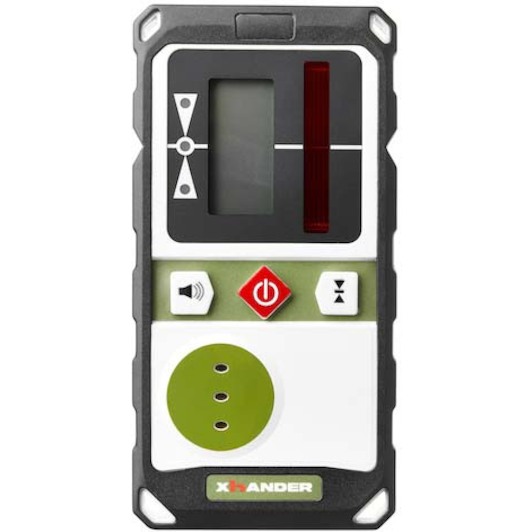

- Laser receiver supplied with batteries (3 x 1.5V LR03)
- Storage and carrying case
Product description
- Automatic shutdown in case of collisions.
- Range with cell: 200 m radius.
- Precision of 0.15 mm/m.
- Rotating laser spirit level with different laser modes: point mode, rotation mode, scanner mode and manual receiver mode.
- 3 rotation speeds.
- Fully automatic alignment and levelling thanks to electronic servomotors equipped with thermally stable sensors (Sensor-Automatic).
- Automatic stop (using the anti-drift system) when the device is moved to prevent measurement errors.
- 90° reference radius for squaring and aligning walls.
- Ability to work on inclined surfaces.
- Sturdy waterproof housing.
- With remote control to operate all functions up to 40 m.
- With laser receiver (magnetised on top) for laser reception up to 200 m radius.
- Wall mount/ tripod mount with 5/8" thread for vertical use.
- Laser and receiver: IP 66.
- 2-year warranty.
Key features according to our expert
-
Laser type: Rotating laser
-
Type of system case: Not applicable
-
Max. range: 2x 20 m
-
Tripod thread: 5/8"
-
Projection (laser beams): circle horizontal or vertical
-
Self-levelling range: 4,0000 °
-
Weight: 1,3 kg
-
With tripod: No
-
Supplied in: Case
-
Laser class: Class 2
-
Accuracy: 0,15 mm/m
-
Colour (laser beams): Red
-
Max. range with receiver: 2x 100 m
-
Protection class IP: IP66
Specifications / All features
-
Brand:
XHANDER
-
08109505
-
EAN:
3661578139003
-
Supplier number:
XHANDER 67651979
- Laser type
- Rotating laser
- Type of system case
- Not applicable
- Max. range
- 2x 20 m
- Tripod thread
- 5/8"
- Projection (laser beams)
- circle horizontal or vertical
- Self-levelling range
- 4,0000 °
- Weight
- 1,3 kg
- With tripod
- No
- Supplied in
- Case
- Laser class
- Class 2
- Accuracy
- 0,15 mm/m
- Colour (laser beams)
- Red
- Max. range with receiver
- 2x 100 m
- Protection class ip
- IP66
- Colour of beam
- red
- Reception range without cell
- 40 m
- Level
- horizontal - vertical
- Levelling precision
- +/- 0.15 mm/m
- Thread for tripod mounting
- yes
- Autonomy
- 14 h
- Automatic setting
- automatic in horizontal - automatic in vertical
- Standards
- CE
- Reception range with cell
- 200 m
- Perpendicular
- no
- Nutrition
- battery-powered
- Remote control
- yes
