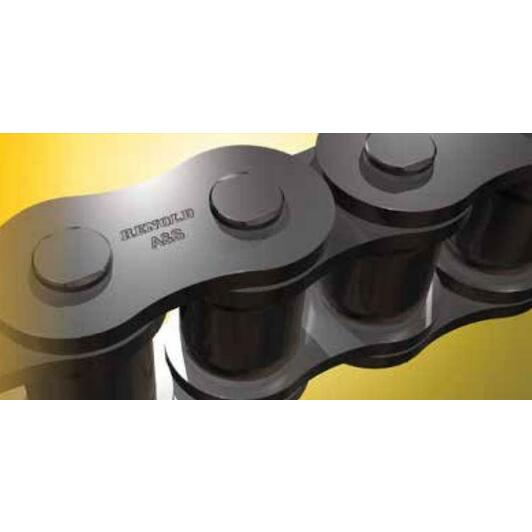

A&S AR24B2X2500 duplex chain 1 1/2" (24b-2)

Supplier number: A&S AR24B2X2500 | EAN 4042279002923
Recommended Retail Price €850.66
417.80 tax incl.
€345.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/10/2026
meter

The minimum purchase order quantity for the product is 2.

  • Ordered before 20:00 - delivered as of 26/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€417.80
tax incl.

Product information

Key features according to our expert

  • Pitch: 1 1/2 inch; 38,1 mm
  • Weight (kg/m): 14,8 kg/m
  • Product line: Renold A&S
  • Type (ISO/ANSI): 24B-2
  • Height: 6,8
  • Inside width: 25,4 mm
  • Version (chain): Duplex
  • Breaking strength: 280000 N
  • Length (pin): 101,3 mm
  • Diameter (pin): 14,63 mm
  • Thickness (outer plate): 5,08 mm
  • Thickness (inner plate): 6,1 mm
  • Plate height: 33,4 mm
  • Diameter (roller): 25,4 mm

Product description:

  • The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
  • The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
  • These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
  • The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
  • The chain can even be supplied with a lubricant based on the customer's specific requirements.
  • Available in sizes with pitch ranging from 4 mm to 2.5 inches
  • Solid extruded bushing
  • Solid extruded roller
  • Plates with wider blades
  • Hardened and glass bead blasted blades
  • Comprehensive European (BS) and ANSI range
  • Wide range of fasteners available
  • Lubricant of choice to meet customer requirements

All Features

Pitch
1 1/2 inch; 38,1 mm
Weight (kg/m)
14,8 kg/m
Product line
Renold A&S
Type (iso/ansi)
24B-2
Height
6,8
Inside width
25,4 mm
Version (chain)
Duplex
Breaking strength
280000 N
Length (pin)
101,3 mm
Diameter (pin)
14,63 mm
Thickness (outer plate)
5,08 mm
Thickness (inner plate)
6,1 mm
Plate height
33,4 mm
Diameter (roller)
25,4 mm
  • Brand A&S
  • EAN 4042279002923
  • Supplier number A&S AR24B2X2500
