Which tools is this impact socket compatible with?

You can use it on cordless, electric, or pneumatic impact wrenches with a 1/2" square drive.

What size and profile does this socket have?

It features a 6-point hexagonal profile with a 24 mm socket size.

What is the purpose of the phosphated finish?

The black phosphate finish provides corrosion protection and resistance to wear during heavy-duty machine use.

How do you safely secure this socket to the tool?

For maximum safety during machine operation, secure the socket using a locking pin and retaining ring through the side hole.

What are the benefits of the Dynamic-Drive profile?

The Dynamic-Drive profile distributes torque across fastener flanks rather than corners, preventing rounding and premature wear.

BAHCO K7801M-24 percussion cap 1/2" hexagonal phosphated 24 mm

Name: BAHCO K7801M-24 percussion cap 1/2" hexagonal phosphated 24 mm
Brand: BAHCO
SKU: 41851164
Price: 9.2 EUR
Availability: InStock

Supplier number: BAHCO K7801M-24 | EAN 7314151779894

Recommended Retail Price €17.56

9.20 tax incl.

€7.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 05/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Lifetime warranty on Bahco? Or limited in time? Read more about it here.
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

XHANDER 69144543 percussion cap 1/2"...

7.70

€6.36 excl. VAT

On stock, immediately available.

GEDORE K 19 24 impact spanner 1/2" 24 mm -...

12.12

€10.02 excl. VAT

On stock, immediately available.

View more alternatives (4)

Heavy-duty impact socket for high torque fastening

Practical benefits

Protects fasteners from wear: The Dynamic-Drive profile distributes force evenly across the fastener walls, preventing you from rounding off 24 mm bolts.
Built for impact tools: Designed for 1/2" power and pneumatic machines, this Bahco socket easily handles the sudden torque peaks of heavy-duty applications.
Durable phosphate steel construction: Made from high-performance alloy steel, the phosphate finish protects against corrosion and delivers long service life in demanding environments.

In a nutshell

The right choise for

With the Bahco K7801m-24 impact socket, you tackle heavy-duty fastening and maintenance tasks with complete confidence. Engineered for use with cordless, electric, and pneumatic impact wrenches with a 1/2" square drive, this 24 mm 6-point socket easily withstands high torque peaks. The advanced Dynamic-Drive profile distributes force across fastener flanks rather than corners, preventing you from rounding off hexagonal nuts and bolts under heavy load. Built from high-performance alloy steel with a protective black phosphate finish, it resists wear and corrosion in demanding workshop environments. For maximum job safety, simply secure the socket to your tool using a locking pin and retaining ring through the side hole.

Product information FAQ

€9.20

In stock - tax incl.

Key features according to our expert

Socket size: 24 mm
Connection size: 1/2"
Length: 41 mm
Type of drive profile (socket): Hexagonal

Product description:

DIN 3129, ISO 2725
Drive: 1/2" DIN 3121-G 12,5 ISO 1174
Finish: Black finish
Material: High performance alloy steel
To be used with machines
For maximum safety, use clamping springs

All Features

Socket size: 24 mm
Connection size: 1/2"
Length: 41 mm
Type of drive profile (socket): Hexagonal

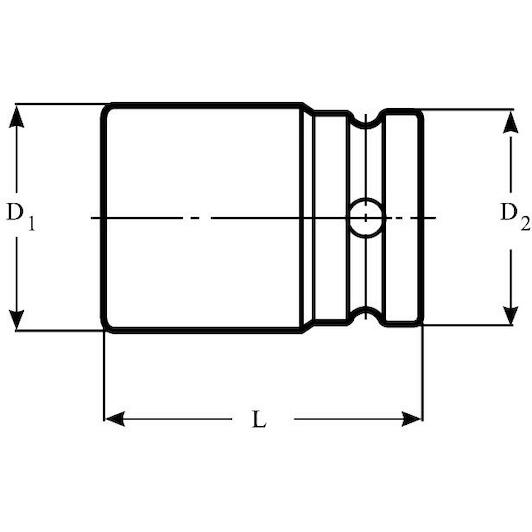

Socket width mm (d1): 35 mm
Size mm: 24 mm
Weight g: 150 g
Width square drive mm (d2): 30 mm
Clamping spring: K560F-5
Length mm (l): 38 mm
Norm: DIN 3129 / ISO 2725 / DIN 3121-G 12,5 / ISO 1174
Depth ball-bearing mm (t): 14 mm

Brand BAHCO
41851164
EAN 7314151779894
Supplier number BAHCO K7801M-24
Warranty Lifetime warranty on Bahco? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

Which tools is this impact socket compatible with?: You can use it on cordless, electric, or pneumatic impact wrenches with a 1/2" square drive.
What size and profile does this socket have?: It features a 6-point hexagonal profile with a 24 mm socket size.
What is the purpose of the phosphated finish?: The black phosphate finish provides corrosion protection and resistance to wear during heavy-duty machine use.
How do you safely secure this socket to the tool?: For maximum safety during machine operation, secure the socket using a locking pin and retaining ring through the side hole.
What are the benefits of the Dynamic-Drive profile?: The Dynamic-Drive profile distributes torque across fastener flanks rather than corners, preventing rounding and premature wear.
