Product description:

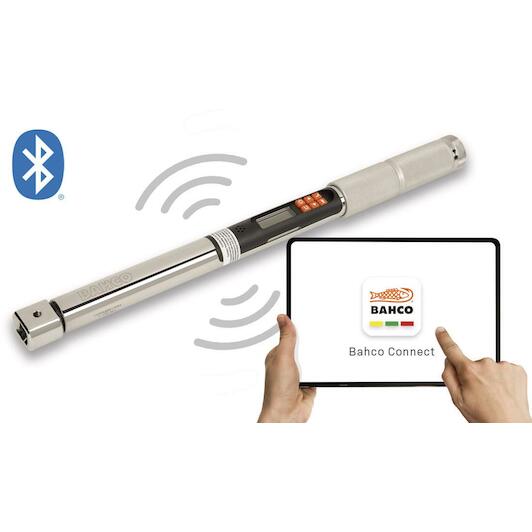

- Digital torque and angle spanner, Bluetooth, fixed ratchet head, with memory, micro, 6.8-135Nm
Features:
- Bluetooth real-time bi-directional data transfer
- Free Bahco Connect app available for Windows 10, Android and iOS in 18 languages
- Easy to set up and use
- Alert for recalibration based on time and/or number of cycles
- Recalibration option
- Data download via the app
- Torque units in Newtonmeter, kg.cm, dNewtonmeter, ft.lb, lb.inch (cNewtonmeter & in.oz depending on range) and angle units in degrees
- Can be used clockwise and anticlockwise at temperatures between 5ºC and 42ºC
- Memory capacity of 1500 readings and up to 50 presets
- Torque, Angle, Torque and angle, Torque then angle, preset and task modes
- Counter
- Data and set value retention during battery replacement
- Programmable automatic switch-off time
- More advanced configurations and settings available in the user manual
- Accurate to ± 2% clockwise - 3% counter-clockwise between 20% and 100% of max torque
- Accurate to ± 4% clockwise and counter-clockwise between 5% and 19% of full scale
- Visual (dual LEDs + backlit LCD display), audio and vibration signal
- 9x12 interchangeable heads for multiple applications and versatility
- Full metal housing for increased strength and durability
- End cap with reverse thread for inserting AA alkaline batteries (included)
- Supplied in sturdy plastic case with declaration of conformity to ISO 6789-1:2017, according to international standards
- CE and UKCA marking
- Made in the USA
Key features according to our expert
-
Min. tightening torque: 7 Nm
-
Drive profile size: 9 x 12 mm
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Max. tightening torque: 135 Nm
Specifications / All features
-
Brand:
BAHCO
-
08086720
-
EAN:
7314150490110
-
Supplier number:
BAHCO TAWMB9135M
- Min. tightening torque
- 7 Nm
- Drive profile size
- 9 x 12 mm
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Max. tightening torque
- 135 Nm
- Measuring range lb.in
- 60-1200 lbf·in
- Head width mm (d)
- 25 mm
- Torque range nm
- 6.8-135 N·m
- Total length mm (a)
- 338 mm
- Weight kg
- 0.73 kg
- Measuring range lb.ft
- 5-100 lbf·ft
- Target range
- 0-360º
- Norms
- CE,ISO6789:2003
- Scale nm
- 0,1 N·m
