Scope of delivery
- Grease tube - 1 615 430 010
- L-BOXX inlay - 1 600 A02 SJ3
- Additional handle - 2 602 025 191
- L-BOXX 238- 1 600 A01 2G2
- SDS plus quick-change chuck- 2 608 572 213
- Depth stop- 1 613 001 009
- Cleaning cloth- 1 619 200 413
- Dust extraction system GDE 18V-16 Professional - 1 600 A00 51M
- Battery and charger not included
Product description

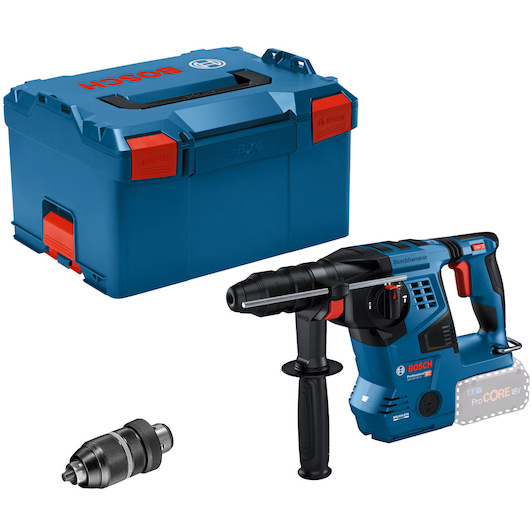

- Cordless hammer for hammering at full power, with quick-change drill chuck
- Brushless motor and impact mechanism with 3.3 J of impact energy for impressive performance
- Vibration Control and KickBack Control for improved user protection
- Perfect control and the right setting for every job with three different working modes (Auto, Favorite, Soft)
Key features according to our expert
-
Battery voltage: 18 V
-
Tool holder type: SDS-plus
-
Impact energy: 3,3 J
-
Max. drilling diameter (concrete): 28 mm
-
Supplied in: System case
-
Type of system case: L-BOXX
-
Weight: 3,4 kg
-
UN number: Not applicable
-
Number of batteries included: 0
-
Product Range: Bosch 18V
Specifications / All features
- Battery voltage
- 18 V
- Tool holder type
- SDS-plus
- Impact energy
- 3,3 J
- Max. drilling diameter (concrete)
- 28 mm
- Supplied in
- System case
- Type of system case
- L-BOXX
- Weight
- 3,4 kg
- Un number
- Not applicable
- Number of batteries included
- 0
- Number of strokes at rated speed
- 4220 min-1
- Uncertainty k (screws)
- 1.5 m/s²
- Uncertainty k (drilling in metal)
- 1.5 m/s²
- Uncertainty k
- 3 dB
- Vibration emission value ah (hammer drilling in concrete)
- 14 m/s²
- Vibration emission value ah
- 9 m/s²
- Max. drill diameter wood
- 30 mm
- Vibration emission value ah (screws)
- 2.5 m/s²
- Impact energy (according to epta 05/2016)
- 3,3 J
- Optimal application range concrete with hammer drills
- 8 - 18 mm
- Tool holder
- SDS plus
- Packaging dimensions (width x length x height)
- 357 x 442 x 253 mm
- Uncertainty k (hammer drilling in concrete)
- 1.5 m/s²
- Sound pressure level
- 91.9 dB(A)
- Sound power level
- 102.9 dB(A)
- Uncertainty k (chiselling in concrete)
- 1.5 m/s²
- Max. drilling diameter in metal
- 13 mm
- Drilling diameter in concrete with hammer drills
- 4 - 28 mm
- Vibration emission value ah (drilling in metal)
- 2.5 m/s²
- Product range
- Bosch 18V
