What is the maximum range of the BOSCH GRL 300 HV rotary laser with the LR1 receiver?

The rotary laser has a maximum range of 300 meters in diameter with the LR1 receiver.

What batteries are compatible with the BOSCH GRL 300 HV rotary laser?

The rotary laser operates on 2x 1.5 V LR20 (D) batteries. The included batteries are 2x 1.2 V HR20 (D) VARTA rechargeable batteries.

Is the BOSCH GRL 300 HV rotary laser resistant to dust and splashing water?

Yes, the rotary laser has an IP54 protection class, meaning it is protected against dust and splashing water.

Can I use the BOSCH GRL 300 HV rotary laser for both horizontal and vertical applications?

Yes, the rotary laser is suitable for both horizontal and vertical applications due to its automatic self-leveling.

What is the accuracy of the BOSCH GRL 300 HV rotary laser?

The accuracy of the rotary laser is 0.1 mm/m. This corresponds to ±3.0 mm at 30 meters.

BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505

Name: BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505
Brand: BOSCH
SKU: 08102838
Price: 764.45 EUR
Availability: PreOrder

Supplier number: BOSCH 0601061505 | EAN 4053423300963

Variant

Recommended Retail Price €1,038.66

764.45 tax incl.

€631.78 excl. VAT (incl. all environmental contributions)

On order: delivered from 19/10/2026

Ordered before 20:00 - delivered as of 19/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!
Delivered from Belgium

✆ Talk to a specialist

Accurate and robust rotary laser for every job

Practical benefits

Easy one-button operation: The Bosch GRL 300 HV rotary laser is easy to operate thanks to one button per function and a self-explanatory display.
Fast, automatic leveling: You quickly set up the laser horizontally and vertically due to automatic self-leveling of 8% (± 5°).
Protected from dust and water: The rotary laser is IP54-rated, which means it is protected against dust and splashing water, for a longer product life.

In a nutshell

The right choise for

With the Bosch grl 300 hv rotary laser, you level quickly and accurately, both horizontally and vertically, up to a 300-meter diameter with the LR1 receiver. The automatic self-leveling of 5° (8%) ensures a fast start to your work. Thanks to IP54 protection, this rotary laser is resistant to dust and splashing water, ideal for various job site conditions. You receive the laser in an l-boxx 238, complete with the LR1 laser receiver and rechargeable D-batteries.

Product information FAQ

€764.45

tax incl.

Key features according to our expert

Laser type: Rotating laser
Weight: 1,8 kg
Max. range: 60 m
With tripod: No
Tripod thread: 5/8"

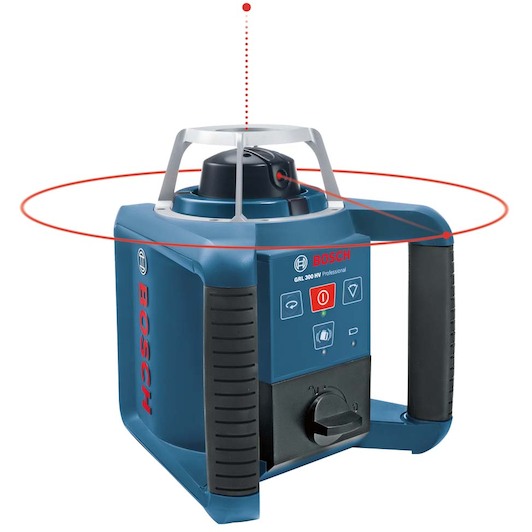

Projection (laser beams): circle horizontal or vertical
Self-levelling range: 5,0000 °
Number of points: 1
Type of system case: L-BOXX
Laser class: Class 3R
Max. range with receiver: 300 m
Supplied in: System case
Accuracy: 0,1 mm/m
Colour (laser beams): Red
IP rating: IP54

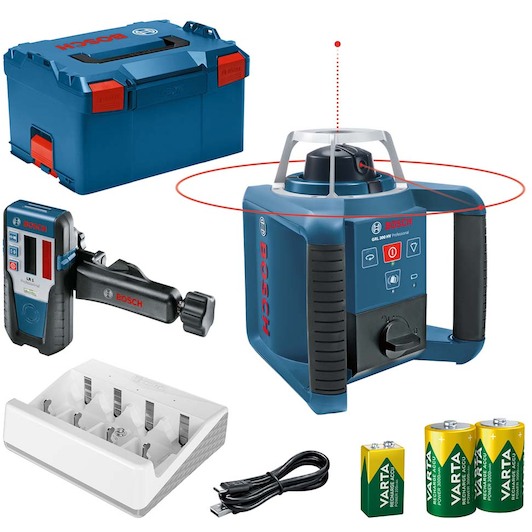

Scope of delivery

Laser receiver LR 1 Professional (order number: 0 601 015 400)
L-BOXX 238 (order number: 1 600 A01 2G2)
2 x 1.2 V HR20 (D) VARTA rechargeable battery
1 x VARTA charger
1 x 9V 7HR9V VARTA rechargeable battery

Product description

Simple operation with horizontal and vertical self-levelling

Easy to operate thanks to one button per function and self-explanatory display
Quickly deployable for horizontal and vertical applications due to automatic self-levelling of 8% (± 5°)
Switchable shock-warning function prevents levelling errors due to vibrations and shocks

Functions and main features

Shock warning function triggers an alarm when tools are moved
Variable rotation speed: higher speed for working with receiver, lower speed for better visibility
Scanning mode for better visibility
IP54 dust and splash water protection

All Features

Laser type: Rotating laser
Weight: 1,8 kg
Max. range: 60 m
With tripod: No
Tripod thread: 5/8"
Projection (laser beams): circle horizontal or vertical
Self-levelling range: 5,0000 °
Number of points: 1
Type of system case: L-BOXX
Laser class: Class 3R
Max. range with receiver: 300 m
Supplied in: System case
Accuracy: 0,1 mm/m
Colour (laser beams): Red
Ip rating: IP54
Operating range with receiver up to (diameter): 300 m
Laser diode: 635 Nm
Operating range without receiver up to (diameter): 60 m
Electrical power supply 2x: 1,5 V
Levelling accuracy +-(*plus usage-dependent deviation): 3 mm
Leveling time: 15 s
Colour laser line: Red
Dust and splash water protection: IP 54
Self-levelling range +-: 5 °
Rotation speed: 150, 300, 600 min-1

Brand BOSCH
08102838
EAN 4053423300963
Supplier number BOSCH 0601061505
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the maximum range of the BOSCH GRL 300 HV rotary laser with the LR1 receiver?: The rotary laser has a maximum range of 300 meters in diameter with the LR1 receiver.
What batteries are compatible with the BOSCH GRL 300 HV rotary laser?: The rotary laser operates on 2x 1.5 V LR20 (D) batteries. The included batteries are 2x 1.2 V HR20 (D) VARTA rechargeable batteries.
Is the BOSCH GRL 300 HV rotary laser resistant to dust and splashing water?: Yes, the rotary laser has an IP54 protection class, meaning it is protected against dust and splashing water.
Can I use the BOSCH GRL 300 HV rotary laser for both horizontal and vertical applications?: Yes, the rotary laser is suitable for both horizontal and vertical applications due to its automatic self-leveling.
What is the accuracy of the BOSCH GRL 300 HV rotary laser?: The accuracy of the rotary laser is 0.1 mm/m. This corresponds to ±3.0 mm at 30 meters.
