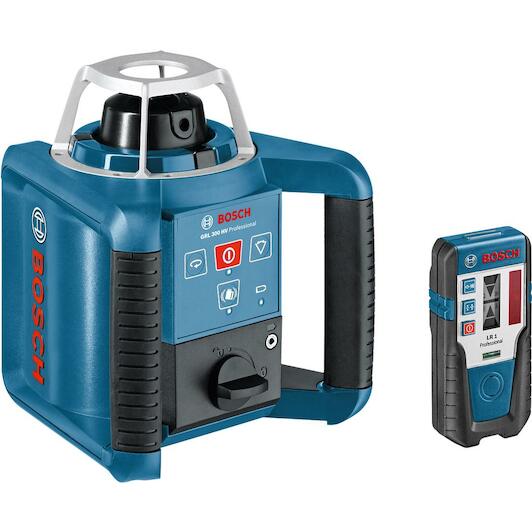

Scope of delivery Tripod BT 170 HD, laser receiver LR 1, GR240, welding target, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA) Product description Rotation laser GRL 300 HV set (tripod BT 170 HD, laser receiver LR 1, GR240, load target plate, glasses, remote control RC1, universal holder WM 4, 1x battery 9V 6LR61, 2x battery 1.5V LR2 (D), 1x battery 1.5V LR6 (AA)) Easy to operate thanks to one button per function and self-explanatory display Quickly deployable for horizontal and vertical applications thanks to automatic self-levelling of 8% (± 5°) Switchable shock-warning function prevents levelling errors due to vibrations and shocks Advantages Simple operation with horizontal and vertical self-levelling
Key features according to our expert
Laser type: Rotating laser
Type of system case: Not applicable
Max. range: 2x 30 m
With tripod: Yes
Projection (laser beams): circle horizontal or vertical
Self-levelling range: 5,0000 °
Weight: 1,8 kg
Tripod thread: 5/8"
Supplied in: Case
Laser class: Class 3R
Accuracy: 0,1 mm/m
Colour (laser beams): Red
Max. range with receiver: 2x 150 m
Protection class IP: IP54
Specifications / All features
Laser type
Rotating laser
Type of system case
Not applicable
Max. range
2x 30 m
With tripod
Yes
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Weight
1,8 kg
Tripod thread
5/8"
Supplied in
Case
Laser class
Class 3R
Accuracy
0,1 mm/m
Colour (laser beams)
Red
Max. range with receiver
2x 150 m
Protection class ip
IP54
Operating range with receiver
300 (diameter) M
Circuit breaker
5 min
Operating range without receiver
60 (diameter) M
Colour laser line
red
Operating time, max.
30 batteries (NiMH) h
Leveling time
15 s
Levelling accuracy
± 0.1 mm
Laser diode
635, < 5 mW mm
Measuring time, type.
< 0,5 s
Electrical power supply
2 x 1.5 (LR03 (AAA)) V
Units of measurement
m/cm, ft/inch
Dust and splash water protection
IP 54
Measuring time max.
4 s
Measurement accuracy, type.
± 1.5 mm
Working range
60 M
Battery type
2 x 1.5 V (lr20 / D) V
Rotation speed
150, 300, 600 rpm
Number of memory values
10
