What are the exact dimensions of this Conti V-belt?

The belt has an A profile (width 13 mm, height 8 mm), an inside length (Li) of 1030 mm (40.5"), a datum length (Ld) of 1060 mm, and an outside length (La) of 1080 mm.

What does the L=L designation mean?

It signifies matched tolerance manufacturing, allowing you to use multiple belts together on multi-groove drives without manual matching.

What cord material is used in this belt?

This classic V-belt features a high-strength polyester (PE) tension cord.

What is the 13/A profile commonly used for?

This classic wrapped profile is engineered for mechanical engineering drives, agricultural and garden machinery, and general industrial power transmission.

How do you confirm this belt fits your equipment?

Check the 13 mm top width and 1060 mm datum length (or 1030 mm inside length) against your existing belt markings or your equipment manual.

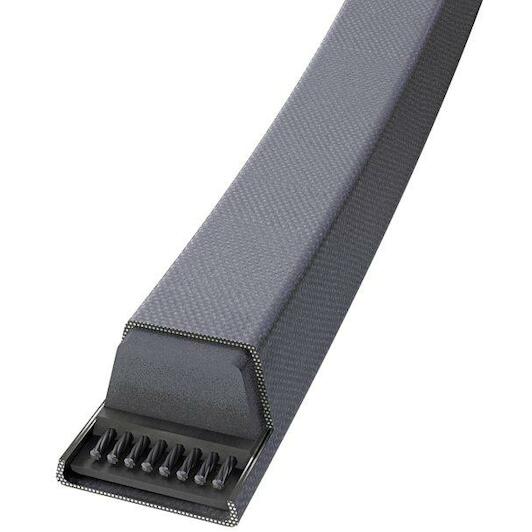

CONTI 13.0X1030 CONTI V belt 13.0X 1030 Li / 1060 Ld A 40.5

Name: CONTI 13.0X1030 CONTI V belt 13.0X 1030 Li / 1060 Ld A 40.5
Brand: CONTI
SKU: 05030113
Price: 25.53 EUR
Availability: InStock

Supplier number: CONTI 13.0X1030 | EAN 4010858351038

25.53 tax incl.

€21.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 19/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Dependable power transmission with Conti

Practical benefits

Matched precision in multi-belt drives: Thanks to the L=L matched manufacturing tolerance, you can combine multiple belts without tension variations or uneven drive wear.
Minimal stretch under load: The durable polyester tension cord maintains dimensional stability during heavy operation, saving you regular retensioning effort.
Resilient in tough environments: The wrapped construction resists dust and moderate oil exposure while operating consistently across temperatures from -55 °C to +70 °C.

In a nutshell

The right choise for

The Conti Conti-V V-belt 13/A A40,5 delivers dependable and efficient power transmission for workshop machinery, agricultural equipment, compressors, and industrial drives. Equipped with a high-strength polyester tension cord, this classic wrapped belt maintains dimensional stability under continuous load, eliminating slip and reducing regular retensioning needs. Its robust profile a construction (13 mm wide, 8 mm high) resists dust and moderate oil exposure, performing reliably across temperatures from -55 °C to +70 °C. Thanks to the L=L matched manufacturing tolerance, you can also run multiple belts simultaneously on multi-groove drives without uneven tension or matching issues.

Product information FAQ

€25.53

In stock - tax incl.

Key features according to our expert

Length: 40,5
Width: 13 mm
Height: 8 mm
Profile (V-belt): A
Reference length Ld: 1060 mm
Inner length (Li): 1030 mm; 40,5 inch
Outer length (La): 1080 mm
Material (cord): PE
Product line: CONTI V
RMA: A40,5
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 40,5
Width: 13 mm
Height: 8 mm
Profile (v-belt): A
Reference length ld: 1060 mm
Inner length (li): 1030 mm; 40,5 inch
Outer length (la): 1080 mm
Material (cord): PE
Product line: CONTI V
Rma: A40,5
Colour (manufacturer): Black

Brand CONTI
05030113
EAN 4010858351038
Supplier number CONTI 13.0X1030

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this Conti V-belt?: The belt has an A profile (width 13 mm, height 8 mm), an inside length (Li) of 1030 mm (40.5"), a datum length (Ld) of 1060 mm, and an outside length (La) of 1080 mm.
What does the L=L designation mean?: It signifies matched tolerance manufacturing, allowing you to use multiple belts together on multi-groove drives without manual matching.
What cord material is used in this belt?: This classic V-belt features a high-strength polyester (PE) tension cord.
What is the 13/A profile commonly used for?: This classic wrapped profile is engineered for mechanical engineering drives, agricultural and garden machinery, and general industrial power transmission.
How do you confirm this belt fits your equipment?: Check the 13 mm top width and 1060 mm datum length (or 1030 mm inside length) against your existing belt markings or your equipment manual.
