What are the exact dimensions of this V-belt?

The belt has a profile width of 13 mm and a height of 8 mm. The inside length (Li) is 2285 mm (90 inches) and the datum length (Ld) is 2315 mm.

What does the L=L designation mean on this belt?

L=L indicates precise manufacturing tolerances. This allows you to combine multiple identical belts into matched drive sets without prior matching.

What tension cord material is used in this V-belt?

This V-belt is built with a polyester (PE) cord for reliable power transmission and dimensional stability.

What applications is the 13/A profile suited for?

This classical wrapped V-belt is designed for demanding industrial drives across mechanical engineering and machinery.

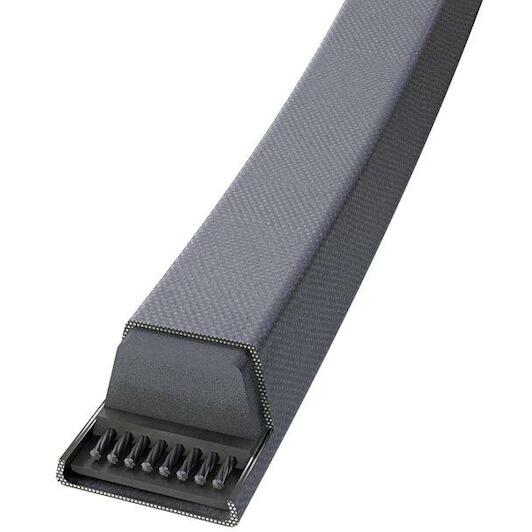

CONTI 13.0X2285 CONTI V belt 13.0X 2285 Li / 2315 Ld A 90

Name: CONTI 13.0X2285 CONTI V belt 13.0X 2285 Li / 2315 Ld A 90
Brand: CONTI
SKU: 05030173
Price: 48.94 EUR
Availability: InStock

Supplier number: CONTI 13.0X2285 | EAN 4010858352295

48.94 tax incl.

€40.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with Conti-V

Practical benefits

Matched set precision: The L=L manufacturing tolerance ensures you can install multiple belts together without length discrepancies.
Low stretch tensile cord: High-strength PE cords minimize elongation, giving you consistent tension and uninterrupted drive performance.
Durable wrapped design: The wrapped A profile protects against dust, friction, and demanding operational temperatures during heavy use.

In a nutshell

The right choise for

With the Conti Conti-V a 90 V-belt, you ensure dependable power transmission across industrial machinery and agricultural equipment. This classical wrapped V-belt in profile a features a 13 mm width, 8 mm height, and an inside length of 2285 mm (90 inches). Built with high-strength polyester tension cords, it minimizes stretch to deliver consistent drive performance between motor and pulley. Thanks to the L=L matched-set tolerance, you can install multiple belts together without length discrepancies or prior sorting, effectively eliminating belt slippage and preventing unexpected machine downtime.

Product information FAQ

€48.94

In stock - tax incl.

Key features according to our expert

Length: 90
Width: 13 mm
Height: 8 mm
Profile (V-belt): A
Reference length Ld: 2315 mm
Inner length (Li): 2285 mm; 90 inch
Outer length (La): 2335 mm
Material (cord): PE
Product line: CONTI V
RMA: A90
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 90
Width: 13 mm
Height: 8 mm
Profile (v-belt): A
Reference length ld: 2315 mm
Inner length (li): 2285 mm; 90 inch
Outer length (la): 2335 mm
Material (cord): PE
Product line: CONTI V
Rma: A90
Colour (manufacturer): Black

Brand CONTI
05030173
EAN 4010858352295
Supplier number CONTI 13.0X2285

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt has a profile width of 13 mm and a height of 8 mm. The inside length (Li) is 2285 mm (90 inches) and the datum length (Ld) is 2315 mm.
What does the L=L designation mean on this belt?: L=L indicates precise manufacturing tolerances. This allows you to combine multiple identical belts into matched drive sets without prior matching.
What tension cord material is used in this V-belt?: This V-belt is built with a polyester (PE) cord for reliable power transmission and dimensional stability.
What applications is the 13/A profile suited for?: This classical wrapped V-belt is designed for demanding industrial drives across mechanical engineering and machinery.
