What are the dimensions and profile of this V-belt?

This classic V-belt has an A profile (13/A) with a top width of 13 mm and a height of 8 mm.

What are the length specifications for this belt?

The belt has an inside length (Li) of 560 mm (22 inches), a datum length (Ld) of 590 mm, and an outside length (La) of 610 mm.

What does the designation A 22 mean?

A 22 indicates the classic A profile combined with an inside length of 22 inches (560 mm).

What material is used for the tension cord?

The internal tension cord of this Conti-V belt is made of polyester (PE) for dependable power transmission.

Which pulleys are compatible with this V-belt?

This belt fits standard V-belt pulleys designed for the classic 13/A profile (13 mm top width).

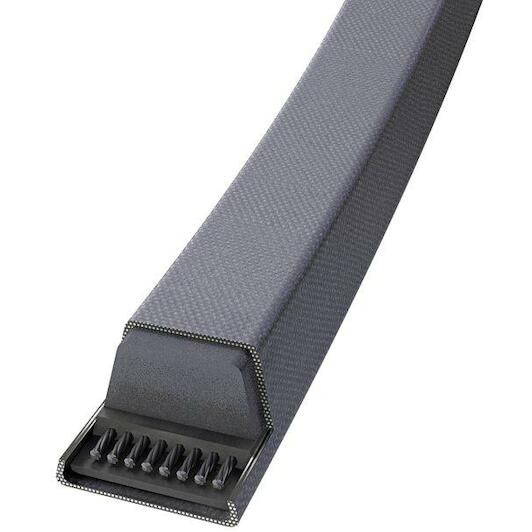

CONTI 13.0X560 CONTI V belt 13.0X 560 Li / 590 Ld A 22

Name: CONTI 13.0X560 CONTI V belt 13.0X 560 Li / 590 Ld A 22
Brand: CONTI
SKU: 05030080
Price: 22.72 EUR
Availability: InStock

Supplier number: CONTI 13.0X560 | EAN 4010858350567

22.72 tax incl.

€18.78 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission for your machinery

Practical benefits

Precise fit with A 22: Built with a classic A profile and a 560 mm inner length, you achieve smooth, slip-free power transfer across your drive pulleys.
High strength PE cord core: The integrated PE tension member absorbs heavy tensile loads so you benefit from minimal belt stretch and consistent operation.
Tough resistance against wear: With its durable wrapped jacket, you protect your drive components from abrasion and keep your machinery running smoothly day after day.

In a nutshell

The right choise for

With the Conti Conti-V V-belt A22, you achieve dependable, slip-free power transmission across your drive systems. Featuring a classic a profile with a 13 mm width and a 560 mm inside length (22 inches), it is ideal for electric motors, industrial machinery, and workshop or agricultural equipment. The strong pe cord tension member absorbs heavy tensile loads with minimal belt stretch, effectively preventing power loss between the motor and driven shaft. Built with a wear-resistant wrapped jacket, this belt ensures smooth, low-vibration operation to keep your machinery running efficiently.

Product information FAQ

€22.72

In stock - tax incl.

Key features according to our expert

Length: 22
Width: 13 mm
Height: 8 mm
Profile (V-belt): A
Reference length Ld: 590 mm
Inner length (Li): 560 mm; 22 inch
Outer length (La): 610 mm
Material (cord): PE
Product line: CONTI V
RMA: A22
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 22
Width: 13 mm
Height: 8 mm
Profile (v-belt): A
Reference length ld: 590 mm
Inner length (li): 560 mm; 22 inch
Outer length (la): 610 mm
Material (cord): PE
Product line: CONTI V
Rma: A22
Colour (manufacturer): Black

Brand CONTI
05030080
EAN 4010858350567
Supplier number CONTI 13.0X560

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: This classic V-belt has an A profile (13/A) with a top width of 13 mm and a height of 8 mm.
What are the length specifications for this belt?: The belt has an inside length (Li) of 560 mm (22 inches), a datum length (Ld) of 590 mm, and an outside length (La) of 610 mm.
What does the designation A 22 mean?: A 22 indicates the classic A profile combined with an inside length of 22 inches (560 mm).
What material is used for the tension cord?: The internal tension cord of this Conti-V belt is made of polyester (PE) for dependable power transmission.
Which pulleys are compatible with this V-belt?: This belt fits standard V-belt pulleys designed for the classic 13/A profile (13 mm top width).
