What are the dimensions and profile of this V-belt?

This classic V-belt features profile B (17/B) with a 17 mm width and 11 mm height. The inside length is 1900 mm (75 inches), the datum length is 1945 mm, and the outside length is 1969 mm.

What does the L=L designation mean on this V-belt?

It indicates matched set tolerances, allowing you to run multiple belts of the same size in a multi-belt drive without manual sorting.

What material is the tension cord made of?

The tension cord is made of polyester (PE) for high tensile strength and minimal elongation.

What is the operating temperature range for this V-belt?

The belt is designed for operating temperatures ranging from -55 °C to +70 °C.

Is this V-belt resistant to oil and dust?

Yes, this wrapped belt offers conditional oil resistance, dust protection, and electrical conductivity to ISO 1813.

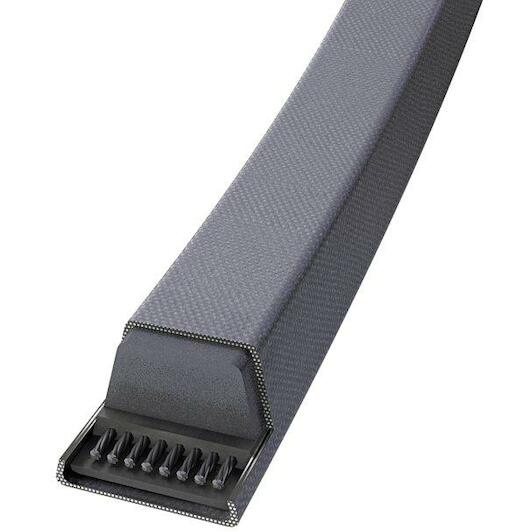

CONTI 17.0X1900 CONTI V belt 17.0X 1900 Li / 1945 Ld B 75

Name: CONTI 17.0X1900 CONTI V belt 17.0X 1900 Li / 1945 Ld B 75
Brand: CONTI
SKU: 05030276
Price: 64.33 EUR
Availability: PreOrder

Supplier number: CONTI 17.0X1900 | EAN 4010858361907

64.33 tax incl.

€53.17 excl. VAT (incl. all environmental contributions)

On order: delivered from 29/10/2026

Ordered before 20:00 - delivered as of 29/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with Conti

Practical benefits

Seamless matched set performance: Manufactured to L=L tolerances, you can install multiple belts together without length discrepancies.
High tensile core stability: The embedded PE cord resists stretching so you spend less time retensioning your drive system.
Built for demanding environments: The fabric jacket shields internal rubber against dust and oil to keep your machinery running smoothly.

In a nutshell

The right choise for

Ensure dependable, slip-free power transmission in your industrial machinery, ventilation systems, or agricultural equipment with the Conti Conti-V 17/B B75 V-belt. Built with a high-strength polyester tension cord, it maintains dimensional stability to save you time on frequent retensioning. Thanks to precision L=L manufacturing tolerances, you can install multiple belts together in matched sets without prior sorting. The durable wrapped jacket protects internal components against dust and oil, delivering consistent performance in operating temperatures ranging from -55 °C to +70 °C.

Product information FAQ

€64.33

tax incl.

Key features according to our expert

Length: 75
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 1945 mm
Inner length (Li): 1900 mm; 75 inch
Outer length (La): 1969 mm
Material (cord): PE
Product line: CONTI V
RMA: B75
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 75
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 1945 mm
Inner length (li): 1900 mm; 75 inch
Outer length (la): 1969 mm
Material (cord): PE
Product line: CONTI V
Rma: B75
Colour (manufacturer): Black

Brand CONTI
05030276
EAN 4010858361907
Supplier number CONTI 17.0X1900

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: This classic V-belt features profile B (17/B) with a 17 mm width and 11 mm height. The inside length is 1900 mm (75 inches), the datum length is 1945 mm, and the outside length is 1969 mm.
What does the L=L designation mean on this V-belt?: It indicates matched set tolerances, allowing you to run multiple belts of the same size in a multi-belt drive without manual sorting.
What material is the tension cord made of?: The tension cord is made of polyester (PE) for high tensile strength and minimal elongation.
What is the operating temperature range for this V-belt?: The belt is designed for operating temperatures ranging from -55 °C to +70 °C.
Is this V-belt resistant to oil and dust?: Yes, this wrapped belt offers conditional oil resistance, dust protection, and electrical conductivity to ISO 1813.
