What are the dimensions of this V-belt?

This V-belt has a top width of 17 mm and a height of 11 mm. It features an inside length (Li) of 2286 mm (90 inches), a datum length (Ld) of 2331 mm, and an outside length (La) of 2355 mm.

What profile does this classical V-belt use?

It uses a classical B/17 profile with a 17 mm top width and an 11 mm height.

What does the L=L designation mean?

L=L indicates matched manufacturing tolerances, allowing you to use multiple belts of the same size together in multi-belt drives without manual matching.

What material is used for the tension cord?

The internal tensile cords are made of PE (polyester) for high tensile strength and minimal stretch.

What are the main applications for this Conti Conti-V belt?

It is designed for demanding mechanical drive systems, including agricultural and horticultural machinery, conveyors, and general industrial equipment.

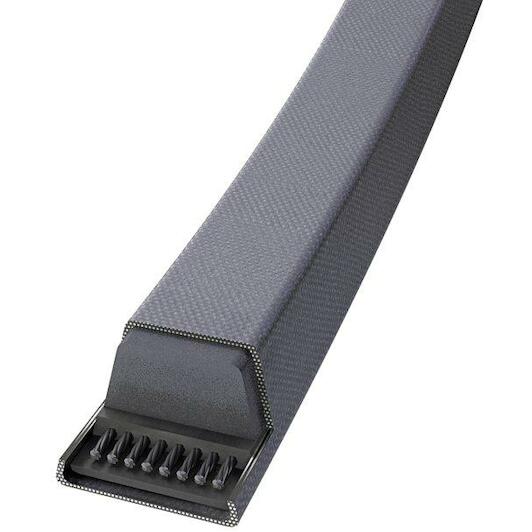

CONTI 17.0X2286 CONTI V-belt 17.0X 2286 Li / 2331 Ld B 90

Name: CONTI 17.0X2286 CONTI V-belt 17.0X 2286 Li / 2331 Ld B 90
Brand: CONTI
SKU: 05030292
Price: 77.98 EUR
Availability: InStock

Supplier number: CONTI 17.0X2286 | EAN 4010858362294

77.98 tax incl.

€64.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 22/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission for demanding machinery

Practical benefits

Smooth operation in matched sets: You can install this V-belt in multi-groove drives without prior sorting thanks to precise manufacturing length tolerances.
High tensile strength polyester cord: The integrated PE tension member absorbs heavy peak loads while preventing unwanted elongation during demanding continuous operation.
Durable wear resistant wrapped cover: The heavy-duty fabric jacket shields internal components from abrasion, dust, and friction heat to ensure an extended service life.

In a nutshell

The right choise for

With the Conti Conti-V B90 V-belt, you ensure reliable, slip-free power transmission across industrial machinery, electric motors, compressors, pumps, and conveyor systems. Featuring a classical 17/B profile, this belt is built with high tensile pe cords that absorb heavy shock loads and prevent belt stretch during demanding continuous operation. Thanks to the precise L=L length tolerance, you can install multiple belts directly in matched sets on multi-groove drives without manual sorting or uneven tension. The durable wrapped fabric jacket protects internal components against dust, friction, and wear, keeping your drive systems running smoothly and efficiently.

Product information FAQ

€77.98

In stock - tax incl.

Key features according to our expert

Length: 90
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 2331 mm
Inner length (Li): 2286 mm; 90 inch
Outer length (La): 2355 mm
Material (cord): PE
Product line: CONTI V
RMA: B90
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 90
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 2331 mm
Inner length (li): 2286 mm; 90 inch
Outer length (la): 2355 mm
Material (cord): PE
Product line: CONTI V
Rma: B90
Colour (manufacturer): Black

Brand CONTI
05030292
EAN 4010858362294
Supplier number CONTI 17.0X2286

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt has a top width of 17 mm and a height of 11 mm. It features an inside length (Li) of 2286 mm (90 inches), a datum length (Ld) of 2331 mm, and an outside length (La) of 2355 mm.
What profile does this classical V-belt use?: It uses a classical B/17 profile with a 17 mm top width and an 11 mm height.
What does the L=L designation mean?: L=L indicates matched manufacturing tolerances, allowing you to use multiple belts of the same size together in multi-belt drives without manual matching.
What material is used for the tension cord?: The internal tensile cords are made of PE (polyester) for high tensile strength and minimal stretch.
What are the main applications for this Conti Conti-V belt?: It is designed for demanding mechanical drive systems, including agricultural and horticultural machinery, conveyors, and general industrial equipment.
