What are the main dimensions of this timing belt?

This timing belt has a length of 1440 mm, a width of 12 mm, and an 8 mm pitch.

How many teeth does this Conti belt have?

It features exactly 180 teeth along its 1440 mm length.

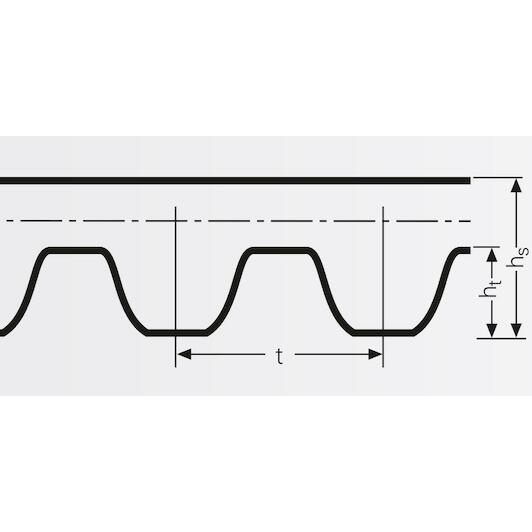

What tooth profile does this timing belt feature?

It features a CTD C8M profile designed for heavy-duty industrial drives.

What is the operating temperature range?

Depending on the application, it operates within a range of -55 °C to +80 °C.

What applications is the Conti Synchrochain Carbon designed for?

It is engineered for high-torque applications and serves as a maintenance-free chain replacement.

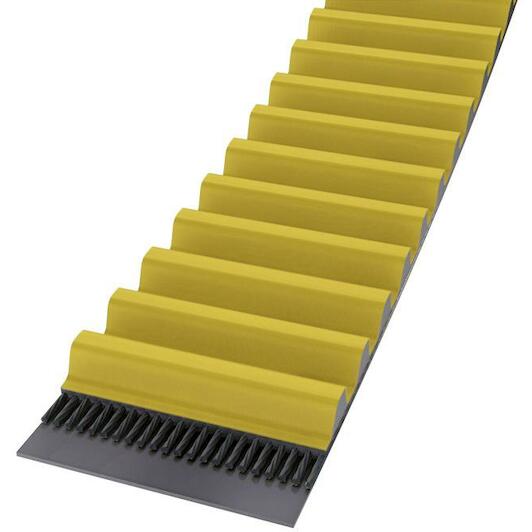

CONTI CTD 8M 1440 12 C10/11 S+Z Conti Synchrochain carbon timing belt - CTD8144012SCC

Name: CONTI CTD 8M 1440 12 C10/11 S+Z Conti Synchrochain carbon timing belt - CTD8144012SCC
Brand: CONTI
SKU: 02689925
Price: 237.19 EUR
Availability: PreOrder

Supplier number: CONTI CTD8144012SCC | EAN 4051817286312

237.19 tax incl.

€196.03 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/11/2026

Ordered before 20:00 - delivered as of 02/11/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Superior drive efficiency with Conti

Practical benefits

Maximum torque transmission capacity: High-tensile carbon cords allow you to transfer heavy loads smoothly without stretching over time.
Smooth and quiet engagement: The specialized CTD 8M tooth design meshes cleanly into pulleys, significantly reducing operating noise and vibration.
Entirely maintenance-free operation: Built with wear-resistant polyurethane, the belt retains its tension reliably so you avoid unexpected machine downtime.

In a nutshell

The right choise for

With the Conti Synchrochain Carbon ctd 8m 1440 timing belt, you transfer extreme torque reliably without stretch or loss of power. Built from wear-resistant polyurethane with high-tensile carbon cords, this belt provides a maintenance-free replacement for traditional roller chains. The advanced ctd C8m tooth profile, featuring 180 teeth and an 8 mm pitch, meshes smoothly with pulleys to minimize vibration and operational noise. With a 12 mm width and a length of 1440 mm, it maintains tension consistently across temperatures ranging from -55 °C to +80 °C, keeping your heavy-duty industrial machinery running without interruption.

Product information FAQ

€237.19

tax incl.

Key features according to our expert

Length: 1440
Pitch: 8 mm
Width: 12 mm
Profile (timing belt): C8M
Product line: CONTI SYNCHROCHAIN CARBON
Nominal length: 1440 mm
Number of teeth: 180

Product description:

Heavy-duty timing belts for all extreme applications with extremely high torques, also suitable as a replacement for chain drives

Properties:

Temperature range
Depending on application
From -55 °C* to +80 °C
Increased power ratings
Longitudinally stable throughout its lifetime
Resistant to oils
Grease and fuel
Conditionally resistant to acid and lye
Raw materials and production are silicone free
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 1440
Pitch: 8 mm
Width: 12 mm
Profile (timing belt): C8M
Product line: CONTI SYNCHROCHAIN CARBON
Nominal length: 1440 mm
Number of teeth: 180

Brand CONTI
02689925
EAN 4051817286312
Supplier number CONTI CTD8144012SCC

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this timing belt?: This timing belt has a length of 1440 mm, a width of 12 mm, and an 8 mm pitch.
How many teeth does this Conti belt have?: It features exactly 180 teeth along its 1440 mm length.
What tooth profile does this timing belt feature?: It features a CTD C8M profile designed for heavy-duty industrial drives.
What is the operating temperature range?: Depending on the application, it operates within a range of -55 °C to +80 °C.
What applications is the Conti Synchrochain Carbon designed for?: It is engineered for high-torque applications and serves as a maintenance-free chain replacement.
