What are the dimensions and pitch of this timing belt?

The belt has a width of 5 mm, a tooth pitch of 5 mm, and a total length of 30000 mm (30 m).

Which tooth profile does this belt have?

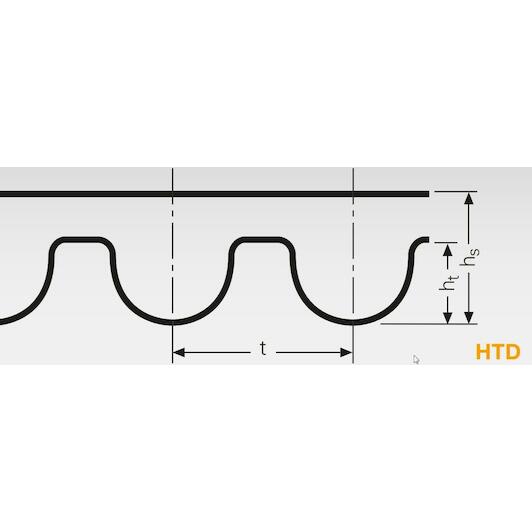

The timing belt features an HTD 5M profile.

What material is this belt made of?

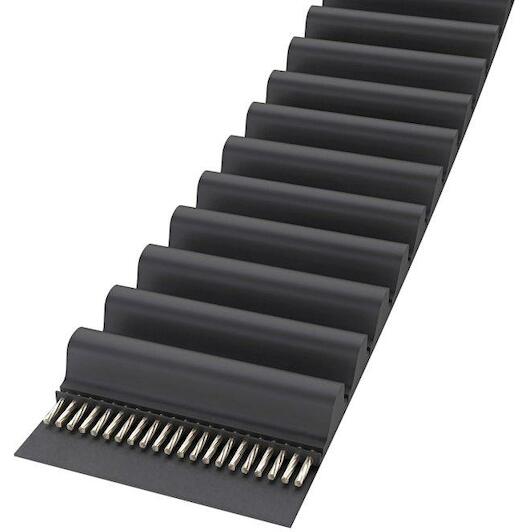

It is made of wear-resistant polyurethane (PU) with reinforced HP steel tension cords.

What applications is this timing belt suitable for?

This open-ended belt is engineered for linear drives, conveying systems, and positioning mechanisms.

Can this open-ended belt be welded?

Yes, the thermoplastic polyurethane can be welded to create an endless belt for transport tasks.

CONTI HTD 5M 5 HP Conti Synchrodrive timing belt - HTD55HP-B

Name: CONTI HTD 5M 5 HP Conti Synchrodrive timing belt - HTD55HP-B
Brand: CONTI
SKU: 02620993
Price: 11.36 EUR
Availability: InStock

Supplier number: CONTI HTD55HP-B | EAN 4051817244046

11.36 tax incl.

€9.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

Ordered before 20:00 - delivered as of 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate power transmission with Conti Synchrodrive

Practical benefits

High resistance to wear: The durable thermoplastic polyurethane resists abrasion, oils, and grease, ensuring you get a long service life.
Precise slip-free linear positioning: With the HTD 5M profile and 5 mm pitch, you achieve smooth and accurate synchronous motion.
Versatile installation for machinery: You can easily cut the open-ended belt to size or weld it for specific linear drives and transport conveyors.

In a nutshell

The right choise for

With the Conti Synchrodrive htd 5m timing belt, you achieve precise and slip-free synchronous power transmission in your industrial machinery. Made from durable thermoplastic polyurethane, it resists wear, oils, and grease to minimize maintenance requirements and maximize service life. Featuring the htd 5m profile with a 5 mm pitch and reinforced hp steel tension cords, it delivers accurate motion control and smooth synchronization across long distances. With a 5 mm width and a total length of 30000 mm, this open-ended belt is easily cut to size for linear drives, positioning mechanisms, and conveyor systems, or welded endlessly for specific handling applications.

Product information FAQ

€11.36

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 5 mm
Width: 5 mm
Profile (timing belt): HTD 5M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 5 mm
Width: 5 mm
Profile (timing belt): HTD 5M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02620993
EAN 4051817244046
Supplier number CONTI HTD55HP-B

Frequently asked questions about this product

Answered by specialists

What are the dimensions and pitch of this timing belt?: The belt has a width of 5 mm, a tooth pitch of 5 mm, and a total length of 30000 mm (30 m).
Which tooth profile does this belt have?: The timing belt features an HTD 5M profile.
What material is this belt made of?: It is made of wear-resistant polyurethane (PU) with reinforced HP steel tension cords.
What applications is this timing belt suitable for?: This open-ended belt is engineered for linear drives, conveying systems, and positioning mechanisms.
Can this open-ended belt be welded?: Yes, the thermoplastic polyurethane can be welded to create an endless belt for transport tasks.
