What are the dimensions of this timing belt?

It has a width of 30 mm, a pitch of 8 mm (HTD 8M profile), and a nominal length of 30000 mm.

What applications is the Conti Synchrodrive HTD 8M HF designed for?

This open-ended polyurethane timing belt is designed for linear drives, conveying systems, and lifting mechanisms.

What does the HF designation indicate on this belt?

HF stands for high flexibility, providing excellent bendability for smaller pulley diameters and reverse tensioning idlers.

What is the operating temperature range?

The timing belt is suitable for operating temperatures from -30 °C to +80 °C.

Which substances is this polyurethane belt resistant to?

It is wear-resistant and withstands oil, grease, fuels, UV radiation, and ozone.

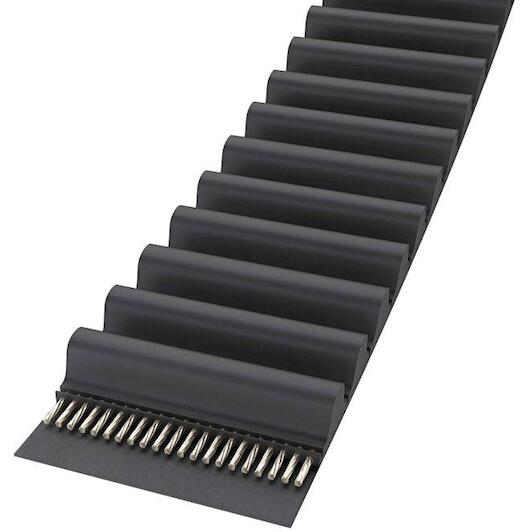

CONTI HTD 8M 30 HF Conti Synchrodrive timing belt - HTD830HF-B

Name: CONTI HTD 8M 30 HF Conti Synchrodrive timing belt - HTD830HF-B
Brand: CONTI
SKU: 02231964
Price: 24.12 EUR
Availability: InStock

Supplier number: CONTI HTD830HF-B | EAN 4051817241373

24.12 tax incl.

€19.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

Ordered before 20:00 - delivered tomorrow 21/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with Conti Synchrodrive

Practical benefits

Superior wear resistance daily: The polyurethane construction ensures you experience minimal belt stretch under demanding industrial loads.
Precise synchronous motion control: With the HTD 8M tooth profile, you achieve accurate machine positioning and slip-free torque transfer.
High oil and grease resistance: You work safely in harsh mechanical environments thanks to the excellent chemical resistance of the material.

In a nutshell

The right choise for

With the Conti Synchrodrive htd 8m hf polyurethane timing belt, you achieve precise and slip-free power transmission across your industrial machinery. Featuring an htd 8m tooth profile with an 8 mm pitch and a 30 mm width, this belt delivers exact positioning and smooth motion control in linear drives, conveying setups, and lifting systems. The polyurethane structure minimizes belt stretch while providing excellent wear resistance under demanding loads. Thanks to the hf design, you benefit from superior flexibility on smaller pulley diameters and reverse tensioning idlers. Operable from -30 °C to +80 °C and resistant to oil, grease, fuels, uv radiation, and ozone, it guarantees dependable, low-maintenance performance.

Product information FAQ

€24.12

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 8 mm
Width: 30 mm

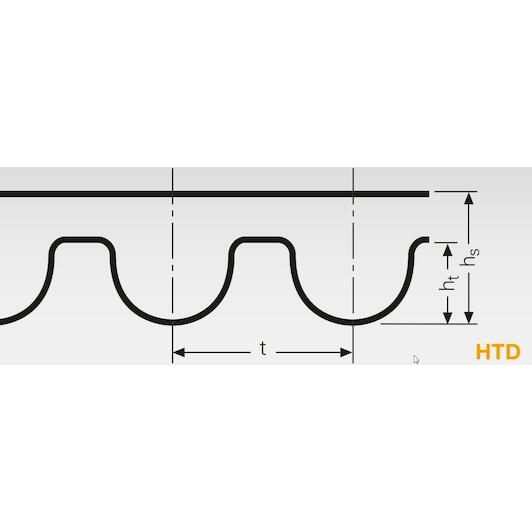

Profile (timing belt): HTD 8M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 8 mm
Width: 30 mm
Profile (timing belt): HTD 8M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02231964
EAN 4051817241373
Supplier number CONTI HTD830HF-B

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this timing belt?: It has a width of 30 mm, a pitch of 8 mm (HTD 8M profile), and a nominal length of 30000 mm.
What applications is the Conti Synchrodrive HTD 8M HF designed for?: This open-ended polyurethane timing belt is designed for linear drives, conveying systems, and lifting mechanisms.
What does the HF designation indicate on this belt?: HF stands for high flexibility, providing excellent bendability for smaller pulley diameters and reverse tensioning idlers.
What is the operating temperature range?: The timing belt is suitable for operating temperatures from -30 °C to +80 °C.
Which substances is this polyurethane belt resistant to?: It is wear-resistant and withstands oil, grease, fuels, UV radiation, and ozone.
