What are the dimensions and profile specifications of this belt?

It features an HTD 8M profile with an 8 mm pitch, a 30 mm width, and a nominal length of 30000 mm.

What material is this timing belt made of?

It is made of wear-resistant thermoplastic polyurethane (PU) reinforced with steel tension cords.

Which applications is the Conti Synchrodrive HP suitable for?

It is designed for linear drives, conveying systems, and demanding power transmission setups.

What is the operating temperature range for this belt?

The belt operates reliably in temperatures ranging from -30 °C to +80 °C.

Is this polyurethane timing belt resistant to oils and chemicals?

Yes, the belt is resistant to oils, grease, fuels, UV radiation, and ozone.

CONTI HTD 8M 30 HP Conti Synchrodrive timing belt - HTD830HP-B

Name: CONTI HTD 8M 30 HP Conti Synchrodrive timing belt - HTD830HP-B
Brand: CONTI
SKU: 02231965
Price: 25.41 EUR
Availability: InStock

Supplier number: CONTI HTD830HP-B | EAN 4051817244619

25.41 tax incl.

€21.00 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

Ordered before 20:00 - delivered as of 19/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate power transmission in linear drives

Practical benefits

Superior resistance against wear: Thanks to the durable polyurethane construction, you benefit from consistent tooth geometry and extended service life.
High tensile positioning accuracy: Internal tension cords minimize elongation so you maintain precise synchronization even under demanding operational loads.
Resistant to harsh substances: You can operate safely in demanding industrial environments because the profile resists oils, greases, and environmental aging.

In a nutshell

The right choise for

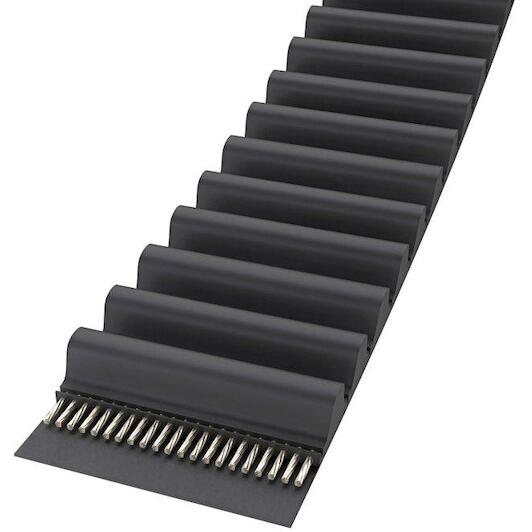

With the Conti Synchrodrive Black htd 8m hp polyurethane timing belt, you achieve reliable, highly accurate power transmission for linear drives and conveyor systems. Its wear-resistant thermoplastic polyurethane construction maintains consistent tooth geometry and delivers long-lasting durability under demanding loads. Integrated steel tension cords minimize elongation, preventing slippage and securing precise positioning even under high torque. Featuring a 30 mm width, an 8 mm pitch, and an operating temperature range from -30 °C to +80 °C, this low-maintenance timing belt performs dependably in challenging industrial environments exposed to oils, greases, fuels, uv radiation, and ozone.

Product information FAQ

€25.41

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 8 mm
Width: 30 mm

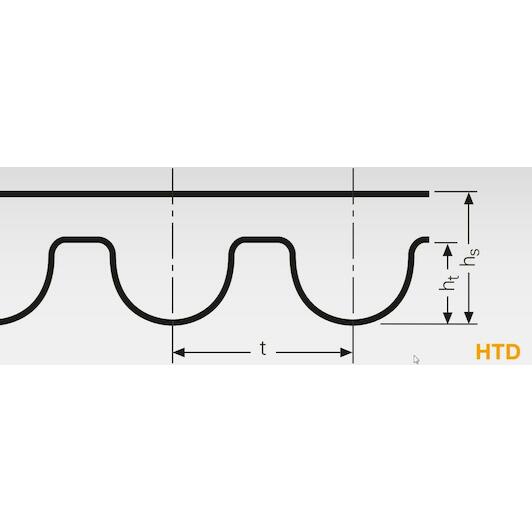

Profile (timing belt): HTD 8M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 8 mm
Width: 30 mm
Profile (timing belt): HTD 8M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02231965
EAN 4051817244619
Supplier number CONTI HTD830HP-B

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile specifications of this belt?: It features an HTD 8M profile with an 8 mm pitch, a 30 mm width, and a nominal length of 30000 mm.
What material is this timing belt made of?: It is made of wear-resistant thermoplastic polyurethane (PU) reinforced with steel tension cords.
Which applications is the Conti Synchrodrive HP suitable for?: It is designed for linear drives, conveying systems, and demanding power transmission setups.
What is the operating temperature range for this belt?: The belt operates reliably in temperatures ranging from -30 °C to +80 °C.
Is this polyurethane timing belt resistant to oils and chemicals?: Yes, the belt is resistant to oils, grease, fuels, UV radiation, and ozone.
