What are the exact dimensions of this V-belt?

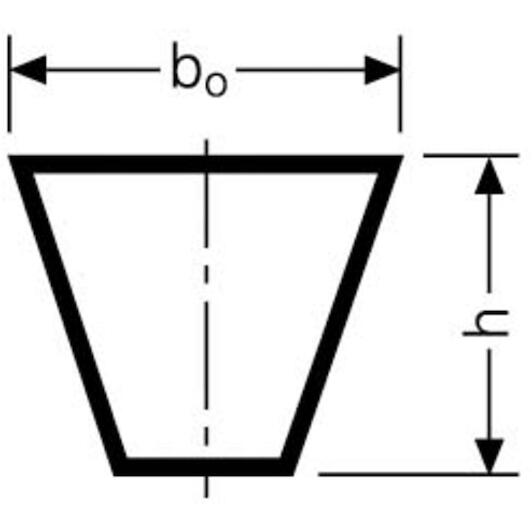

This V-belt features an SPZ profile with a top width of 9,7 mm, a height of 8 mm, and a datum length Ld of 1537 mm (outer length La of 1549 mm).

What does the L=L designation mean on Conti belts?

L=L indicates a matched set with identical manufacturing tolerances. You can install multiple belts together in multi-groove drives without measuring or sorting.

What are the operating temperatures and resistance properties?

The belt operates from -55 °C to +70 °C, is dust-protected, conditionally oil-resistant, and antistatic according to ISO 1813.

Which standards and profiles is this V-belt compatible with?

It meets the SPZ profile according to DIN 7753 / ISO 4184 and corresponds to RMA 3V605 and 9N standards for SPZ pulleys.

What material is used for the internal tension cord?

The tensile member is made of polyester (PE), providing high power transmission and minimal elongation under load.

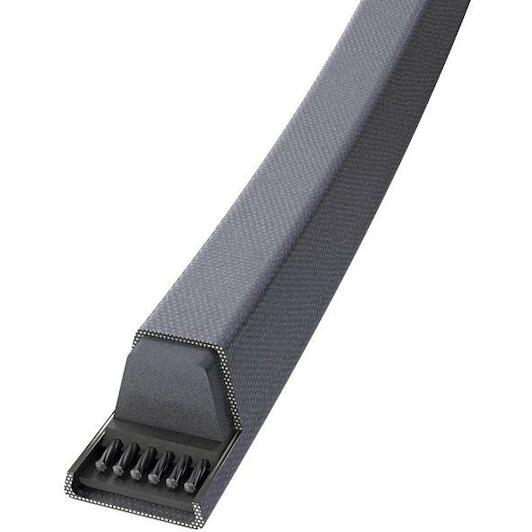

CONTI SPZ1537 CONTI V-belt SPZ 1537

Name: CONTI SPZ1537 CONTI V-belt SPZ 1537
Brand: CONTI
SKU: 05010082
Price: 37.06 EUR
Availability: InStock

Supplier number: CONTI SPZ1537 | EAN 4010858711559

37.06 tax incl.

€30.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with Conti belts

Practical benefits

Perfectly matched sets: Thanks to the L=L tolerance match, you can run multiple belts together without uneven tension or slip.
Low stretch design: The integrated PE tension cord prevents unwanted elongation, ensuring you maintain consistent drive efficiency under load.
Durable wrapped protection: The tough outer fabric protects your drive components from excessive wear, dust ingress, and moderate oil contact.

In a nutshell

The right choise for

With the Conti-V spz 1537 V-belt, you ensure dependable power transmission across industrial machinery, pumps, compressors, and agricultural equipment. Its integrated polyester (PE) tension cord delivers high dimensional stability, preventing unwanted elongation during demanding operations. Thanks to the L=L manufacturing tolerance, you can fit matched sets directly onto multi-groove pulleys without tension variance or slippage. The tough wrapped jacket offers solid protection against dust, wear, and moderate oil exposure, maintaining reliable performance from -55 °C to +70 °C to keep your drive systems running smoothly.

Product information FAQ

€37.06

In stock - tax incl.

Key features according to our expert

Length: 1537
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1537 mm
Inner length (Li): 1499 mm; 59,015 inch
Outer length (La): 1549 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V605
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1537
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1537 mm
Inner length (li): 1499 mm; 59,015 inch
Outer length (la): 1549 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V605
Colour (manufacturer): Black

Brand CONTI
05010082
EAN 4010858711559
Supplier number CONTI SPZ1537

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: This V-belt features an SPZ profile with a top width of 9,7 mm, a height of 8 mm, and a datum length Ld of 1537 mm (outer length La of 1549 mm).
What does the L=L designation mean on Conti belts?: L=L indicates a matched set with identical manufacturing tolerances. You can install multiple belts together in multi-groove drives without measuring or sorting.
What are the operating temperatures and resistance properties?: The belt operates from -55 °C to +70 °C, is dust-protected, conditionally oil-resistant, and antistatic according to ISO 1813.
Which standards and profiles is this V-belt compatible with?: It meets the SPZ profile according to DIN 7753 / ISO 4184 and corresponds to RMA 3V605 and 9N standards for SPZ pulleys.
What material is used for the internal tension cord?: The tensile member is made of polyester (PE), providing high power transmission and minimal elongation under load.
