What does the L=L designation mean?

The L=L marking indicates matched-set precision with tight length tolerances, allowing multiple belts to be run together without mismatch.

What material is used for the tension cord?

The inner tension member is made of polyester (PE) cords, ensuring minimal stretch and steady power transmission.

Which standard profile codes correspond to this belt?

In addition to the SPZ profile, it conforms to the industry standard designations 3V635, 3V, and 9N.

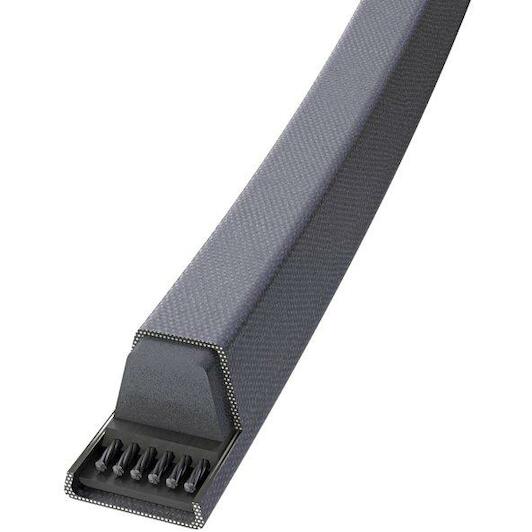

CONTI SPZ1612 CONTI V-belt SPZ 1612

Name: CONTI SPZ1612 CONTI V-belt SPZ 1612
Brand: CONTI
SKU: 05010087
Price: 39.49 EUR
Availability: InStock

Supplier number: CONTI SPZ1612 | EAN 4010858718503

39.49 tax incl.

€32.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with Conti

Practical benefits

Matched set precision performance: Thanks to the L=L manufacturing tolerance, you can run multiple belts together without tension variations across your drive system.
High thermal chemical resistance: The durable rubber compound and fabric jacket protect the belt from premature wear caused by dust, oil, and heat.
Minimal elongation over time: The high-strength polyester tension cord prevents excessive stretching, ensuring your equipment operates efficiently with minimal maintenance needed.

In a nutshell

The right choise for

Keep your industrial machinery, pumps, compressors, and ventilation fans running smoothly with the Conti Conti-V spz 1612 V-belt. Thanks to the L=L matched-set manufacturing tolerance, you can easily install multiple belts alongside each other without tension variations or drive slippage. The high-strength polyester tension cord prevents excessive stretching to maintain optimal power transfer over long operating cycles. Additionally, the durable wrapped jacket provides solid resistance against premature wear caused by oil, dust, and temperature changes. Featuring a top width of 9.7 mm, a height of 8 mm, and a datum length of 1612 mm, this narrow wedge belt delivers dependable performance with minimal maintenance.

Product information FAQ

€39.49

In stock - tax incl.

Key features according to our expert

Length: 1612
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1612 mm
Inner length (Li): 1574 mm; 61,968 inch
Outer length (La): 1624 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V635
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1612
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1612 mm
Inner length (li): 1574 mm; 61,968 inch
Outer length (la): 1624 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V635
Colour (manufacturer): Black

Brand CONTI
05010087
EAN 4010858718503
Supplier number CONTI SPZ1612

Frequently asked questions about this product

Answered by specialists

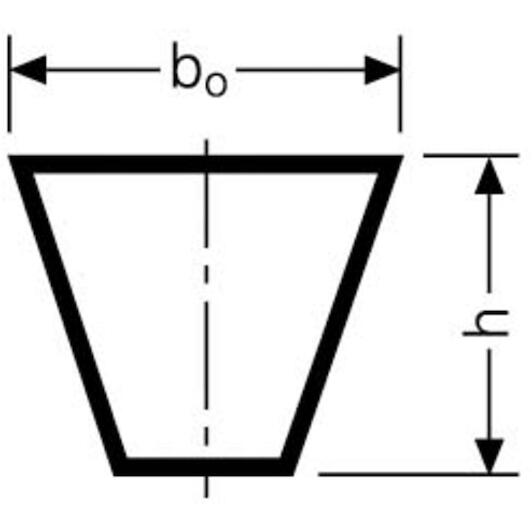

What are the dimensions of this V-belt?: This V-belt has a top width of 9.7 mm, a height of 8 mm, and a datum length (Ld) of 1612 mm.
What does the L=L designation mean?: The L=L marking indicates matched-set precision with tight length tolerances, allowing multiple belts to be run together without mismatch.
What material is used for the tension cord?: The inner tension member is made of polyester (PE) cords, ensuring minimal stretch and steady power transmission.
Which standard profile codes correspond to this belt?: In addition to the SPZ profile, it conforms to the industry standard designations 3V635, 3V, and 9N.
