What are the dimensions of this Conti V-belt?

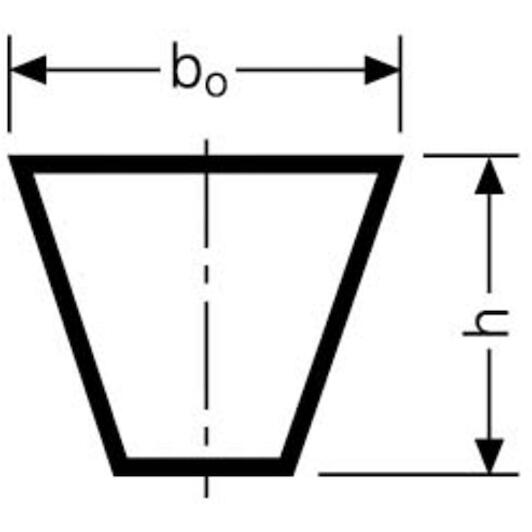

The belt has an SPZ profile with a width of 9,7 mm, a height of 8 mm, a reference length Ld of 2287 mm, and an outer length La of 2299 mm.

What does the L=L designation mean on this belt?

The L=L marking indicates a matched-set tolerance. This allows you to install multiple belts together in a multi-belt drive without manual sorting.

Which standards does this V-belt comply with?

This belt conforms to the SPZ profile and matches the American RMA standard 3V900 (3V 900) as well as the 9N profile.

What material is used for the tension cord?

The tension cord of this Conti belt is made of PE (polyester), providing high tensile strength and minimal stretch during operation.

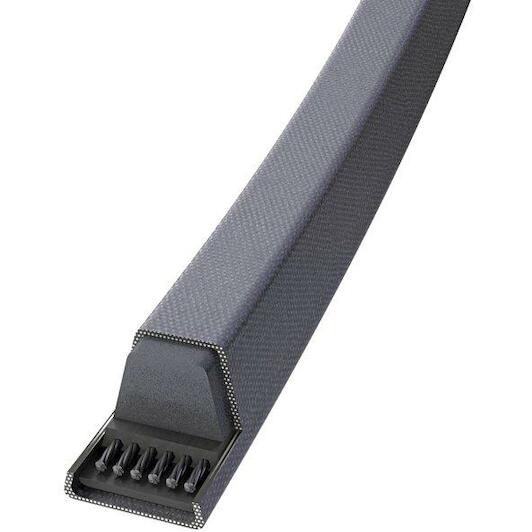

CONTI SPZ2287 CONTI V-belt SPZ 2287 3V 900

Name: CONTI SPZ2287 CONTI V-belt SPZ 2287 3V 900
Brand: CONTI
SKU: 05010115
Price: 53.12 EUR
Availability: InStock

Supplier number: CONTI SPZ2287 | EAN 4010858712303

53.12 tax incl.

€43.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 23/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission for industrial machinery

Practical benefits

Efficient drive with SPZ 2287: You transfer mechanical power smoothly and efficiently thanks to the precise SPZ profile with a 9,7 mm width.
High dimensional length stability: The integrated polyester tension cords prevent stretching, ensuring your machinery runs continuously with minimal maintenance.
Resistant to demanding conditions: You work safely with antistatic properties certified to ISO 1813 and dependable resistance to industrial wear.

In a nutshell

The right choise for

With the Conti V V-belt spz 2287, you ensure dependable and efficient power transmission across your industrial machinery, compressors, fans, and pumps. Worn or slipping drive belts lead to unwanted power loss. Thanks to the precise spz profile with a 9,7 mm width and durable polyester tension cords, this belt maintains high dimensional stability and resists excessive stretching. The L=L tolerance class allows you to install multiple belts in a set without prior matching. This keeps your electric motors and mechanical drive systems running smoothly with minimal maintenance.

Product information FAQ

€53.12

In stock - tax incl.

Key features according to our expert

Length: 2287
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 2287 mm
Inner length (Li): 2249 mm; 88,543 inch
Outer length (La): 2299 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V900
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 2287
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 2287 mm
Inner length (li): 2249 mm; 88,543 inch
Outer length (la): 2299 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V900
Colour (manufacturer): Black

Brand CONTI
05010115
EAN 4010858712303
Supplier number CONTI SPZ2287

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Conti V-belt?: The belt has an SPZ profile with a width of 9,7 mm, a height of 8 mm, a reference length Ld of 2287 mm, and an outer length La of 2299 mm.
What does the L=L designation mean on this belt?: The L=L marking indicates a matched-set tolerance. This allows you to install multiple belts together in a multi-belt drive without manual sorting.
Which standards does this V-belt comply with?: This belt conforms to the SPZ profile and matches the American RMA standard 3V900 (3V 900) as well as the 9N profile.
What material is used for the tension cord?: The tension cord of this Conti belt is made of PE (polyester), providing high tensile strength and minimal stretch during operation.
