What are the dimensions of this V-belt?

This V-belt has a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 912 mm (outer length La 924 mm).

What profile does this Conti V-belt have?

It features an SPZ profile, corresponding to the 3V (RMA 3V359) and 9N standards.

What material is the tension cord made of?

The tension cord of this V-belt is made of polyester (PE).

What is the operating temperature range?

The belt is designed to operate in temperatures ranging from -55 °C to +70 °C.

Is this V-belt antistatic?

Yes, it is electrically conductive in accordance with ISO 1813.

CONTI SPZ912 CONTI V-belt SPZ 912

Name: CONTI SPZ912 CONTI V-belt SPZ 912
Brand: CONTI
SKU: 05010037
Price: 21.67 EUR
Availability: InStock

Supplier number: CONTI SPZ912 | EAN 4010858710941

21.67 tax incl.

€17.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable drive performance by Conti

Practical benefits

Efficient compact power transmission: The narrow SPZ profile fits securely in the pulley, allowing you to transfer torque smoothly and efficiently.
Minimal stretch under load: Built with high-strength PE tension cords, you experience less belt elongation and fewer retensioning interruptions during operation.
Robust and wear resistant: The durable 9.7 mm construction withstands friction, heat, and dust to keep your industrial machinery running consistently.

In a nutshell

The right choise for

With the Conti Conti-V spz 912 V-belt, you ensure smooth, reliable, and slip-free power transmission across your machinery. The compact spz profile, measuring 9.7 mm in width and 8 mm in height, seats securely in the pulley to prevent machine downtime and uneven wear. Engineered with high-strength pe tension cords, it delivers exceptional dimensional stability and minimal stretch under continuous load, reducing the need for frequent retensioning. Ideal for compressors, pumps, and ventilation systems, this antistatic V-belt with a datum length Ld of 912 mm performs consistently in operating temperatures from -55 °C to +70 °C.

Product information FAQ

€21.67

In stock - tax incl.

Key features according to our expert

Length: 912

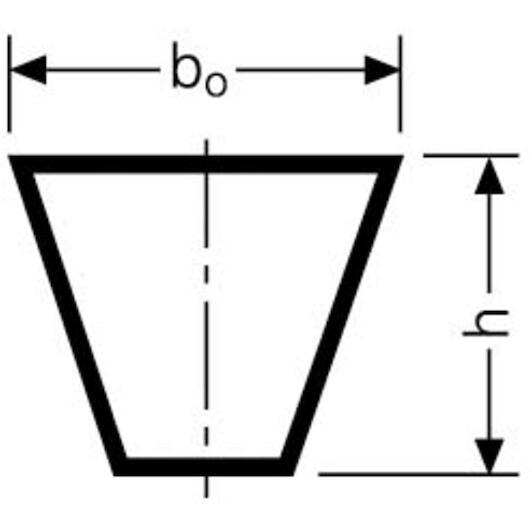

Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 912 mm
Inner length (Li): 874 mm; 34,409 inch
Outer length (La): 924 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V359
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 912
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 912 mm
Inner length (li): 874 mm; 34,409 inch
Outer length (la): 924 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V359
Colour (manufacturer): Black

Brand CONTI
05010037
EAN 4010858710941
Supplier number CONTI SPZ912

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt has a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 912 mm (outer length La 924 mm).
What profile does this Conti V-belt have?: It features an SPZ profile, corresponding to the 3V (RMA 3V359) and 9N standards.
What material is the tension cord made of?: The tension cord of this V-belt is made of polyester (PE).
What is the operating temperature range?: The belt is designed to operate in temperatures ranging from -55 °C to +70 °C.
Is this V-belt antistatic?: Yes, it is electrically conductive in accordance with ISO 1813.
