What are the main dimensions of this timing belt?

This belt features a nominal length of 480 mm, a width of 10 mm, a T2,5 profile, and 192 teeth.

What is the tooth pitch of the T2,5 profile?

The tooth pitch of the T2,5 profile measures exactly 2.5 mm between tooth centers.

What material is this Conti Synchroflex belt made of?

It is manufactured from wear-resistant polyurethane (PU) with high-strength steel tension cords.

What is the operating temperature range for this belt?

This PU timing belt performs reliably in operating temperatures ranging from -30 °C to +80 °C.

Is this timing belt resistant to oils and grease?

Yes, the polyurethane body is resistant to oils, grease, and fuels.

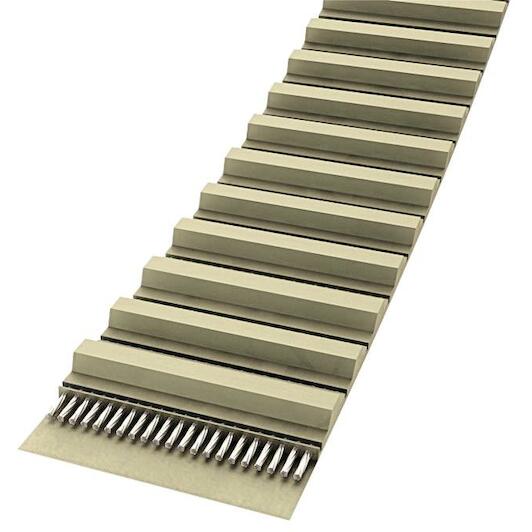

CONTI T2,5 480 10 F 1/5 Conti Synchroflex timing belt - T2.548010

Name: CONTI T2,5 480 10 F 1/5 Conti Synchroflex timing belt - T2.548010
Brand: CONTI
SKU: 05120224
Price: 28.07 EUR
Availability: PreOrder

Supplier number: CONTI T2.548010 | EAN 4051817159883

28.07 tax incl.

€23.20 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

The minimum purchase order quantity for the product is 20.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate drive synchronization with Conti Synchroflex

Practical benefits

Reliable synchronous power delivery: The 2.5 mm pitch and 192 teeth mesh tightly with matching pulleys to prevent slippage during continuous operation.
High resistance to elongation: Wear-resistant polyurethane reinforced with internal cords maintains correct belt tension and dimensional stability under load.
Space saving drive profile: A compact 10 mm width and 480 mm length make it an ideal fit for precision machinery setups.

In a nutshell

The right choise for

With the Conti Synchroflex pu timing belt T2,5 480, you achieve precise and slip-free power transmission for compact machinery and automated production setups. Featuring a fine T2,5 profile with a 2.5 mm pitch and 192 teeth, it meshes tightly with matching pulleys for exact synchronous operation. The combination of wear-resistant polyurethane and high-strength steel tension cords prevents elongation and maintains belt tension under load. Additionally, the durable pu body resists oils, grease, and fuels across a wide temperature range of -30 °C to +80 °C. With a compact width of 10 mm and a length of 480 mm, this belt delivers dependable, maintenance-free performance for demanding precision drive systems.

Product information FAQ

€28.07

tax incl.

Key features according to our expert

Length: 480
Pitch: 2,5 mm
Width: 10 mm
Profile (timing belt): T2,5
Product line: CONTI SYNCHROFLEX
Nominal length: 480 mm
Number of teeth: 192

Product description:

Polyurethane timing belts for the lower and medium power range

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for range under -10 °C and above +50 °C) R Constant length R Low-noise R Wear-resistance R High flexibility R Resistant to oils
Grease and fuel R Conditionally resistant to acid and lye R Raw materials and production are silicone free R Suitable for tropical climates R Aging-resistant R Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 480
Pitch: 2,5 mm
Width: 10 mm
Profile (timing belt): T2,5
Product line: CONTI SYNCHROFLEX
Nominal length: 480 mm
Number of teeth: 192

Brand CONTI
05120224
EAN 4051817159883
Supplier number CONTI T2.548010

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this timing belt?: This belt features a nominal length of 480 mm, a width of 10 mm, a T2,5 profile, and 192 teeth.
What is the tooth pitch of the T2,5 profile?: The tooth pitch of the T2,5 profile measures exactly 2.5 mm between tooth centers.
What material is this Conti Synchroflex belt made of?: It is manufactured from wear-resistant polyurethane (PU) with high-strength steel tension cords.
What is the operating temperature range for this belt?: This PU timing belt performs reliably in operating temperatures ranging from -30 °C to +80 °C.
Is this timing belt resistant to oils and grease?: Yes, the polyurethane body is resistant to oils, grease, and fuels.
