What are the dimensions of this V-belt?

This V-belt features an XPA profile with a width of 12.7 mm, a height of 9 mm, and a datum length Ld of 1140 mm.

Which profile does this belt have?

It features a raw-edge cogged XPA profile in accordance with DIN 7753.

What material is used for the tensile member?

The tensile member is made of polyester (PE) to ensure minimal stretch and reliable power transmission.

What is the benefit of the cogged design?

The molded teeth provide high flexibility, lower operating temperatures, and smooth, quiet running.

What is the operating temperature range for this belt?

Thanks to its EPDM construction, it is temperature resistant from -40 °C up to +130 °C.

CONTI XPA1140P CONTI V FO PIONEER belt XPA 1140 Ld Pio

Name: CONTI XPA1140P CONTI V FO PIONEER belt XPA 1140 Ld Pio
Brand: CONTI
SKU: 02679286
Price: 43.4 EUR
Availability: InStock

Supplier number: CONTI XPA1140P | EAN 4010858971779

43.40 tax incl.

€35.87 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

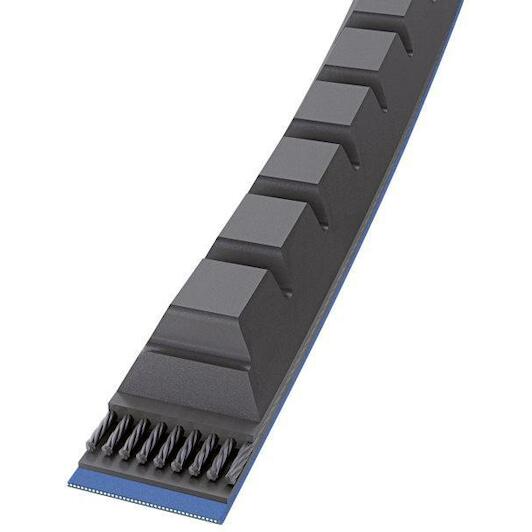

Efficient power transmission with the Conti belt

Practical benefits

High power transfer capacity: You achieve dependable drive performance under demanding loads thanks to precision-molded teeth and optimized belt flanks.
Smooth and flexible operation: The molded teeth deliver outstanding bending flexibility across pulleys, giving you quiet running and minimal vibration.
Resilient in tough environments: Engineered for harsh conditions, the compound withstands temperatures from -40 °C to +130 °C and resists dust intrusion.

In a nutshell

The right choise for

With the Conti V-belt, you deliver dependable power transmission to demanding industrial machinery. Featuring an xpa cogged profile with a 12.7 mm width and an 1140 mm datum length, this belt ensures smooth bending flexibility and quiet running on standard spa pulleys. Its strong pe tension cord and operating range from -40 °C to +130 °C eliminate slippage and resist premature wear across heavy-duty compressor, blower, and machinery drives.

Product information FAQ

€43.40

In stock - tax incl.

Key features according to our expert

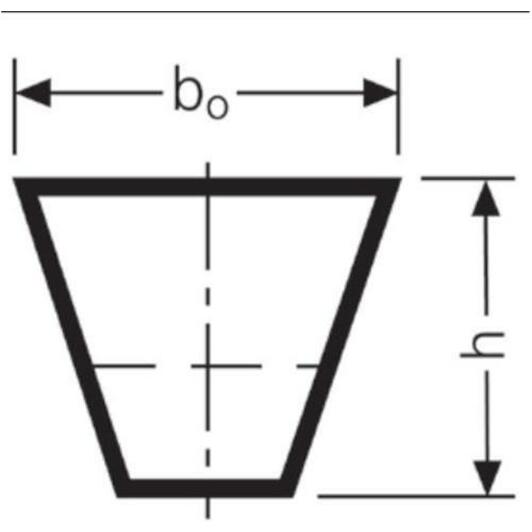

Length: 1140
Width: 12,7 mm
Height: 9 mm
Profile (V-belt): XPA
Reference length Ld: 1140 mm
Inner length (Li): 1100 mm; 43,307 inch
Outer length (La): 1197 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1140
Width: 12,7 mm
Height: 9 mm
Profile (v-belt): XPA
Reference length ld: 1140 mm
Inner length (li): 1100 mm; 43,307 inch
Outer length (la): 1197 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Colour (manufacturer): Black/Blue

Brand CONTI
02679286
EAN 4010858971779
Supplier number CONTI XPA1140P

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt features an XPA profile with a width of 12.7 mm, a height of 9 mm, and a datum length Ld of 1140 mm.
Which profile does this belt have?: It features a raw-edge cogged XPA profile in accordance with DIN 7753.
What material is used for the tensile member?: The tensile member is made of polyester (PE) to ensure minimal stretch and reliable power transmission.
What is the benefit of the cogged design?: The molded teeth provide high flexibility, lower operating temperatures, and smooth, quiet running.
What is the operating temperature range for this belt?: Thanks to its EPDM construction, it is temperature resistant from -40 °C up to +130 °C.
