What are the dimensions of this Conti V-belt?

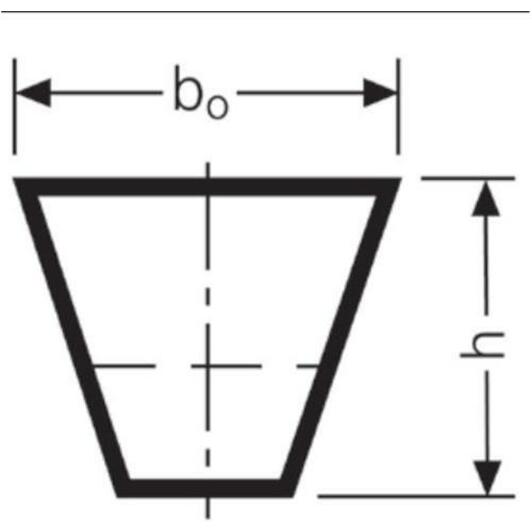

This V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1030 mm.

What are the internal and external lengths of this belt?

The outer length La is 1042 mm, the reference datum length Ld is 1030 mm, and the inside length Li is 39.055 inches.

What does the 3VX 407 marking mean?

3VX 407 is the American RMA standard designation equivalent to the European XPZ 1030 profile.

What material is used for the tension cord?

The internal tensile cord of this V-belt is made from durable polyester (PE).

CONTI XPZ1030P CONTI V FO PIONEER belt XPZ 1030 Ld Pio 3VX 407

Name: CONTI XPZ1030P CONTI V FO PIONEER belt XPZ 1030 Ld Pio 3VX 407
Brand: CONTI
SKU: 02679040
Price: 26.93 EUR
Availability: InStock

Supplier number: CONTI XPZ1030P | EAN 4010858973407

26.93 tax incl.

€22.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with XPZ 1030

Practical benefits

High drive efficiency under load: The cogged profile ensures you transfer high torque smoothly while reducing energy loss in demanding machinery.
Minimal elongation in operation: Strong polyester cords ensure you maintain proper belt tension over time without frequent retensioning adjustments.
Built for demanding conditions: You rely on a durable, wear-resistant construction designed to withstand high rotational speeds and temperature variations.

In a nutshell

The right choise for

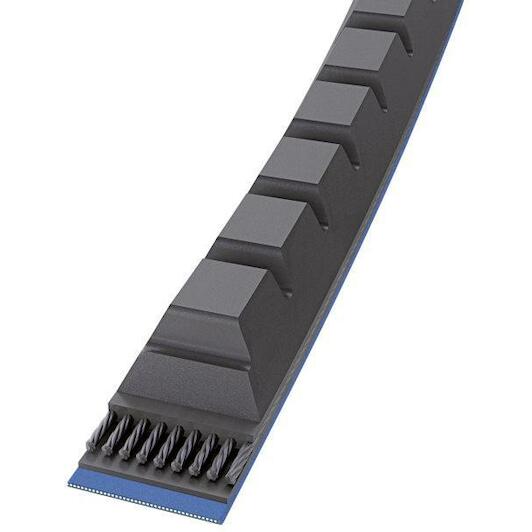

With the Conti Conti-V fo Pioneer xpz 1030 V-belt, you ensure smooth and reliable power transmission across demanding industrial machinery drive systems. Its cogged profile transfers high torque with minimal energy loss while significantly reducing slippage on compact pulleys. Built with high-strength polyester tension cords, the belt delivers outstanding dimensional stability and minimal elongation, keeping tension steady without frequent maintenance adjustments. Engineered to handle high rotational speeds and fluctuating temperatures, this durable V-belt features an xpz profile with a 9.7 mm width and a 1030 mm datum length, providing dependable performance in heavy-duty applications.

Product information FAQ

€26.93

In stock - tax incl.

Key features according to our expert

Length: 1030
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1030 mm
Inner length (Li): 992 mm; 39,055 inch
Outer length (La): 1042 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX406
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1030
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1030 mm
Inner length (li): 992 mm; 39,055 inch
Outer length (la): 1042 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX406
Colour (manufacturer): Black/Blue

Brand CONTI
02679040
EAN 4010858973407
Supplier number CONTI XPZ1030P

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Conti V-belt?: This V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1030 mm.
What are the internal and external lengths of this belt?: The outer length La is 1042 mm, the reference datum length Ld is 1030 mm, and the inside length Li is 39.055 inches.
What does the 3VX 407 marking mean?: 3VX 407 is the American RMA standard designation equivalent to the European XPZ 1030 profile.
What material is used for the tension cord?: The internal tensile cord of this V-belt is made from durable polyester (PE).
