What are the dimensions of this V-belt?

This V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length (Ld) of 1202 mm. The outer length (La) is 1214 mm and the inner length (Li) is 1164 mm.

Which pulleys are compatible with this profile?

This XPZ profile belt fits standard SPZ and XPZ pulleys conforming to DIN 7753 and ISO 4184.

What is the operating temperature range for this belt?

Thanks to its EPDM rubber compound, this belt withstands temperatures from -40 °C to +130 °C.

What does the RMA 3VX473 designation indicate?

This is the US RMA standard code corresponding to this profile and belt length (3VX profile).

Is this V-belt antistatic and oil-resistant?

Yes, it is electrically conductive according to ISO 1813 and conditionally resistant to oil.

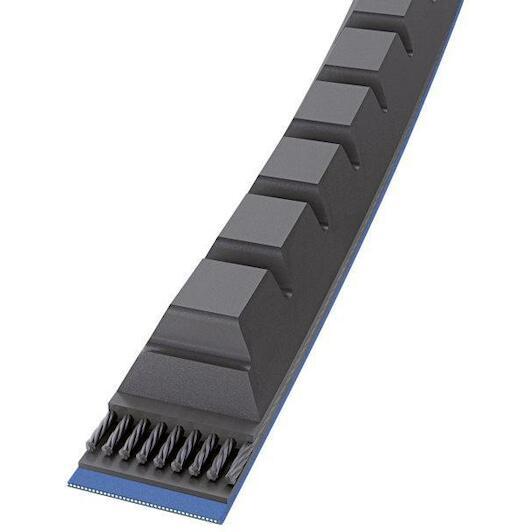

CONTI XPZ1202P CONTI V FO PIONEER belt XPZ 1202 Ld Pio 3VX 475

Name: CONTI XPZ1202P CONTI V FO PIONEER belt XPZ 1202 Ld Pio 3VX 475
Brand: CONTI
SKU: 02679070
Price: 30.79 EUR
Availability: PreOrder

Supplier number: CONTI XPZ1202P | EAN 4010858973551

30.79 tax incl.

€25.45 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/11/2026

Ordered before 20:00 - delivered as of 03/11/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission for drives

Practical benefits

Smooth and efficient operation: You achieve steady power transfer and reduced vibration across drive systems thanks to the precision raw-edge cogged profile.
Exceptional thermal resistance: You maintain continuous performance in demanding operational environments with a temperature tolerance ranging from -40 °C to +130 °C.
Long-lasting maintenance-free service: The wear-resistant rubber compound and reinforced polyester cord ensure you minimize machine downtime and avoid frequent servicing.

In a nutshell

The right choise for

With the Conti Conti-V fo Pioneer xpz 1202 Ld V-belt, you ensure smooth and powerful drive performance across demanding machinery. Featuring an xpz profile with a 9.7 mm width and a datum length of 1202 mm, this raw-edge cogged belt prevents slippage during high-torque power transfer. The wear-resistant epdm rubber compound and reinforced polyester tensile cords provide exceptional dimensional stability, eliminating the hassle of frequent retensioning. Built to withstand extreme operating temperatures from -40 °C to +130 °C, it delivers reliable, low-maintenance operation for industrial pumps, compressors, and ventilation drives.

Product information FAQ

€30.79

tax incl.

Key features according to our expert

Length: 1202
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1202 mm
Inner length (Li): 1164 mm; 45,826 inch
Outer length (La): 1214 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX473
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1202
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1202 mm
Inner length (li): 1164 mm; 45,826 inch
Outer length (la): 1214 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX473
Colour (manufacturer): Black/Blue

Brand CONTI
02679070
EAN 4010858973551
Supplier number CONTI XPZ1202P

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length (Ld) of 1202 mm. The outer length (La) is 1214 mm and the inner length (Li) is 1164 mm.
Which pulleys are compatible with this profile?: This XPZ profile belt fits standard SPZ and XPZ pulleys conforming to DIN 7753 and ISO 4184.
What is the operating temperature range for this belt?: Thanks to its EPDM rubber compound, this belt withstands temperatures from -40 °C to +130 °C.
What does the RMA 3VX473 designation indicate?: This is the US RMA standard code corresponding to this profile and belt length (3VX profile).
Is this V-belt antistatic and oil-resistant?: Yes, it is electrically conductive according to ISO 1813 and conditionally resistant to oil.
