What profile and dimensions does this V-belt have?

It features an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1212 mm.

What are the inside and outside lengths of this belt?

The outside length La is 1224 mm and the inside length Li is 46.22 inches.

Which US RMA standard does this belt correspond to?

This V-belt corresponds to the RMA code 3VX477 (also designated as 3VX 479).

What material is used for the tension cord?

The internal tensile member of this Conti belt is made of polyester (PE).

Which product line does this V-belt belong to?

This model belongs to the Conti V FO Pioneer / Conti-VX Advance high-performance series.

CONTI XPZ1212P CONTI V FO PIONEER belt XPZ 1212 Ld Pio 3VX 479

Name: CONTI XPZ1212P CONTI V FO PIONEER belt XPZ 1212 Ld Pio 3VX 479
Brand: CONTI
SKU: 02679071
Price: 30.79 EUR
Availability: InStock

Supplier number: CONTI XPZ1212P | EAN 4010858973568

30.79 tax incl.

€25.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

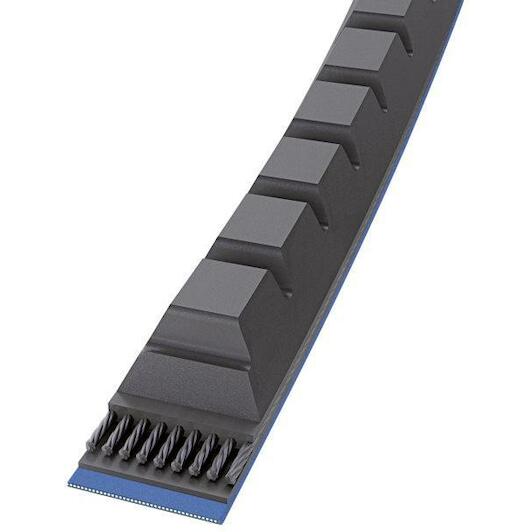

Efficient power transmission with Conti belt

Practical benefits

Reliable high power transfer: You transfer heavy loads efficiently and smoothly thanks to the cogged raw-edge profile and strong cord.
Suitable for small pulleys: High internal tooth flexibility enables you to operate drives smoothly around tight and compact pulley diameters.
Built for demanding use: The durable construction maintains consistent tension and extends operating service life under intensive industrial workloads.

In a nutshell

The right choise for

Transfer heavy mechanical loads smoothly and without slipping using the Conti V-belt from the Conti V fo Pioneer series. Featuring an xpz profile with a 9.7 mm width, 8 mm height, and 1212 mm datum length Ld, this belt is built with a durable polyester tension cord. The cogged raw-edge design provides high flexibility around small pulley diameters, ensuring optimal power transfer. It helps you prevent costly downtime and maintain reliable, continuous drive operation across industrial equipment, electric motors, and ventilation systems.

Product information FAQ

€30.79

In stock - tax incl.

Key features according to our expert

Length: 1212

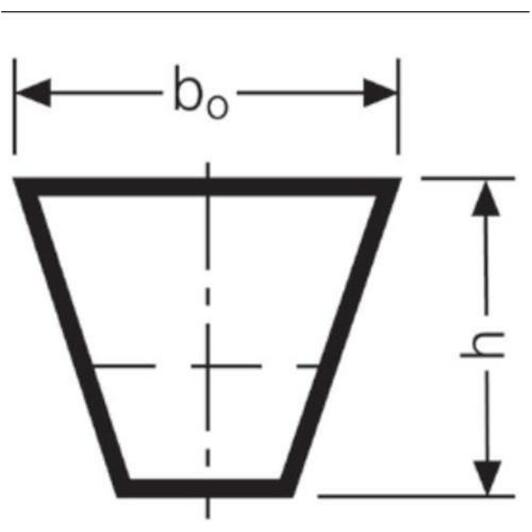

Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1212 mm
Inner length (Li): 1174 mm; 46,22 inch
Outer length (La): 1224 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX477
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1212
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1212 mm
Inner length (li): 1174 mm; 46,22 inch
Outer length (la): 1224 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX477
Colour (manufacturer): Black/Blue

Brand CONTI
02679071
EAN 4010858973568
Supplier number CONTI XPZ1212P

Frequently asked questions about this product

Answered by specialists

What profile and dimensions does this V-belt have?: It features an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1212 mm.
What are the inside and outside lengths of this belt?: The outside length La is 1224 mm and the inside length Li is 46.22 inches.
Which US RMA standard does this belt correspond to?: This V-belt corresponds to the RMA code 3VX477 (also designated as 3VX 479).
What material is used for the tension cord?: The internal tensile member of this Conti belt is made of polyester (PE).
Which product line does this V-belt belong to?: This model belongs to the Conti V FO Pioneer / Conti-VX Advance high-performance series.
