What are the exact dimensions of this V-belt?

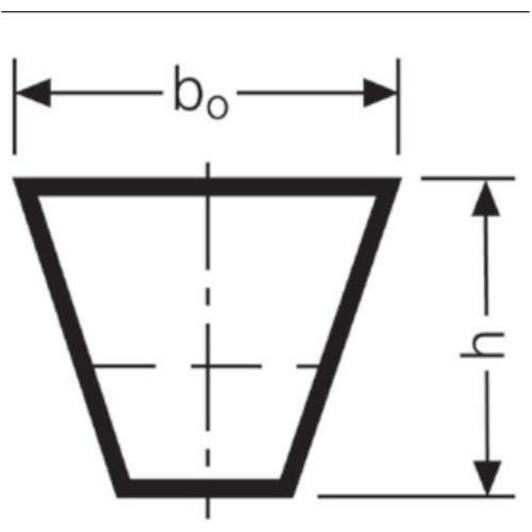

The belt has a width of 9.7 mm, a height of 8 mm, a reference length Ld of 1270 mm, and an outer length La of 1282 mm.

Which profile and RMA standard does this belt match?

This V-belt has an XPZ profile and matches the RMA specification 3VX500.

What material is used for the tension cord?

The internal tensile cord is made of PE (polyester).

Which pulleys are compatible with this V-belt?

This XPZ belt is designed for use with standard SPZ and XPZ pulleys in heavy-duty drive systems.

CONTI XPZ1270P CONTI V FO PIONEER belt XPZ 1270 Ld Pio 3VX 500

Name: CONTI XPZ1270P CONTI V FO PIONEER belt XPZ 1270 Ld Pio 3VX 500
Brand: CONTI
SKU: 02679075
Price: 32.86 EUR
Availability: PreOrder

Supplier number: CONTI XPZ1270P | EAN 4010858973605

32.86 tax incl.

€27.16 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/11/2026

Ordered before 20:00 - delivered as of 02/11/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable drive performance by Conti

Practical benefits

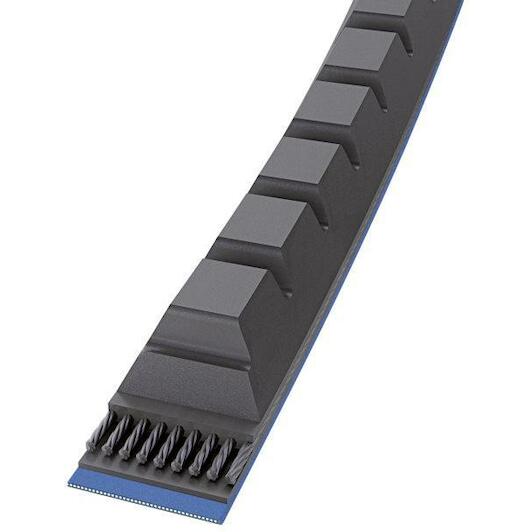

Maximum grip and flexibility: The raw-edge XPZ cogged profile wraps effortlessly around small pulleys to deliver high power transmission with minimal slip.
High resistance to extremes: You achieve uninterrupted operation in harsh conditions thanks to excellent resistance to temperature changes, dust, and oil.
Low stretch dimension stability: The integrated polyester cords prevent unwanted elongation, ensuring smooth and quiet power delivery without frequent re-tensioning.

In a nutshell

The right choise for

With the Conti xpz 1270 V-belt, you ensure dependable and powerful drive transmission for heavy-duty industrial machinery. Its raw-edge, cogged xpz profile wraps smoothly around small pulleys, delivering high torque with minimal slip. The durable polyester tension cord prevents unwanted stretching, keeping pumps, fans, and compressors running quietly, smoothly, and without vibration. Built to withstand extreme temperatures and oil exposure, this belt delivers consistent performance in demanding operating conditions. It allows you to replace worn drive belts quickly and keep machine downtime and routine maintenance to an absolute minimum.

Product information FAQ

€32.86

tax incl.

Key features according to our expert

Length: 1270
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1270 mm
Inner length Li: 1232 mm; 48,503 inch
Outer length La: 1282 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX500
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1270
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1270 mm
Inner length li: 1232 mm; 48,503 inch
Outer length la: 1282 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX500
Colour (manufacturer): Black/Blue

Brand CONTI
02679075
EAN 4010858973605
Supplier number CONTI XPZ1270P

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt has a width of 9.7 mm, a height of 8 mm, a reference length Ld of 1270 mm, and an outer length La of 1282 mm.
Which profile and RMA standard does this belt match?: This V-belt has an XPZ profile and matches the RMA specification 3VX500.
What material is used for the tension cord?: The internal tensile cord is made of PE (polyester).
Which pulleys are compatible with this V-belt?: This XPZ belt is designed for use with standard SPZ and XPZ pulleys in heavy-duty drive systems.
