What are the exact dimensions of this V-belt?

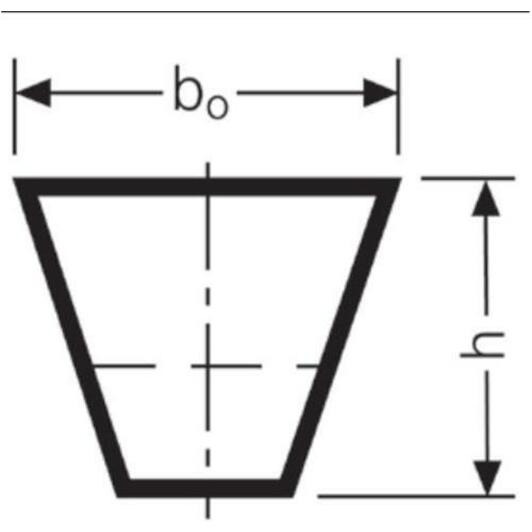

This belt has a top width of 9.7 mm, a height of 8 mm, a datum length (Ld) of 1362 mm, and an outside length (La) of 1374 mm.

What belt profile does this drive belt use?

It features an XPZ cogged raw-edge narrow V-belt profile in accordance with DIN 7753 and ISO 4184.

Which RMA size standard does this belt correspond to?

This XPZ 1362 belt corresponds to the US RMA standard size 3VX 538 (or 3VX536).

What material is used for the tensile cord?

The internal tensile member is made of polyester (PE) to ensure high dimensional stability and reliable power transfer.

What applications is this raw-edge cogged belt designed for?

You use it in heavy-duty industrial machinery drives operating at high speeds and demanding power requirements.

CONTI XPZ1362P CONTI V FO PIONEER belt XPZ 1362 Ld Pio 3VX 538

Name: CONTI XPZ1362P CONTI V FO PIONEER belt XPZ 1362 Ld Pio 3VX 538
Brand: CONTI
SKU: 02679086
Price: 36.7 EUR
Availability: InStock

Supplier number: CONTI XPZ1362P | EAN 4010858973674

36.70 tax incl.

€30.33 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable transmission with the XPZ 1362

Practical benefits

Efficient heavy-duty power transmission: You achieve dependable power delivery across demanding machinery thanks to the precision-formed XPZ profile with a 1362 mm datum length.
Superior thermal endurance: The tough EPDM rubber compound resists temperatures up to 130 °C, ensuring your drive operates smoothly in harsh environments.
Minimal stretch under tension: Designed with high-strength polyester cords, you benefit from consistent tension retention and reduced re-tensioning maintenance.

In a nutshell

The right choise for

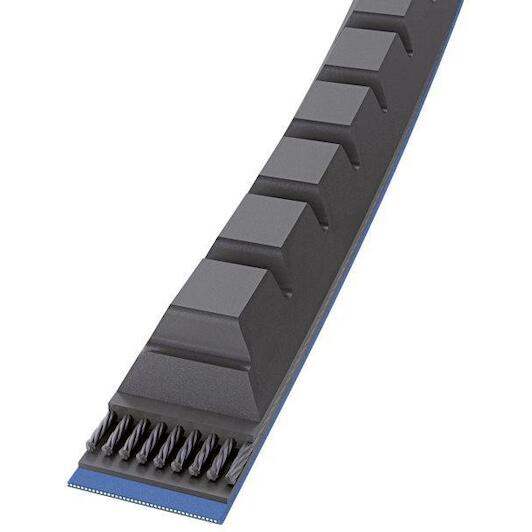

Restore dependable mechanical power transmission with the Conti xpz 1362 V-belt from the Conti V fo Pioneer and Conti-VX Advance lines. Featuring a 9.7 mm top width and a 1362 mm datum length, this raw-edge cogged narrow belt prevents slippage across heavy-duty industrial machinery, compressors, and agricultural equipment. The tough epdm rubber compound withstands operating temperatures up to 130 °C, while internal polyester cords minimize stretching. This keeps your drive operating smoothly with reduced re-tensioning maintenance.

Product information FAQ

€36.70

In stock - tax incl.

Key features according to our expert

Length: 1362
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1362 mm
Inner length (Li): 1324 mm; 52,125 inch
Outer length (La): 1374 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX536
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1362
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1362 mm
Inner length (li): 1324 mm; 52,125 inch
Outer length (la): 1374 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX536
Colour (manufacturer): Black/Blue

Brand CONTI
02679086
EAN 4010858973674
Supplier number CONTI XPZ1362P

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: This belt has a top width of 9.7 mm, a height of 8 mm, a datum length (Ld) of 1362 mm, and an outside length (La) of 1374 mm.
What belt profile does this drive belt use?: It features an XPZ cogged raw-edge narrow V-belt profile in accordance with DIN 7753 and ISO 4184.
Which RMA size standard does this belt correspond to?: This XPZ 1362 belt corresponds to the US RMA standard size 3VX 538 (or 3VX536).
What material is used for the tensile cord?: The internal tensile member is made of polyester (PE) to ensure high dimensional stability and reliable power transfer.
What applications is this raw-edge cogged belt designed for?: You use it in heavy-duty industrial machinery drives operating at high speeds and demanding power requirements.
