What are the dimensions and profile of this V-belt?

It features an XPZ (3VX835) profile with a 9.7 mm width, 8 mm height, 2120 mm datum length Ld, and 2132 mm outer length La.

What is the operating temperature range for this belt?

The Conti V FO Pioneer belt is designed to operate in temperatures ranging from -40 °C to +130 °C.

What material is the tension member made of?

The cord is made of high-strength polyester (PE) for reliable, heavy-duty power transmission.

Can multiple belts be used together in a matched set?

Yes, thanks to the precision L=L matched-set manufacturing, multiple belts can run together in multi-groove pulleys without extra matching.

Is this belt resistant to dust and oil?

Yes, it is dust-proof, conditionally resistant to oil, and electrically conductive in accordance with ISO 1813.

CONTI XPZ2120P CONTI V FO PIONEER belt XPZ 2120 Ld Pio 3VX 836

Name: CONTI XPZ2120P CONTI V FO PIONEER belt XPZ 2120 Ld Pio 3VX 836
Brand: CONTI
SKU: 02679164
Price: 54.9 EUR
Availability: InStock

Supplier number: CONTI XPZ2120P | EAN 4010858979409

54.90 tax incl.

€45.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Dependable high power machine transmission

Practical benefits

Efficient continuous power delivery: The raw-edge molded teeth and XPZ profile let you drive heavy machinery with minimal slippage.
Exceptional wide temperature range: You run drives reliably in demanding conditions from -40 °C up to +130 °C without material fatigue.
High stability polyester cord: The integrated PE tension member resists elongation so you benefit from consistent tension and smooth running.

In a nutshell

The right choise for

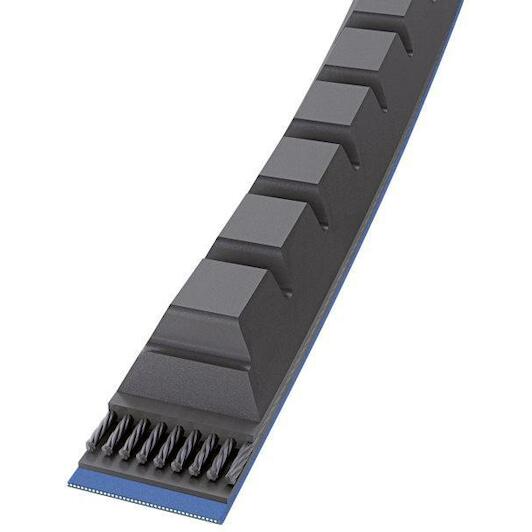

With the Conti Conti-V fo Pioneer xpz 2120 V-belt, you ensure powerful, efficient drive transmission across industrial machinery, pumps, fans, and compressors. Its raw-edge molded cogged design with a 9.7 mm width and 8 mm height runs smoothly on small pulley diameters, preventing slip and power loss. The high-strength pe tension cord resists stretching, delivering consistent tension and low-maintenance operation. Featuring a 2120 mm datum length (La 2132 mm), a wide temperature tolerance from -40 °C to +130 °C, iso 1813 antistatic compliance, and dust resistance, it keeps your production drives running dependably.

Product information FAQ

€54.90

In stock - tax incl.

Key features according to our expert

Length: 2120

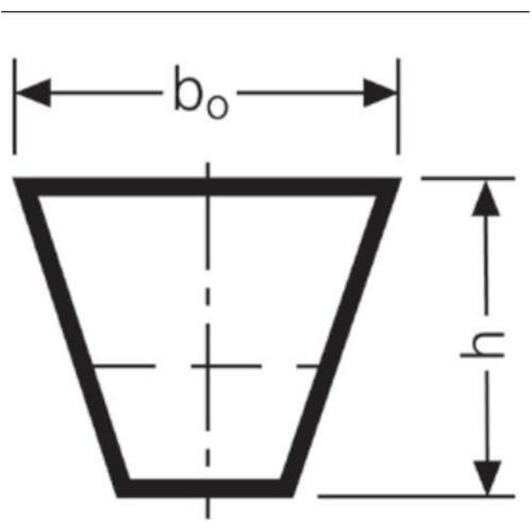

Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 2120 mm
Inner length (Li): 2082 mm; 81,968 inch
Outer length (La): 2132 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX835
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 2120
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 2120 mm
Inner length (li): 2082 mm; 81,968 inch
Outer length (la): 2132 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX835
Colour (manufacturer): Black/Blue

Brand CONTI
02679164
EAN 4010858979409
Supplier number CONTI XPZ2120P

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: It features an XPZ (3VX835) profile with a 9.7 mm width, 8 mm height, 2120 mm datum length Ld, and 2132 mm outer length La.
What is the operating temperature range for this belt?: The Conti V FO Pioneer belt is designed to operate in temperatures ranging from -40 °C to +130 °C.
What material is the tension member made of?: The cord is made of high-strength polyester (PE) for reliable, heavy-duty power transmission.
Can multiple belts be used together in a matched set?: Yes, thanks to the precision L=L matched-set manufacturing, multiple belts can run together in multi-groove pulleys without extra matching.
Is this belt resistant to dust and oil?: Yes, it is dust-proof, conditionally resistant to oil, and electrically conductive in accordance with ISO 1813.
