What are the dimensions and profile of this V-belt?

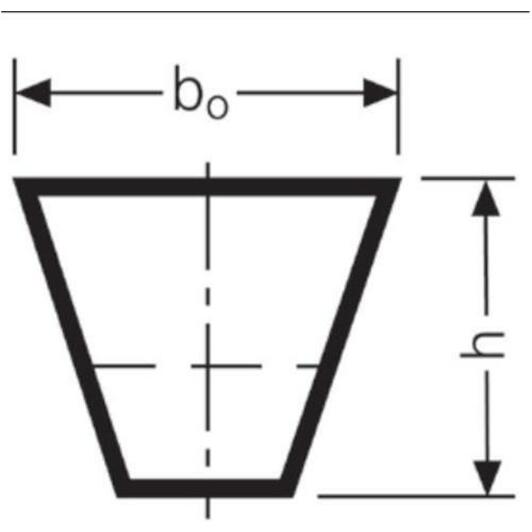

This narrow V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 630 mm.

What are the inside and outside lengths of this belt?

The outside length La is 642 mm and the inside length Li is 23.307 inches.

What cord material is used in this belt?

This belt features a PE (polyester) tension cord designed for reliable power transmission.

Which standards does this V-belt comply with?

Besides the DIN/ISO XPZ 630 standard, it matches the RMA designation 3VX248 (3VX 250).

What is a raw-edge cogged XPZ V-belt used for?

It is suitable for compact, heavy-duty industrial drives operating with small pulley diameters.

CONTI XPZ630P CONTI V FO PIONEER belt XPZ 630 Ld Pio 3VX 250

Name: CONTI XPZ630P CONTI V FO PIONEER belt XPZ 630 Ld Pio 3VX 250
Brand: CONTI
SKU: 02678975
Price: 21.05 EUR
Availability: InStock

Supplier number: CONTI XPZ630P | EAN 4010858979560

21.05 tax incl.

€17.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission with XPZ 630

Practical benefits

High power transmission efficiency: The cogged profile and EPDM rubber deliver exceptional grip, maximizing power transfer across your demanding drive systems.
Exceptional resistance to heat: You maintain continuous operation under harsh thermal conditions thanks to temperature resistance up to 130 °C.
Low stretch and wear: Built with a durable PE tension cord, the belt resists elongation to give you smooth, maintenance-free performance.

In a nutshell

The right choise for

With the Conti xpz 630 V-belt, you ensure dependable and efficient power transmission across heavy-duty industrial drive systems. Its cogged epdm construction provides exceptional grip on compact pulley diameters, eliminating slippage even under tough dynamic loads. Reinforced with a durable pe tension cord, this narrow V-belt resists elongation to deliver smooth, maintenance-free operation. Built to withstand extreme heat up to 130 °C, it keeps your pumps, compressors, and ventilation drives running smoothly without unwanted downtime.

Product information FAQ

€21.05

In stock - tax incl.

Key features according to our expert

Length: 630
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 630 mm
Inner length (Li): 592 mm; 23,307 inch
Outer length (La): 642 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX248
Colour (manufacturer): Black/Blue

Product description:

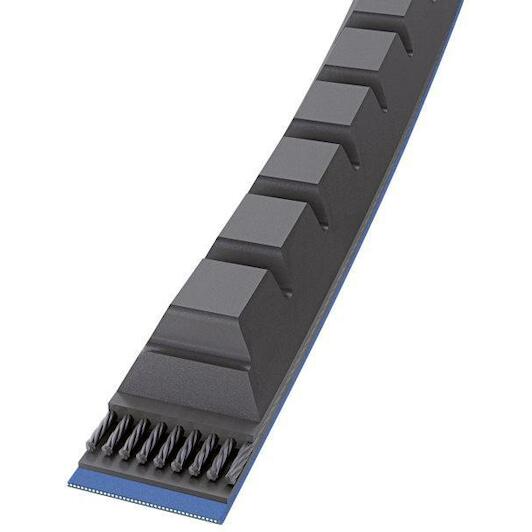

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 630
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 630 mm
Inner length (li): 592 mm; 23,307 inch
Outer length (la): 642 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX248
Colour (manufacturer): Black/Blue

Brand CONTI
02678975
EAN 4010858979560
Supplier number CONTI XPZ630P

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: This narrow V-belt has an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 630 mm.
What are the inside and outside lengths of this belt?: The outside length La is 642 mm and the inside length Li is 23.307 inches.
What cord material is used in this belt?: This belt features a PE (polyester) tension cord designed for reliable power transmission.
Which standards does this V-belt comply with?: Besides the DIN/ISO XPZ 630 standard, it matches the RMA designation 3VX248 (3VX 250).
What is a raw-edge cogged XPZ V-belt used for?: It is suitable for compact, heavy-duty industrial drives operating with small pulley diameters.
