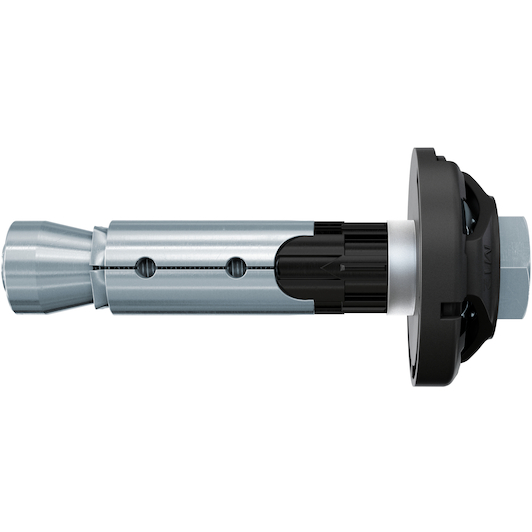

FISCHER 554925 shear anchor FH II 15/80 EN SCD

Product description

The moment-controlled shear anchor for maximum safety.

• Perfect form closure of the anchor in ribbed or hollow-core slab floors
• With extra-large washer for almost all shoring feet

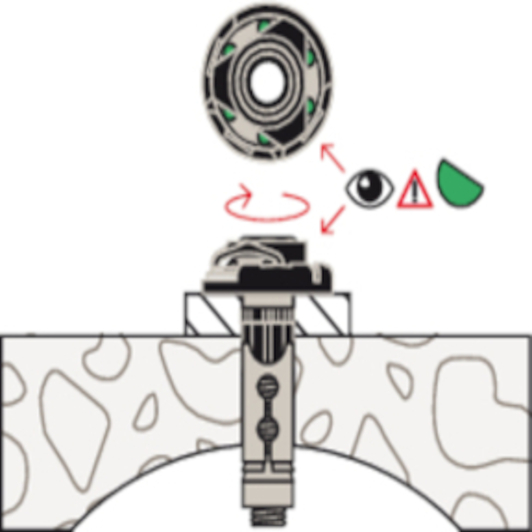

• Visual check after assembly by green signal element
• Can be installed with an impact spanner and does not need to be checked with a torque wrench
• The torque-controlled washer guarantees correct installation torque for easy and safe assembly
• The mechanical and visual check of the FH II NL SCD allows installation without a torque spanner.

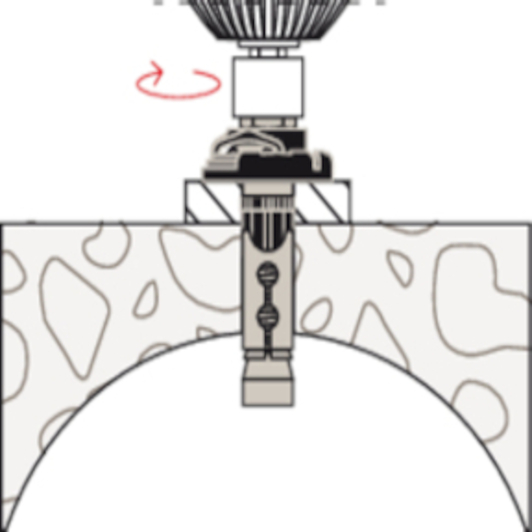

• The use of an impact spanner allows quick and user-friendly mounting.

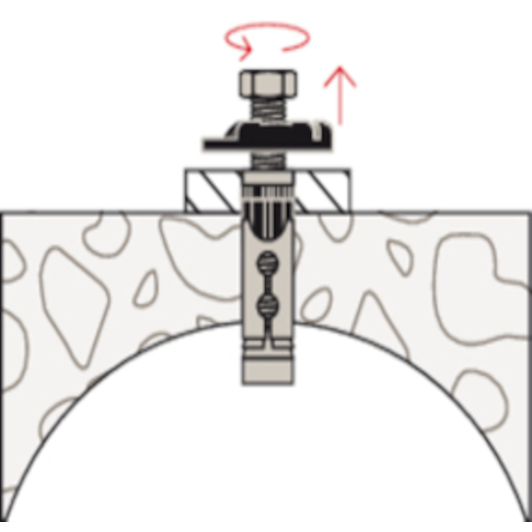

• Both assembly and disassembly of the FH II NL SCD can be carried out with one cap size.

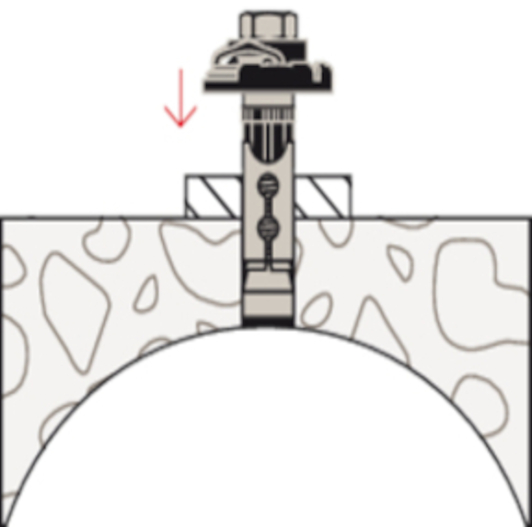

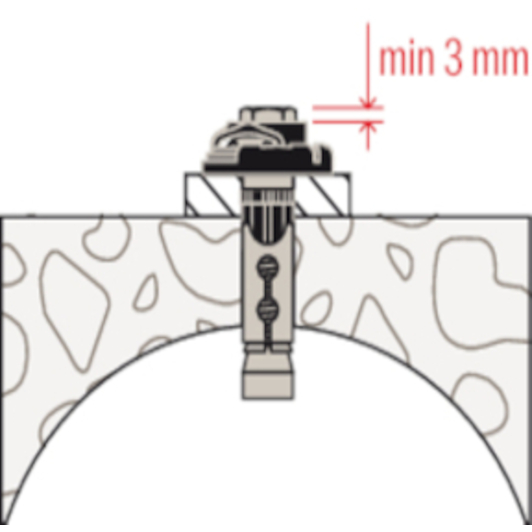

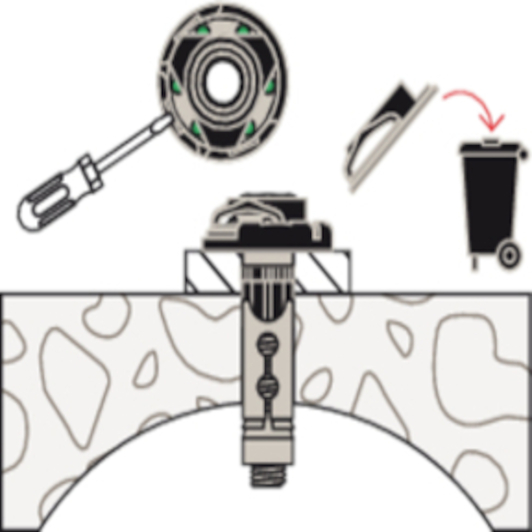

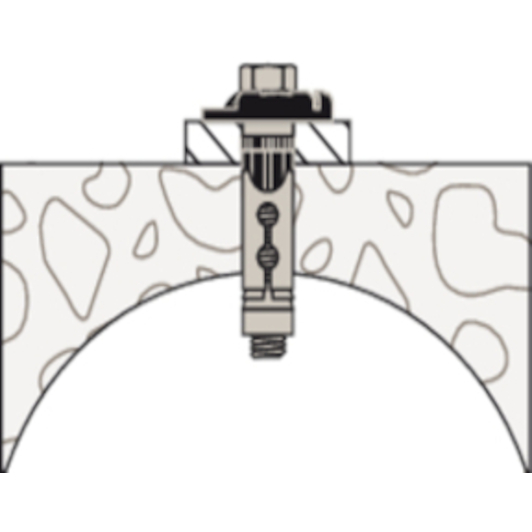

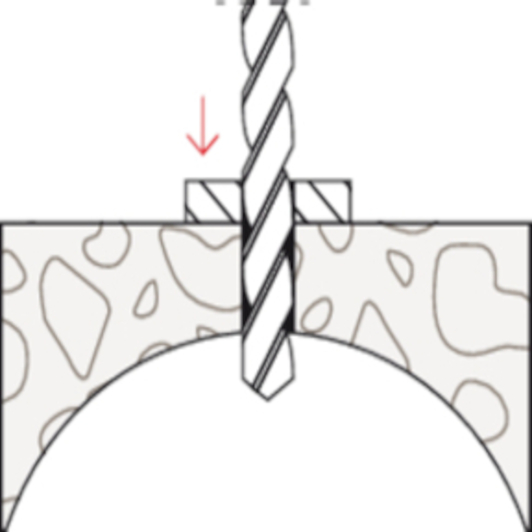

The fischer cantilever anchor FH II NL SCD has been specially developed for fixing braces on hollow-core slabs and ribbed floors. Bracing on concrete walls requires secure anchoring. When mounted, the cone is pulled into the spreader sleeve, which then clamps against the borehole wall. The black crumple zone prevents the Bracing Anchor from rotating along and absorbs the tightening slip. The black plastic ring prevents the anchor from being tightened beyond the maximum torque. The green signal element becomes visible as soon as the correct torque is achieved. This visual check therefore indicates that the anchor has been correctly assembled and provides security and safety on the construction site. After dismantling, no protruding parts remain in the borehole, reducing the risk of accidents.

Applications

• Braces

Building materials

Suitable for:

• Ductile slabs C40/50
• Ribbed concrete slabs C40/50
• Solid concrete >= C20/25
