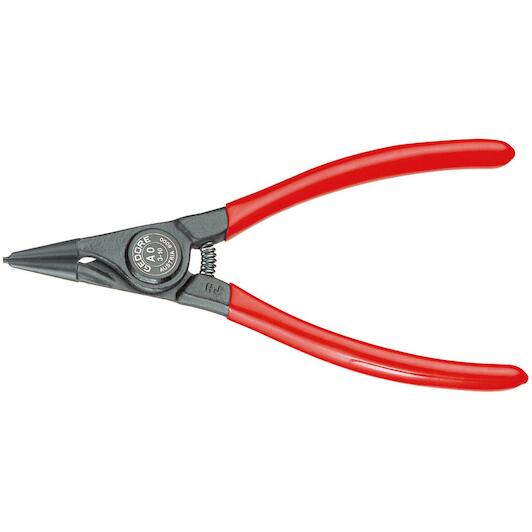

Product description
- For retaining rings according to
- DIN 471
- DIN 983
- Construction in accordance with DIN 5254 form A
- Straight points
- With opening spring
- With clamping device
- Forged GEDORE chrome vanadium tempered steel
- Precision-machined, oil-hardened and tempered
- Black, with blue-dipped handles
Key features according to our expert
-
For min. shaft diameter: 3 mm
-
For max. shaft diameter: 10 mm
Specifications / All features
-
Brand:
GEDORE
-
41946343
-
EAN:
4010886670132
-
Supplier number:
GEDORE 6701380
- For min. shaft diameter
- 3 mm
- For max. shaft diameter
- 10 mm
- Overall length [mm]
- 140 mm
- Surface area
- painted black
- Standard
- DIN 5254 - form A
- Curing process
- oil-hardened and tempered
- Handle version
- dip-isolated
- Spark-free design
- Nein
- Point-ø
- 0.9 mm
- Joint types
- applied joint
- Shaft diameter [inch]
- 5/32-3/8
- Material
- Chrome-vanadium quenched and tempered steel
- Head length
- 40 mm
- Shaft diameter [mm]
- 45361
