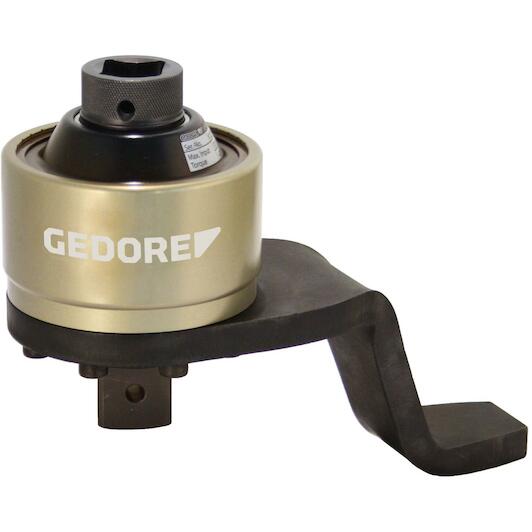

Scope of delivery DREMOPLUS ALU torque multiplier,With model-dependent, permanently integrated reaction arm in Z-shape or L-shape,Supplied in a sturdy transport case with foam insert,Factory test certificate and setting chart,Detailed technical information is available on request Product description Particularly suitable for Industry, construction sites, commercial vehicle and passenger car workshops, agricultural engineering, construction machinery Bridge, ship, aircraft, railway construction, refineries Machine building and plant engineering, maintenance Design Mechanical, manually operated torque multiplier for controlled tightening and loosening of screw connections With single-stage planetary gear system Housing made of high-quality aluminium Models with gear ratio 14, 15.5 Guaranteed accuracy tolerance better than +/- 3% Can be operated in combination with a torque spanner, 2 models with a range of max. 2000 Nm and max. 2800 Nm Model -Z with bent Z-shaped reaction arm made of Chrome-Vanadium steel Model -L with straight L-shaped reaction arm, with adjustable reaction square, made of light metal Output square with bore for use of impact spanners with locking pin and washer
Key features according to our expert
Max. tightening torque: 2000 Nm
Specifications / All features
Brand:
GEDORE
02143453
EAN:
4010886934456
Supplier number:
GEDORE 2653265
Max. tightening torque
2000 Nm
Backstop
No
Distance drive square - start of torque arm (min.)
100
Drive intake, square [inch].
3/4"
Input torque (max.) [nm].
580 Nm
Output tightening torque (max) [lbf-ft].
1500
Input torque (max) [lbf-ft].
430 lbf-ft
Transfer ratio
0.0444444444444444
Output torque (max.) [nm].
2000
Overall height without torque arm
131
Overall width without torque arm
88
Reaction arm version
Z-shape, curved
Drive mounting, square [metric]
20.0 mm
Drive square [inch]
1"
Distance drive square - end of torque arm (max)
150
Drive square [metric]
25 mm
Drive square
1"
Overall length [mm]
230 mm
