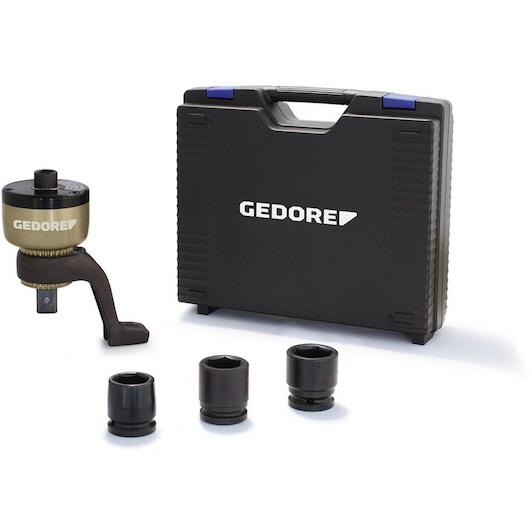

Scope of delivery
- DVV-13Z
- K 32 27
- K 32 30
- K 32 32
Product description
- Particularly suitable for industry, construction sites, commercial vehicle and passenger car workshops, agricultural engineering, bridge, ship, aircraft, railway construction, refineries
- Machine building and plant engineering, maintenance
- Model mechanical, manually operated torque multiplier for controlled tightening and loosening of screw connections
- With single-stage planetary gear system
- Housing made of high-quality aluminium, with bent Z-shaped torque arm made of chrome vanadium steel, optionally retrofittable with a straight L-shaped torque arm, with adjustable torque square, made of light metal
- Reproduction with a transmission ratio of 15, guaranteed accuracy tolerance better than +/- 3%
- Can be operated in combination with a torque spanner, 1 model with a maximum range of 1300 Nm
- The set contains three different socket spanners 3/4" SW 27, 30, 32 mm
- Output square with bore for using impact spanners with locking pin and washer
- In transport case with foam insert
